Specifications
Brand Name :
VDL
Model Number :
SNM6
Certification :
ISO 9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
300 , 000 pcs per month
Delivery Time :
30 days
Packaging Details :
5000 pcs each cartonwith dimension20 X 22 X 25 cm , 500 cartons to a 20 ft container
Material :
Stainless Steel
Property Class :
18-8
Hardness :
HRC 65
Finish :
Polishing
Specification :
M6
Panel Thickness :
0.06 inch
Description

Polished Hardware Nuts Bolts Sqaure Mounting Stainless Steel M6 Cage Nuts

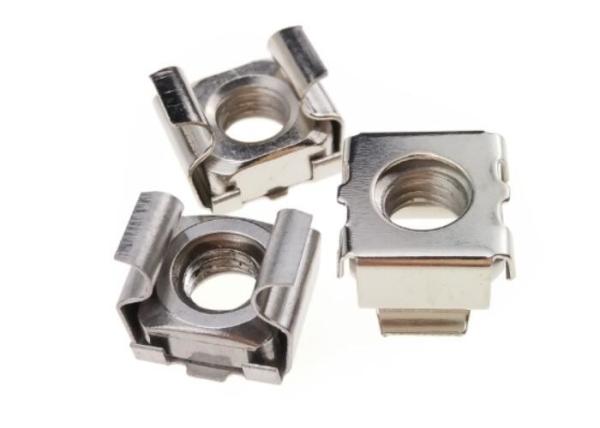

Cage nuts are also named captive nuts or caged nuts , it has a two wings around the square nut and square nuts with a threaded holes that provides locking for a bolt or a screw .

The wings of cage nuts will be inserted into square holes when compressed , in the most cases , the wings are made from spring steel that with good flexibility , the sizes for the spring steel clips decide the thickness of metal panel and the specifications of hole sizes to that the spring steel clips hold the nuts .

Polished Hardware Nuts Bolts Sqaure Mounting Stainless Steel M6 Cage Nuts

Rivet nut size A B N K P
#8-32 0.30-0.33 0.50-0.52 0.05-0.07 0.13 0.025-0.063
#10-24 0.30-0.33 0.50-0.52 0.05-0.07 0.16 0.064-0.100
#10-32 0.30-0.33 0.50-0.52 0.05-0.07 0.16 0.025-0.630
1/4-20 0.30-0.33 0.51-0.53 0.05-0.07 0.19 0.025-0.063
5/16-18 0.39-0.42 0.65-0.67 0.05-0.07 0.22 0.093-0.125
3/8-18 0.39-0.42 0.65-0.67 0.09-0.11 0.22 0.093-0.125
1/2-13 0.51-0.56 0.87-0.89 0.1-0.12 0.31 0.093-0.125

Unit : Inch

Cage nuts are made of carbon steel or stainless steel material and usually the wings are spring steel

Applications for Cage Nuts

★ Car and Trucks

★ railway

★ Aerospace

★ Vessels

★ Bus

★ Telecommunication

★ Machines

Features

★ Simple and practical design

★ Bright appearance

★ Easy to operate

★ Excellent Locking performance

★ High tensile strength

Package

Our packages are assorted and strong , we can arrange special packages according to your requirements , all Packed in Seaworthy or airworthy for Export .

We offer many specifications with metric for cage nuts and we accept customization also , if you are interesting in our cage nuts , please contact us by phone 86-769-82601418 or email us via group1@vedali.com .
