M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination
Specifications
Brand Name :
VDL
Model Number :
CHXSM610
Certification :
ISO 9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
500 , 000 pcs per month
Delivery Time :
30 days
Packaging Details :
1000 pcs each bag , 10 bags each carton with dimension 20 X 22 X 20 cm , 500 cartons to a 20 ft container
Material :
Carbon Steel
Hardness :
HRC35
Finish :
Zinc + Paint
Diameter :
M6
Length :
10
Drive :
Hex + Slot
Head :
Hex washer
Point :
Flat
Description

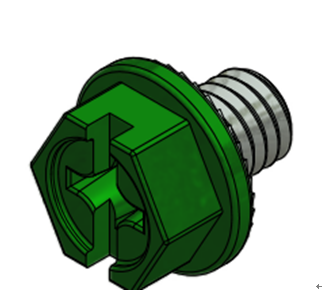

M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination

Serration under head design for hex washer head screw with slot combination , full machine threads with zinc plated and painted green head for good corrosion resistance and bright appearance .

SWRCH 1018 Carbon steel

Harden material

Serrated washer head

Zinc combined with paint head

8.8 property class

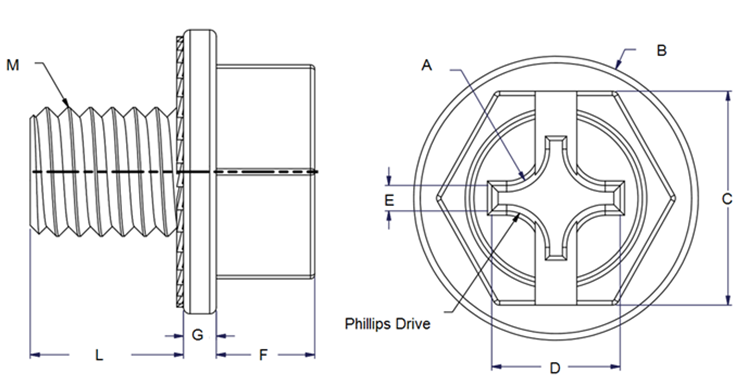

Specification

M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination

A 13
B R1.7
C 9.8
D 5.9
E 1.2
F 4.5
G 1.5
L 10
M M6

Note : all dimensions are millimeters

Material

Hex slot washer head screw is made from carbon steel with quenching and temper .

Chemical Elements for Screw

C Si Mn S P Cu Cr Ni Alt
0.16 0.04 0.66 0.007 0.02 NA NA NA 0.028

Physical Performance for Screw

Rel N/mm2 370
Rm N/mm2 495
A ( % ) 33.5
Reduction of areaZ ( % ) 66
Density g/cm^3 7.85
Tensile strength(σb/MPa 450

M6 Painted Hex Washer Serrated Head Machine Screw Steel Phillips Slot Combination

Blue zinc plated with paint RAL 6002 on head

Finishing Zinc
Head finishing Zinc and paint
Paint color Green RAL 6002
Zinc thickness 8 um
Paint thickness 10 um
Standard RoHS ( 2002/95-EC )

Advantages for Screws

● Harden material with grade 8.8

● Perfect corrosion resistance with zinc and paint surface

● RoHS meet for environment

● High tensile strength for heavy duty design

● Multiple drive design for various screwdriver bits

● Bright appearance for decorative purpose

● No any burrs without scratch

● Strict dimensions for convenient operation

● Self locking performance with serration under head
