Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings
Specifications
Brand Name :
VDL
Model Number :
BH1615
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , paypal
Supply Ability :
300 , 000 Pcs per month
Delivery Time :
30 days
Packaging Details :
500 pcs in bulk each carton with dimension 20 X 22 X 25 cm , 500 cartons to a 20 ft container
Material :
Brass
Color :
Yellow
Hardness :
HV65
Max Wokring Temperature :
300°C
Bearing Rotary ( sliding ) speed :
0.4m / s
Appling lubricant speed :
5 m / s
Max. Load :
100 N/mm2
Specification :
Metric
Description

Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings

Brass flanged head self-lubricant inlaid bearing bushing is also known as oilless sliding bearing bushing ,do not need to apply lubricant oil during operation ,.the material is made up of brass and solid lubricant , solid lubricant is absorbed by brass bearing bushing body when bearings are put into it and lubricant will reduce friction that from bearing .

Brass flanged head self-lubricant inlaid bearing bushing is special designed for shaft bearing with light and heavy duty load .

Material

Flanged head self-lubricant inlaid bearing bushing is made of brass ZCuPb30

Technical data

Material ZCuPb30
Hardness HRC 25
Working temperature 300°C
Bearing Rotary ( sliding ) speed 0.4m/s
Appling lubricant speed 5m/s
Load 100 N/mm2
Friction 0.18

Characteristics

Flanged head self-lubricant bearing bushings with more advantages compared to traditional bearings

Perfect Self-lubricant

Flanged head self-lubricant bearing bushings are not required extra lubricant during

operation compared to traditional bearing bushings and reduce much friction .

Heavy-duty

Harden metal material with perfect lubricant

Wear resistance

Flanged head self-lubricant bearing bushings can reduce much friction when bearings are working .

Resistant high temperature

Flanged head self-lubricant bearing bushings can work well in 300°C .

Standard Specification

Generally , specificationsr for self-lubricant sliding bearings from 12 to 50 and the length is from 8 to 80 mm .

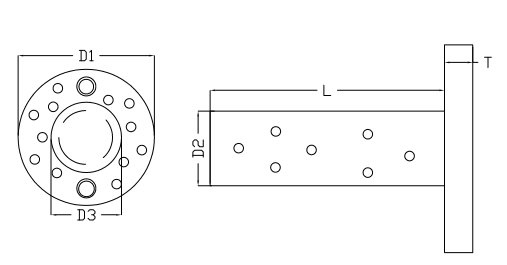

Special Plain Bearing Bush Flanged Head Self Lubricating Bronze Bushings

D3 D2 D1 L
8 10 12 15 18 20 25 30 35 40 45 50 60 70 80
8 12 27 ● ● ● ● 　 　 　 　 　 　 　 　 　 　 　
10 14 29 ● ● ● ● ● 　 　 　 　 　 　 　 　 　 　
12 18 36 　 　 ● ● ● ● 　 　 　 　 　 　 　 　 　
13 19 37 　 　 ● ● ● ● 　 　 　 　 　 　 　 　 　
14 20 40 　 　 ● ● ● ● 　 　 　 　 　 　 　 　 　
15 21 40 　 　 ● ● ● ● ● 　 　 　 　 　 　 　 　
16 22 40 　 　 ● ● ● ● ● 　 　 　 　 　 　 　 　
18 24 45 　 　 　 　 ● ● ● ● ● ● 　 　 　 　 　
20 28 49 　 　 　 　 　 ● ● ● ● ● 　 　 　 　 　
22 32 50 　 　 　 　 　 　 ● ● ● ● ● ● 　 　 　
25 33 54 　 　 　 　 　 　 　 ● ● ● ● ● 　 　 　
30 38 63 　 　 　 　 　 　 　 ● ● ● ● ● ● ● ●
35 45 74 　 　 　 　 　 　 　 　 　 　 　 ● ● ● ●
40 50 82 　 　 　 　 　 　 　 　 　 　 　 　 ● ● ●
45 55 87 　 　 　 　 　 　 　 　 　 　 　 　 　 ● ●
50 60 90 　 　 　 　 　 　 　 　 　 　 　 　 　 ● ●

Note

1 . The surface finish for self-lubricant bearing is 1.6

2 . Tolerances Grade of mating sleeve for self-lubricant bearing is H7.

3 . Tolerance for different lengths

Length Tolerance
4~12 ±0.25
12~60 ±0.5
60~80 ±0.75

Applying bearing shaft diameter

Different diameters of bearing bushings for different bearing shaft diameters , normally, bearing shaft diameters are keeping same as inside diameters of bearing bushings you can find following standard assembly .

Bearing bushing ID Bearing bushing OD Applied bearing shaft diameter
6 10 6
8 12 8
10 14 10
12 18 12
13 19 13
14 20 14
15 21 15
16 22 16
18 24 18
20 28 20
22 32 22
25 33 25
30 38 30
35 45 35
40 50 40
45 55 45
50 60 50

Note

Accuracy of inside hole for bearing bushings up to H7 at least so that bearing shafts can be inserted holes smoothly .

Applications

★ Truck and Car

★ Train

★ Engineering machines

★ Vessel

★ Aerospace

★ Sport equipments

★ Airplane

Competitive Advantages

※ Top quality with cheap price

※ Strict dimensions control and high precision

※ All are eco-friendly

※ Quick delivery

※ Perfect sales-after service

Besides Self -lubricant Inlaid Sliding Bearing Bushing , we also manufacture stainless steel shaft bushings ,Brass shaft bushings ,Carbon steel shaft bushings and Aluminum shaft bushings . If you are interesting in our bushings , please call us 86-769-82601418 or email group1@vedali.com , Thanks .
