Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener
Specifications
Brand Name :
VDL
Model Number :
BBS1001
Certification :
ISO 9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
500 ,000 pcs per month
Delivery Time :
30 days
Packaging Details :
10000 pcs each carton with dimension20 X 22 X 20 cm , 500 cartons to a 2o ft container
Material :
Carbon Steel
Property Class :
4.8
Hardness :
HRC 20
Finish :
Nickel
Head :
Truss
Diameter :
M2 -M8
Length :
5 - 80
Drive :
Slot / Phillips
Description

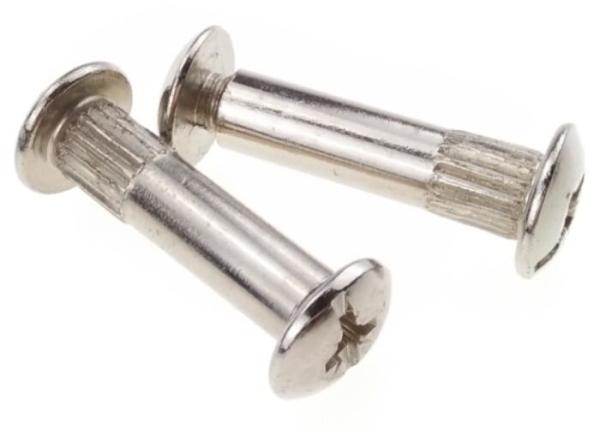

Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener

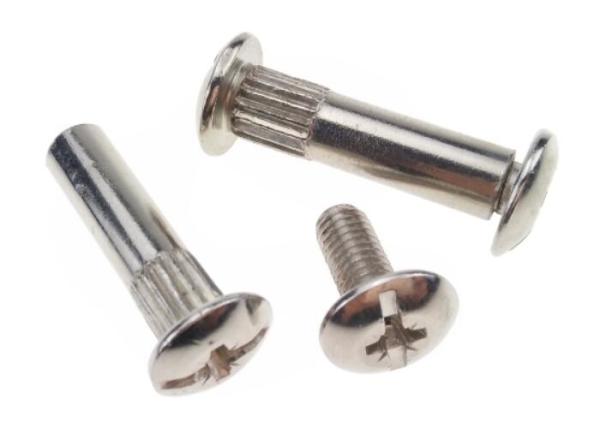

Binding Screw is combined with a male screw and a female screw and a truss head with slot or phillips drive for mating screw and flat head for male screw ; Normally , depth for female screw is same as the length of threaded length for mating screw , but sometimes, the threaded length for male screw is longer than the hole depth for secure more files .

Binding Screw is also known as Chicago Screw , Screw Post , Binding Post , Sex bolts

We recommend you measure your file thickness first to confirm the length of post so that binding screws can be operated smoothly .

Specificatiion

Normal specification for binding screws are from M2 to M8 based on standard .

Male thread diameter : M2 to M8

Male thread length : 10 to 50

Female overall length : 15 to 50

Finishing : Zinc

Material : Carbon Steel

More specification as following

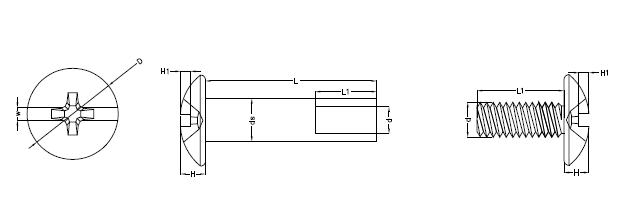

Carbon Steel Truss Head Binding Post Screws for Book M6 Nickel Fastener

d D H d1
M2 4.5 1.2 4
M2.5 5.7 1.5 4
M3 6.9 1.9 5
M3.5 8.1 2.2 5.5
M4 9.4 2.5 6
M5 11.8 2.8 7
M6 14 3.7 8
M8 17.8 4.8 10

Note : " L1 " is cnfirmed according to your request .

Material

We provide multiply materials for binding screws as aluminum , Carbon steel ,Stainless Steel and Plastic for various uses .

Application

Binding Screw are used to many fields like book binding industry ,finance fields and Medical area and so on .

Finish

We offer different finish as zinc , nickel ,brass ,Tin and black oxide for binding screws .

Features

● Great usefulness and adaptability

● Versatility

● Perfect corrosion resistance

● Assorted specification

● Harden Material

We offer many specifications for binding screws and we accept customization also , if you are interesting in our binding screws , please contact us by phone 86-769-82601418 or email us via group1@vedali.com .
