Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic
Specifications
Brand Name :
VDL
Model Number :
CSS0415
Certification :
ISO 9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
1000 , 000 pcs per month
Delivery Time :
30 days
Packaging Details :
10000 pcs each carton with dimension 20 X 22 X 25 cm , 500 cartons to a 20 ft container
Material :
Carbon Steel
Property Class :
6.8
Hardness :
HRC 35
Finish :
Zinc
Drive :
PH
Head :
Flat
Diameter :
M4
Length :
15
Description

Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic

M4X15 flat head screw with angle 90 degree countersunk for concave socket , Philips drive with specification 2 is driven by a screwdriver bit .

Technical data

Thread style : machine threads

Coarse / fine threads : Fine

Material : SWRCH 1010

Case hardness : HV 220

Core hardness : HV150

Torque : 8 Kgf-cm

Property class : 4.8

Quenched and Tempered : NA

Free Chrome Zinc Steel Flat Head Screws Tapping M3.5 Phillips Drive for Plastic

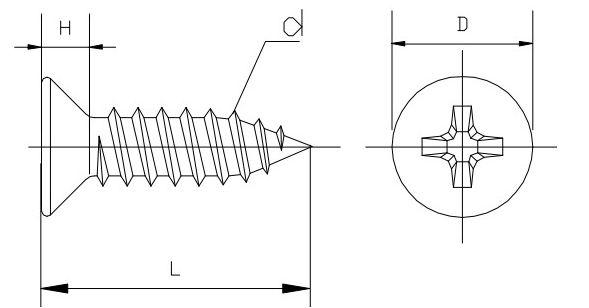

Basic Specification

Thread diameter d M4
Full length L 15
Head height H 2.2
Head width D 7.5

Note : all dimensions are millimeters

Material

Flat head screw is made of carbon steel SWRCH 1010 , this material is eco-friendly and with good ductility and not easy to be deformed .

Finishing

Finishing Zinc
Standard RoHS ( 2002/95-EC )
Thickness 8 um
Color Blue
Chrom free 3+

Chemical elements

C Si Mn S P Alt
0.09 0.03 0.3 0.008 0.013 0.029

Physical performance

Rel N/mm2 255
Rm N/mm2 365
A ( % ) 41
Z ( % ) 69.5
Density g/cm^3 7.85
Tensile strength(σb/MPa 410

Advantages

◎ Good ductility

◎ Torsional resistance

◎ High tensile strength

◎ Corrosion resistance

◎ Long service

◎ Hard material

Packing data for shipment

Model No. size Qty/box Weight /box/kg
FHS0415 M4x15 1000 1.5

Note : we accept customized package .

Besides , we provide more screws as following

Machine Screws

Self Tapping Screws

Wood Screws

Self Drilling Screws

Deck Screws

Chipboard Screws

Thread Rolling Screws

Thread Forming Screws

PT Screws

Stainless Steel Screws

Bi-metal Screws

Distance Screws

Brass Screws

Aluminum Screws
