M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings
Specifications
Brand Name :
VDL
Model Number :
MP1003
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
100 , 000 sets per month
Delivery Time :
30 days
Packaging Details :
1 piece to a bag , 200 bags to a carton with dimension 15 X 10 X 10 cm , 5000 cartons to a 20 ft container
Material :
Aluminum
Property Class :
5052
Finish :
Oxidation
Color :
Black
Roughness :
Ra2.0
Length :
50
Max Diameter :
12
Tolerance :
ISO 2768
Description

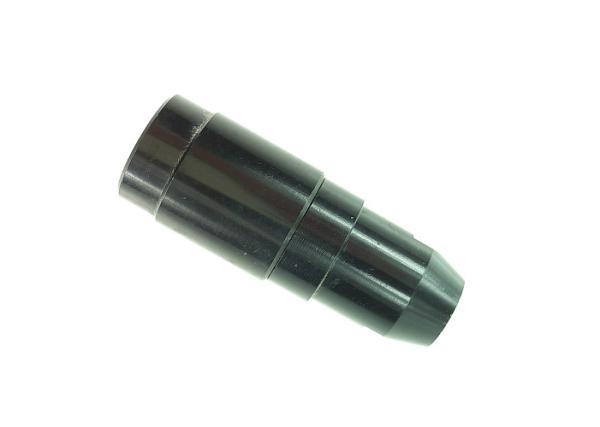

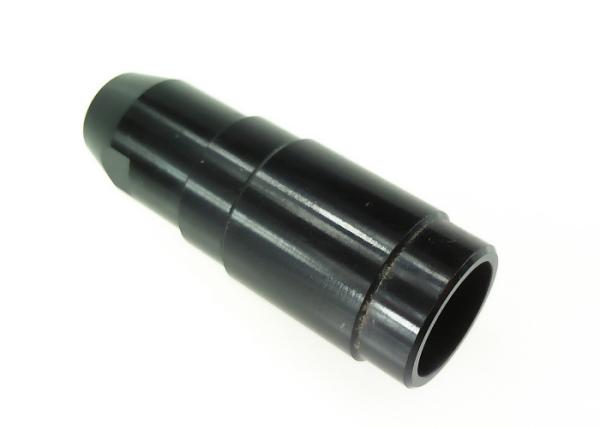

M10 Black Oxide CNC Turned Parts Aluminum for Medical Equipments Fittings

Aluminum gastroscope unit joint kits are comprised of bushing ,header and joint pipe , these parts are assembly together as a full gastroscope connector , at the end of gastroscope has a threaded section for fixing into other pieces for holding unit joint kits .

Material for gastroscope unit joint kits turned part

Gastroscope unit joint kits turned part is made of aluminum that meets light weight but with enough tensile strength requirements .

Cu Zn Mg Fe Mn Cr Si Al
0.3 0.25 1 0.7 0.15 0.1 0.5 balance

Chemical element for unit joint kits

Dimensions for gastroscope unit joint kits turned part

Bushing
Bushing length 25
Bushing hole 15
Bushing diameter 19.5
Thread for bushing M10
Header
Length 35
Diameter 18
Hole diameter 10
Joint pipe
Length 60
Diameter 19.5
Hole diameter 10
Thread M10

Unit : mm

Standard for unspecified tolerances

Tolerances for gastroscope unit joint kits turned part normally are +/-0.05 mm and unspecified tolerances are based on ISO 2768-m with f level .

Level 0.5-0.3 3-6 6-30 30-120 120-400 400-1000 1000-2000 2000-40000
f ±0.05 ±0.05 ±0.1 ±0.15 ±0.2 ±0.3 ±0.5 -

Linear tolerances

Level 0.5-0.3 3-6 Above 6
f ±0.2 ±0.5 ±1

Radius and chamfer tolerances

Level 0-10 10-50 50-120 120-400 above 400
f ±1° ±0°30' ±0°20' ±0°10' ±5°

Angle tolerances

Finish for gastroscope unit joint kits turned part

Black oxidation with bright surface .

Mechanical property for gastroscope unit joint kits turned part

Tensile strength σb (MPa) 310
Yield Strength σs (MPa) 276
Elongation δ 0.2 (%) 12
Reduction of area ψ (%) 25

Physical performance for gastroscope unit joint kits turned part

Specific heat capacity(0~100℃,KJ·kg-1K-1) 896
Heat conductivity(W·m-1·K-1) 43
RResistivity(20℃,10-6Ω·m) 0.059
Density g/cm3) 2.73

Characteristics for gastroscope unit joint kits turned part

1 , Strict dimensions with small tolerances

2 , Black oxidation with RoHS comply

3 , No burrs and scratch

4 , Harden material

5 , Corrosion resistant

We have more than ten years experience on customized turned parts with CNC and Auto lathe parts , products are used to different fields in industry , if you have any interesting on our product , please contact us soon .
