Specifications
Brand Name :
VDL
Model Number :
SP1015
Certification :
ISO
Place of Origin :
China
Supply Ability :
1100 . 000 pcs
Delivery Time :
30 days
Packaging Details :
a each in bag 10 bags to a carton with dimension 15 X15 X 10 cm , 10000 pcs to a 20 ft container
MOQ :
Negotiation
Price :
Negotiation
Material :
Carbon Steel
Finish :
Zinc
Color :
Silver
Tolerance :
ISO 2768
Length :
110
Width :
20
Description

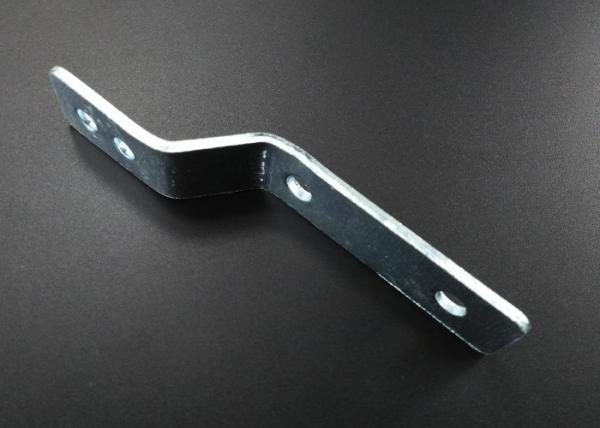

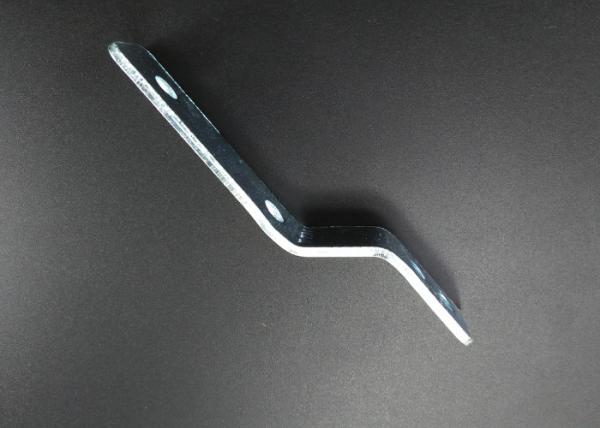

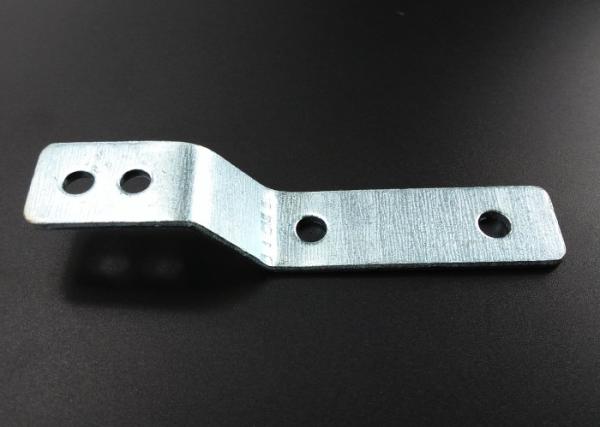

High Tensile Strength Metal Stamping Parts , Carbon Steel Elevator Connecting Beam

What is Elevator connecting beam stamping parts ?

Elevator connecting beam stamping parts are made of high tensile strength carbon steel with free chrome that meet request of “ RoHS “ standard . Connecting beam stamping parts are made in a steel panel and bended to upper direction and lower direction with distance and two holes are placed on both direction panels .

What is material for elevator connecting beam stamping parts ?

Carbon steel SWRCH 1018 with harden treatment .

What is finish for elevator connecting beam stamping parts ?

Blue zinc with chrome free .

What are the sizes for elevator connecting beam stamping parts ?

Length mm 110
Width mm 20
Thickness 2.5
Height mm 20
Tolerance mm +/-0.1

All dimensions are millimeter

What are tolerances for elevator connecting stamping parts ?

Normal dimensions are based on +/-0.1 mm tolerance , and refer to ISO 2768 M for unspecified sizes as following

Normal Size Thickness
FM TO FM TO m
0.5 3 ­— 1 ±0.10
1 3 ±0.20
3 6 — 1 ±0.15
1 4 ±0.30
4 — ±0.40
6 30 — 1 ±0.20
1 4 ±0.40
4 — ±0.60
30 120 — 1 ±0.30
1 4 ±0.55
4 — ±0.80
120 400 — 1 ±0.35
1 4 ±0.70
4 — ±1.05
400 1000 — 1 ±0.50
1 4 ±1.00
4 — ±1.45
1000 2000 — 1 ±0.65
1 4 ±1.30
4 — ±2.00
2000 4000 — 1 ±1.00
1 4 ±2.00
4 — ±2.60

What finish for elevator connecting stamping parts ?

They are plated in blue zinc free chrome .

What characteristics for elevator stamping parts ?

Simple design

Elevator connecting beam stamping parts just are bended from a steel panel with several holes for screw assembly but are quite practicable .

No burrs and no sharp edges

All edges are chamfered and remove all burrs during production .

Hard material with high tensile strength

Elevator connecting beam stamping parts are harden in production to improve strength .

Easy to be operated

Just secure connecting beam stamping parts in screw or bolt with nuts .

Corrosion resistance for a long time

Elevator connecting beam stamping parts are plated in blue zinc with eco-friendly and with 48 hours salty spray testing .

Environment friendly

Elevator connecting beam stamping parts are meet request of “ RoHS “ free chrome .

What packing for elevator connecting stamping parts ?

Normally , pack in bulk with 100 pcs each bag , customized packages are available for us as well .
