Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer
Specifications
Brand Name :
VDL
Model Number :
PIM1003
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union , Paypal
Supply Ability :
500 , 000 pcs per month
Delivery Time :
30 days
Packaging Details :
200 pcs each bag , 10 bags each carton with dimension 20 X 22 X 25 cm , 500 cartons to a 20 ft container
Material :
Plastic
Color :
White
Fire Resistance :
UL 94V-2
Length :
110
Diameter :
20
Environmental Standard :
RoHS
Description

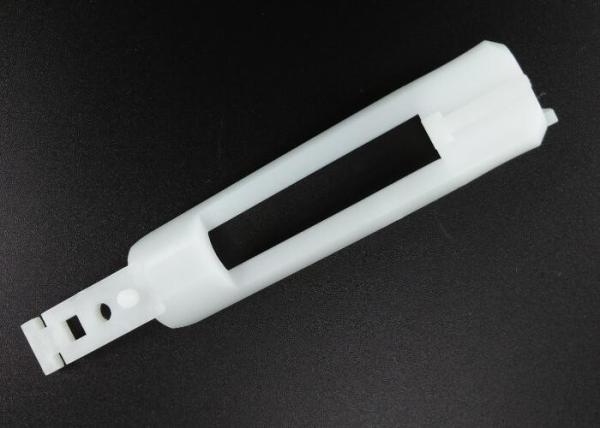

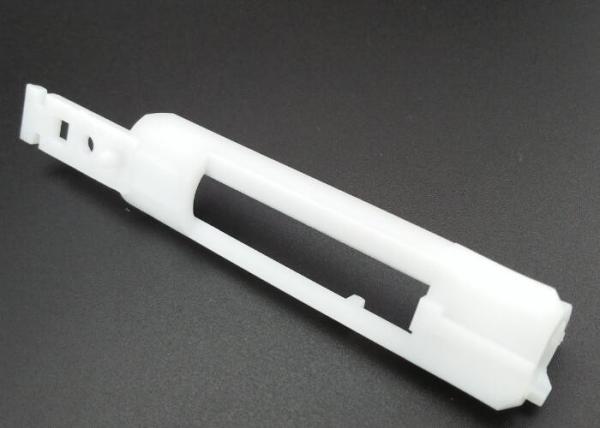

Fire Resistant Plastic Injection Molding Products , 110mm Oyster White Plastic Reducer

Plastic Reducer Injection Molding part is a special design for gear that is used to home appliances , plastic reducer is made from POM that is one of engineering materials with perfect insulation .

Plastic injection molding reducer has a threaded hole end with fixing clip beams that supports threaded rod or screw to secure pieces .

Material for Plastic Reducer for Gear Injection Molding

POM (Polarizing Optical Microscope )

Specification for Plastic Reducer for Gear Injection Molding

Length : 95 mm

Diameter : 18 mm

Threaded diameter : M8

Note : this reducer for gear injection molding part is customized according to special construction .

Tolerances for Plastic Reducer for Gear Injection Molding

0-3 0.2
3-6 0.24
6-10 0.28
10-14 0.32
14-18 0.38
18-24 0.44
24-30 0.5
30-40 0.56
40-50 0.64
50-65 0.74
65-80 0.86
80-100 1

Note :

1 , all are in mm and based on “ + “ “ –”tolerance

2 , for unspecified tolerance , based on ISO 2768-m with grade MT 7

Mechanical Property for Plastic Reducer for Gear Injection Molding

Tensile strength MPa 70
Elongation at break % 40
Bending strength MPa 90
Modulus of elasticity for tension MPa 3160
modulus of elasticity for bending MPa 2880
Compressive strength MPa 127
Shearing strength MPa 67
Notched Impact Strength(J/m) 76
HR hardness 94
Fatigue MPa 35

Thermal Performance for Plastic Reducer for Gear Injection Molding

Heat distortion Temperature(1.82MPa)℃ 110
Normal working temperature ℃ 80
Working temperature arrange ℃ -40℃～90℃
Coefficient of linear expansion (×10K) 7.5
Heat conduction W/(m·K) 0.23

Physical Performance for Plastic Reducer for Gear Injection Molding

Specific volume resistance Ω·cm 10
Specific inductive capacity(10Hz) 3.8
Dielectric loss tangent (10Hz) 0.005
Dielectric strength(kV/mm) 20
Arc-resistances 220

Notes for Plastic Reducer for Gear Injection Molding

POM plastic Reducer Injection Molding part are easy to be cracked and pulverized outside long-term .

Don’t put POM plastic Reducer Injection Molding parts under temperature over 100℃

Don’t put POM plastic Reducer Injection Molding parts under circumstance with alkali and oxidant .
