Specifications
Brand Name :
VDL
Certification :
ISO 9001
Place of Origin :
China
MOQ :
500 pcs
Price :
USD 0.03 to 0.2 each piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 tons each month
Delivery Time :
10 days
Packaging Details :
200 pcs each bag , 5 bags each carton , 200 cartons each pallet , carton dimension is 25 X 20 X 15 cm
Material :
Metal Steel
Finish :
Zinc
Screw Length :
55
Diameter :
5.0
Plug :
Plastic
Plug length :
50
Description

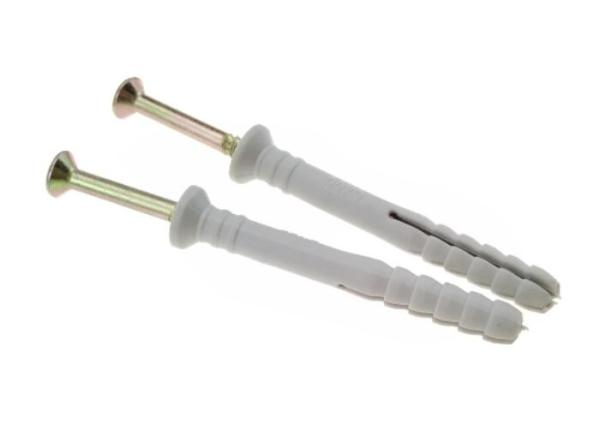

50 mm Wall Plug Screws for Fixing Concrete Metal Zinc Screws Nylon Plug

Wall plug screws are comprised of two sections , one is plastic plug and another is metal screws , a metal screw is inserted into plastic plug before installation .

Normally , plastic plug has a split slot on the both sides that 1/3 length close to end ; metal screws with barb type threads , this design make screws can not be driven out when screws are hammered into plug .

Plug screws can provide good fixing performance when plastic plug is hammered into concrete of wall , so , it is a good choice for hanging items .

50 mm Wall Plug Screws For Fixing / Concrete Metal Zinc Screws Nylon Plug screw threads 4.0
screw length 　55
Pitch 　1.0
Plug length 　50
Plug diameter 　5
Material 　Metal plastic Torque 　3.5
Finish 　ZINC Drive 　PH 2

More specifications for plug screws , normal diameter dimensions from 5.0 to 10.0 and length can be up to 200 mm .

Plug dia. Plug length Plug Length Screw dia. Screws length
5 30 30 3.5 35
5 40 40 3.5 45
5 50 50 3.5 55
6 40 40 4 45
6 50 50 4 55
6 60 60 4 65
6 80 80 4 85
8 60 60 5 65
8 80 80 5 85
8 100 100 5 105
8 120 120 5 125
10 80 80 6 85
10 100 100 6 105

Drill holes before install plug screws , different diameter and length for screw and plug different hole requests .

Diameter Drill Hole Drill depth
5 5 13
5 5 14
5 5 15
6 6 1
6 6 21
6 6 24
6 6 32
8 8 45
8 8 48
8 8 62
8 8 75
10 10 71
10 10 90

Wall plug screws are designed for load items on wall , different diameter for plug screws different load as following showed .

Plug dia. Screw dia. Pullout
Load kgs
5 3.5 100
5 3.5 100
5 3.5 100
6 4 120
6 4 120
6 4 120
6 4 120
8 5 170
8 5 170
8 5 170
8 5 170
10 6 300
10 6 300

RFQ

Q.How long I can get samples for approval before placing order ?

A. Normally one week for custom screws , and we can deliver samples within 24 hours for standard screws or stock once received your request .

Q How many days dispatch goods after placed orders ?

A Generally , one week for popular screws under 2 tons , final delivery is subject to requests on screws , packing and or other deamnds from you .

Q.What are your popular payement menthods ?

A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .

Q. What products you produce ?

A. We manufacture various hardwares like fasteners screws , nuts , bolts , pins , rivets and custom metal stamping parts and plastic injeciton molding products .
