stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh
stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
100m2
Price :
US $12.5-35.65 / Square Meters
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000m2/day
Delivery Time :
10-15days after confirming the order
Packaging Details :
(1)bundles or as request (2)Inside the roll with "paper tube" to reduce the pressure while loading. Then wrapped with "plastic film" as well as the "woven bag" on the finished roll. Final loaded in the strong wooden case or as customers' requirement. (3)Th
material :
304 ,316 ,316L
cable type :
7*7 or 7*9
wire dia :
1.5mm,2.0mm,3.0mm
type :
weave
certificated :
SGS
mesh hole :
50*50mm
width :
1-3m
length :
50m or 100m/roll
weight :
1kgs/m2
sample :
free
Description

stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh

Material:stainless steel ,304,316 (L)
Rope:stainless steel 7 x 7 ,7 x 19,1x19,1x7....
Rope wire diameter :1.5mm,2.0mm,3.0mm,4.0mm etc
Standard Mesh Opening: 2"x2", 3"x3", 4"x4",etc
Type: 1. knotted mesh;
Type:2 .Ferruled mesh

rope mesh size
material
wide
length
20mm-80mm
SUS304
0.5-2m
1-30m
20mm-80mm
SUS316
0.5-2m
1-30m

stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh

Specification

Item Cable construction Steel wire rope diameter Mesh opening
inch mm inch mm
32120 7 x 19 1/8 3.2 4.7 x 4.7 120 x 120
32102 7 x 19 1/8 3.2 4 x 4 102 x 102
3290 7 x 19 1/8 3.2 3.6 x 3.6 90 x 90
3276 7 x 19 1/8 3.2 3 x 3 76 x 76
3251 7 x 19 1/8 3.2 2 x 2 51 x 51
24102 7 x 7 3/32 2.4 4 x 4 102 x 102
2490 7 x 7 3/32 2.4 3.6 x 3.6 90 x 90
2476 7 x 7 3/32 2.4 3 x 3 76 x 76
2460 7 x 7 3/32 2.4 2.4 x 2.4 60 x 60
2451 7 x 7 3/32 2.4 2 x 2 51 x 51
2076 7 x 7 5/64 2 3 x 3 76 x 76
2060 7 x 7 5/64 2 2.4 x 2.4 60 x 60
2051 7 x 7 5/64 2 2 x 2 51 x 51
2038 7 x 7 5/64 2 1.5 x 1.5 38 x 38
1676 7 x 7 1/16 1.6 3 x 3 76 x 76
1651 7 x 7 1/16 1.6 2 x 2 51 x 51
1638 7 x 7 1/16 1.6 1.5 x 1.5 38 x 38
1630 7 x 7 1/16 1.6 1.2 x 1.5 30 x 30
1625 7 x 7 1/16 1.6 1 x 1 25.4 x 25.4
1251 7 x 7 3/64 1.2 2 x 2 51 x 51
1238 7 x 7 3/64 1.2 1.5 x 1.5 38 x 38
1230 7 x 7 3/64 1.2 1.2 x 1.2 30 x 30
1225 7 x 7 3/64 1.2 1 x 1 25.4 x 25.4
1220 7 x 7 3/64 1.2 0.8 x 0.8 20x 20

Kontted mesh is a kind of plain weave, each wrap wire rope crosses alternately above and below each weft wire rope, warp and weft wire ropes generally have the same diameter.

Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh

specification

wire rope construction:
7*7(3mm less rope diameter),
7*19(3mm and 3mm less rope diameter),
1*19(0.8mm less rope diameter)
Mesh constructure opening:150*260mm,120*208mm,100*173mm,90*156mm,80*139mm,70*121mm,
60*104mm,50*87mm,40*69mm
stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh

The application of stainless steel cable mesh

1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

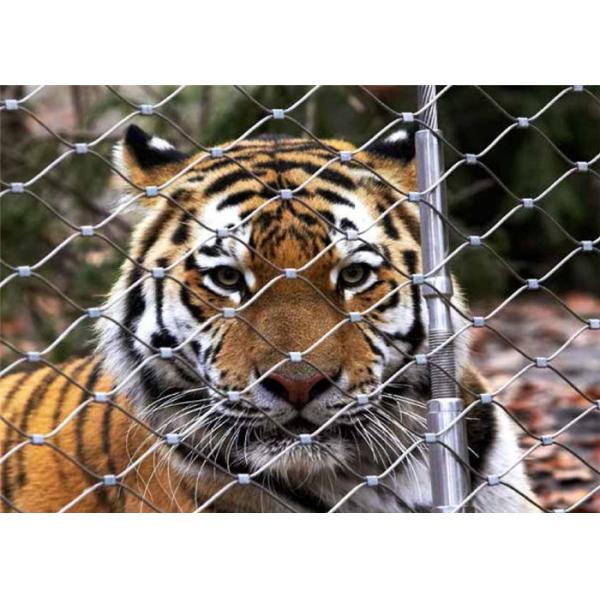

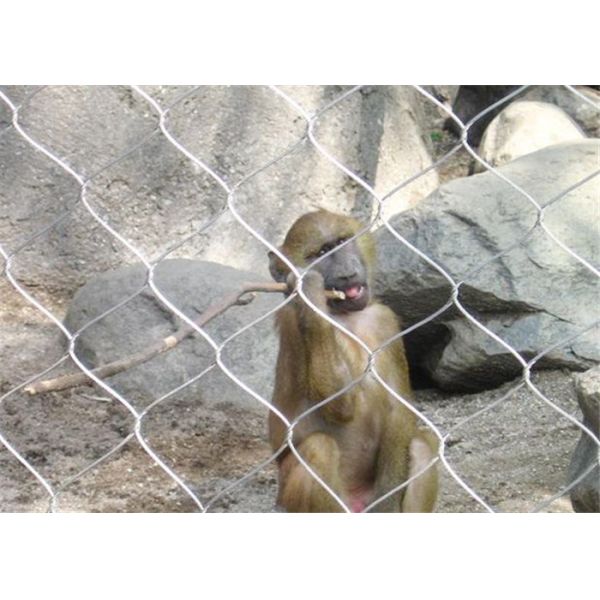

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh
Packaging & Shipping

It is about 15 days after receiving the payment advance and it is also up to the quantity.

30% of the payment in advance by T/T,the balance against the copy of the B/L.

Shipping Way: usually by plan

stainless steel rope mesh/cable mesh/stainless steel cable mesh/stainless steel cable/stainless steel wire rope mesh

Our Services

* Inquiry and consulting support.

* Sample testing support.

*Offering one-to-one service

* View our Factory.

*Providing photos of every process

*Training how to instal the product
