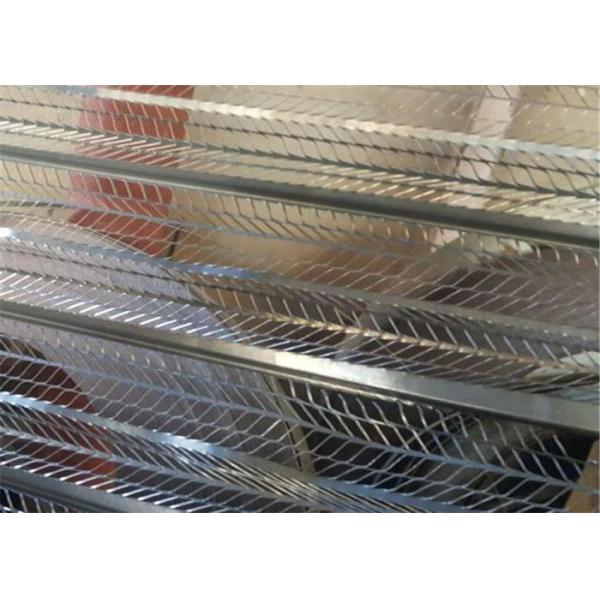

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath
rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath
rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath
rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath
Specifications
Brand Name :
SS
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
US $6-10 / Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
500pcs/pallet or according to customer's requirement.
material :
galvanized
thickness :
0.3mm - 0.5mm
Rib Distance :
100mm, 150mm,75mm
Width x length :
610 x 2440 mm
application :
construction,building
Reinforced spacing :
150mm
certificated :
SGS
sample :
free
weight :
0.4-0.8kgs/m2
hole size :
16*11mm, 7*11mm
Description

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lathe/metal lath sheets/galvanized metal mesh lath

Materials: Hot-dip galvanized sheet, stainless steel sheet, etc.
Used For: Widely used as a plaster backing on ceilings, walls and stud partitions. Rib Lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face.

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath

5 Rib 8 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.30 150 1.31 610 X 2440
0.35 150 1.53 610 X 2440
0.40 150 1.75 610 X 2440
0.45 150 1.96 610 X 2440
0.5 150 2.17 610 X 2440

9 Rib 4 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.30 75 1.89 610 X 2440
0.35 75 2.28 610 X 2440
0.40 75 2.53 610 X 2440
0.45 75 2.84 610 X 2440
0.5 75 3.15 610 X 2440
7 Rib 8 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.30 100 1.79 610 X 2440
0.35 100 2.09 610 X 2440
0.40 100 2.38 610 X 2440
0.45 100 2.68 610 X 2440
0.5 100 2.98 610 X 2440

High rib lath

Because its meshes and U patterns,it has better antistress capability and forming flexibility than normal metal lath. This product has excellent engineering quality,construction security and widely used in tunnels bridges,valve basement systerms,sewage systerms, subways,retaining walls,nuclear power plants,shipyards,water poois and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork.

Application:

1).Construction formwork mesh has very good engineering quality and construction security;

2).Construction formwork mesh as the concrete permanent assembly
free sheet is much convenient for engineering design and processing;

3).Construction formwork mesh is widely used in tunnels,bridges and valve system and so on
to make the process of construction much more fast and stable.

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath

Material thickness/mm Sw×Lw/mm Rib height/mm Rib distance/mm Weight/kg/m2 Width/mm
0.30 12×8 5 100 1.2 610
0.35 12×8 5 100 1.4 610
0.40 12×8 5 100 1.6 610
0.30 12×8 8 100 1.2 610
0.35 12×8 8 100 1.4 610
0.40 12×8 8 100 1.6 610
0.30 3.5×13 4 60 1.27 610
0.35 3.5×13 4 60 1.49 610
0.40 3.5×13 4 60 1.70 610
0.30 3.5×13 4 75 1.27 750
0.35 3.5×13 4 75 1.49 750
0.40 3.5×13 4 75 1.70 750
0.35 20×9 8 75 1.00 610
0.40 20×9 8 75 1.13 610
0.45 20×9 8 75 1.27 610
0.30 1611 8 150 0.88 610

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath

Packing & delivery time

Packaging & Shipping

500pcs or 600pcs or 750pcs per pallet, pallet with plastic film and steel belt.

Also could do as customers' requirment.

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath
