Military Coiled Security Barbed Wire Dispenser Font Free Off Road , Spiral Concertina Razor Wire
Military Coiled Security Barbed Wire Dispenser Font Free Off Road , Spiral Concertina Razor Wire
Specifications
Brand Name :
SS
Place of Origin :
CHINA
MOQ :
1 tons/ton
Price :
US $300-600 / Tons
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons/ton per week
Delivery Time :
10-15days after confirming the order
Packaging Details :
Barbed wire packaging is Plastic inside and hessian outside or plastic inside and waving bag outside. 1)in nude 2)in iron axletree 3)in wood axletree;
material :
galvanized
type :
twist
wire dia :
12*14 Gauge
barbed distance :
7.5-15cm
weight :
8-25kgs/roll
certificated :
SGS
application :
used as barrier for lawn
barbed length :
10mm-65mm
sample :
free
name :
barbed wire
Description

1.Material: low carbon steel wire

2.Surface treatment: Electro galvanized,Hot dipped galvanized, PVC coated

3.PVC Color: Green, dark green, blue, yellow or other colors as you request.

4.Strand: single & double

5.Barb distance:75mm---150mm

6.Barb length:15mm---30mm

Military Coiled Security Barbed Wire Dispenser Font Free Off Road , Spiral Concertina Razor Wire

Gauge of Approximate Length per Kilo in Meter
Strand and Barb in B.W.G. Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.759 7.27 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.719 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.562
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.659 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.507
15-1/2x15-1/2 15.3491 17.1144 18.406 19.3386

Application: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape

common specification:

Barbed wire specifications
Type Wire gauge(SWG) Barb distance(cm) Barb length(cm)

Electric galvanized barbed wire,

hot dipped zinc plating barbed wire

10#*12#

12#*12#

12#*14#

14#*14#

14#*16#

16#*16#

16#*18#

7.5-15

1.5-3

Pvc coated barbed wire;

Pe barbed wire

Before coating: 1.0mm-3.5mm,

BWG11#-20#, SWG 11#-20#

After coating 1.4mm-4.0mm,

BWG8#-17# SWG8#-17#

7.5-15

1.5-3
Pvc/PE coating thickness: 0.4mm-0.6mm, different colors or length are available at customers request

barbed wire information:

wire Gauge: 16#-12#

Barb Wire Gauge: 16#-12#

Barbed length:1-3cm

Barbed spacing:7.5-15cm

Weight:25kg,50kg

Weaving way: Twist, standard

Surface finished: Electro galvanized,Hot dipped galvanized,PVC coated

Weight of packing in coil: 25kg/coil,50kg/coil as standard.

Military Coiled Security Barbed Wire Dispenser Font Free Off Road , Spiral Concertina Razor Wire

Barbed Wire Features & Advantage:
1. Anti weather, anti corrosion, anti aging with long service life
2. Beautiful and durable
3. A role of deterrence, can be used as fence
4. Easy to install
5. Economical and practical
6. Professional manufacturer, have been specializing in this field for more than 20 years

The normal size is as follows

Wire gauge Packing 10kgs/coil 1*20'FCL Quantity
16GA*16GA 160M/coil 15TONS
16GA*14GA 125M/coil 16TONS
14GA*14GA 100M/coil 17TONS
14GA*12GA 80M/coil 18TONS
12GA*12GA 65M/coil 19TONS
15kgs/coil
Wire gauge Packing 10kgs/coil 1*20'FCL Quantity
16GA*16GA 240M/coil 15TONS
16GA*14GA 180M/coil 16TONS
14GA*14GA 150M/coil 17TONS
14GA*12GA 120M/coil 18TONS
12GA*12GA 100M/coil 19TONS
25kgs/coil
Wire gauge Packing 10kgs/coil 1*20'FCL Quantity
16GA*16GA 400M/coil 16TONS
16GA*14GA 300M/coil 17TONS
14GA*14GA 250M/coil 18TONS
14GA*12GA 200M/coil 19TONS
12GA*12GA 160M/coil 20TONSa high quality cheap barbed wire for sale

Military Coiled Security Barbed Wire Dispenser Font Free Off Road , Spiral Concertina Razor Wire

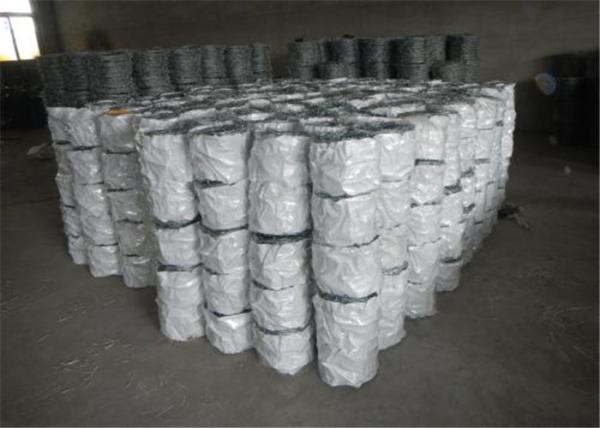

Packing: barbed wire, barbed wire price, cheap barbed wire:

> Plastic inside, hessian outside; plastic inside,weaving bag outside 1)in nude coils 2)in iron axletree 3)in wood axletree 4) in wood pallet 5) in coils by bulk 6) waterproof paper+woven bag > According to your requirements

Military Coiled Security Barbed Wire Dispenser Font Free Off Road , Spiral Concertina Razor Wire
