BTO-22 CBT-65 High Security Wire Fence , Prison Coiled Military Flat Barbed Wire
BTO-22 CBT-65 High Security Wire Fence , Prison Coiled Military Flat Barbed Wire
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1 tons/ton
Price :
US $300-600 / Tons
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons/ton per week
Delivery Time :
10-15days after confirming the order
Packaging Details :
Barbed wire packaging is Plastic inside and hessian outside or plastic inside and waving bag outside. 1)in nude 2)in iron axletree 3)in wood axletree;
material :
galvanized
type :
razor
wire dia :
12*14 Gauge
barbed distance :
7.5-15cm
weight :
8-25kgs/roll
certificated :
SGS
application :
used as barrier for lawn
barbed length :
10mm-65mm
sample :
free
name :
barbed wire
Description

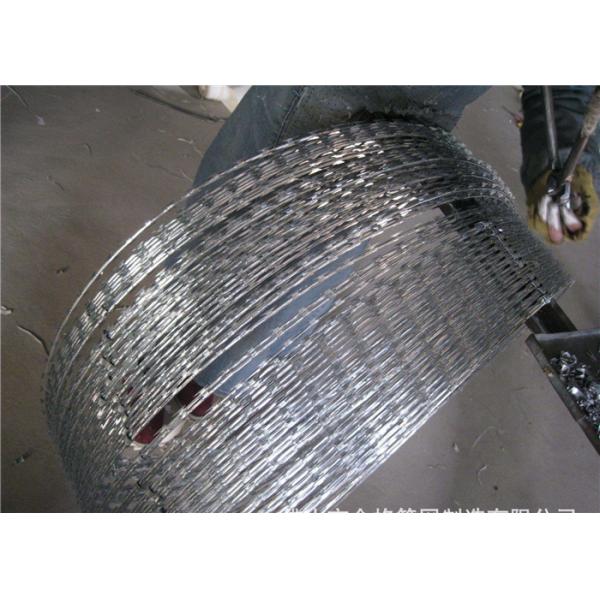

Razor barbed wire, also called as the razor stinging, razor wire, is a new type of fence.

Razor barbed wire with beautiful, economical and practical,good prevention effect,

convenient construction and other excellent characteristics.

It can be made into different crossed type in different diameter and widely used in high wall Or bounding wall, it has good effect on insulating and protecting.

The normally size is as follows:

Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 112 17M BTO-10. 12.18.20.22 concertina
500mm 102 16M BTO-10. 12.18.20.22 concertina
600mm 86 14M BTO-10. 12.18.20.22 concertina
700mm 72 12M BTO-10. 12.18.20.22 concertina
800mm 64 10M BTO-10. 12.18. concertina
960mm 52 9M BTO-10. 12.18.20.22 concertina
Length, diameter can be made according to customers request.

BTO-22 CBT-65 High Security Wire Fence , Prison Coiled Military Flat Barbed Wire

Outside Diameter No.of Loops Standard Length per Coil Type Notes
300mm 33 4-5m CBT-60.65 Single coil
450mm 33 7-8m CBT-60.65 Single coil
500mm 56 12-13m CBT-60.65 Single coil
700mm 56 13-14m CBT-60.65 Single coil
960mm 56 14-15m CBT-60.65 Single coil
450mm 56 8-9m(3 clips) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11m(3 clips) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14m(5 clips) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16m(5 clips) BTO-10.12.18.22.28.30 Cross typ
Razor blade type and specification
Reference Number

Thickness

(mm)

Wire Dia

(mm)

Barb Length

(mm)

Barb Width

(mm)

Barb spacing

(mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.5±0.05 2.5±0.1 60±1 32±1 100±1
CBT-65 0.5±0.05 2.5±0.1 65±1 21±1 100±1

Material: high quality and low in carbon steel and stainless steel sheet

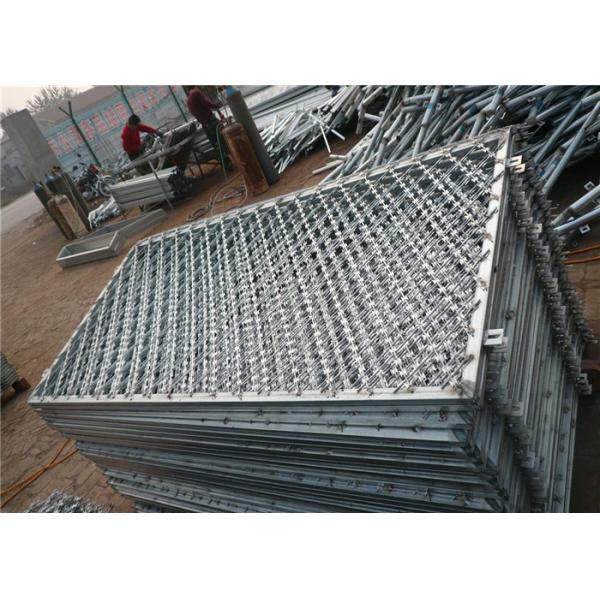

Type: cross type razor barbed wire,single razor barbed wire,flat razor barbed wire,welded razor wire mesh.

Features: excellent protective performance, beautiful, great variety, rapid construction, the deterrence effect.

Usage: military border, prisons, defense agencies and facilities, important state facilities, residential, residential barrier protection.

BTO-22 CBT-65 High Security Wire Fence , Prison Coiled Military Flat Barbed Wire

Packing: bulk,simple packing and carton packing.

Simple packing: inside is water proof paper and outside is woven bags and

then compression.

Carton packing: razor mesh coils are loading into hard cartoon boxes.

BTO-22 CBT-65 High Security Wire Fence , Prison Coiled Military Flat Barbed Wire
