32 X 5mm Stainless Steel Grate Sheet , Metal Grid Catwalk Aluminum Grate Decking Q235 25mm 30mm 32mm 40mm
32 X 5mm Stainless Steel Grate Sheet , Metal Grid Catwalk Aluminum Grate Decking Q235 25mm 30mm 32mm 40mm
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
steel pallets with steel band bundles
material :
hot-dipped galvanized
Bearing bar pitch :
20,25,30,32.5,34.3,40,50,60
Cross bar pitch :
40, 50, 60, 65, 76, 100, 101.6
Cross bar size :
5X5, 6X6, 8X8mm
application :
floor
Bearing bar thickness :
2.5mm-10mm
Length :
1m, 2m, 5.8m, 6m, etc
width :
900mm, 1000mm, etc
certificated :
SGS
Description

Hot Dipped 32 x 5mm Galvanized Steel Grating/Q235 25mm 30mm 32mm 40mm building materials galvanized steel grating

Steel gratings consist of a series of bearing bars cross jointed by welding at various intervals with cross bars (twisted square bars, square bars, round bars, flat bars etc.), to form a kind of steel products with square lattices among them. Their main applications are drain covers, steelwork platform panels, and steel stair treads.

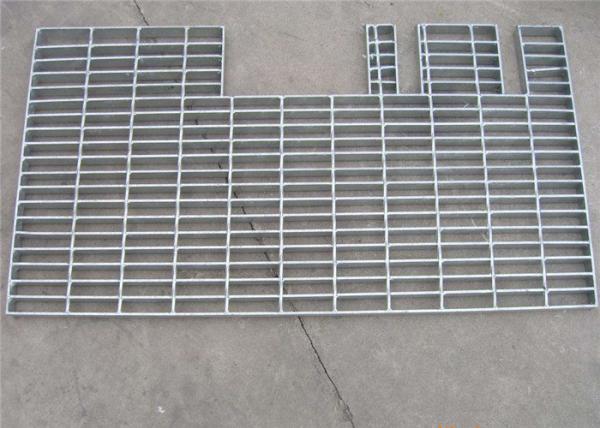

32 X 5mm Stainless Steel Grate Sheet , Metal Grid Catwalk Aluminum Grate Decking Q235 25mm 30mm 32mm 40mm

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 9;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4,

2) Bearing Bar Pitch (center to center):
12.5 to 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available.

3) Cross Bar Pitch (center to center):
from18.5 to 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.

Common Specification Of Steel Grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,

Mild steel & Low carbon steel, etc

Bearing Bar

(width*thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment

untreated(black), hot-dipped galvanized ,powder coated,

electroplate, painting or as per customers’ requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing

1) LCL(less than one container load): packed with plastic film then on the pallets

2) FCL(full container load): nude packing

3) Other special package :according to customers' requirements.
Payment Term

T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P,

Trade assurance
Remarks: Other sizes also can be customized according to customers’ requirement.

32 X 5mm Stainless Steel Grate Sheet , Metal Grid Catwalk Aluminum Grate Decking Q235 25mm 30mm 32mm 40mm

Features

1. High strength and light structure.

2. Powerful anti-corrosion, durable and long working life.

3. Beautiful appearance, bright surface.

4. No dirt-rain-snow deposit, automatic cleaning, easy maintenance.

5. Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion.

6. Easy installation and disassembly.

32 X 5mm Stainless Steel Grate Sheet , Metal Grid Catwalk Aluminum Grate Decking Q235 25mm 30mm 32mm 40mm

Packaging & Delivery

Normally packed in pilling up ways with two pieces of square wood on both upper and bottom sides. There are four or six pieces of M10 long bolt penetrating the gratings and screwing together. It is suitable for loading and unloading by fork-lift and crane.
