ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh
ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
1. Screw rod fixation. Use 4 screw rods pass through the steel grating aperture, fix them with screw. 2. packing belt strapping, which is generally applicable to a relatively neat steel grating. 3. pallet guarantee, generally for export packing.
material :
hot-dipped galvanized
Bearing bar pitch :
20,25,30,32.5,34.3,40,50,60
Cross bar pitch :
40, 50, 60, 65, 76, 100, 101.6
Cross bar size :
5X5, 6X6, 8X8mm
application :
floor
Bearing bar thickness :
2.5mm-10mm
Length :
1m, 2m, 5.8m, 6m, etc
width :
900mm, 1000mm, etc
certificated :
SGS
Description

ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh

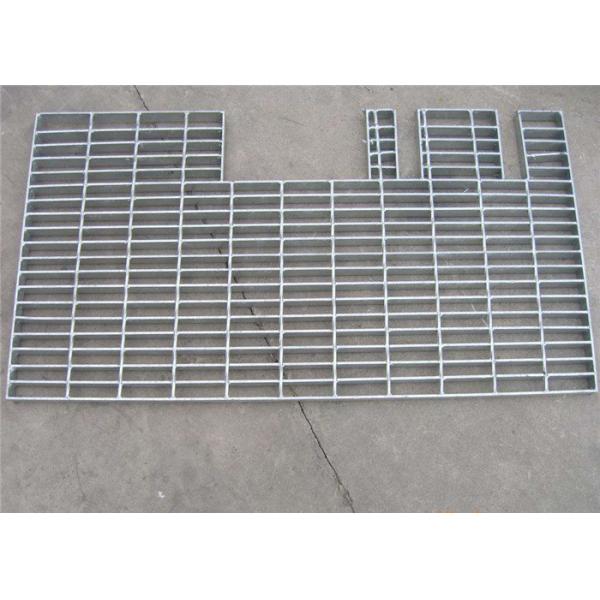

Steel grid mesh a kind of customized product made from raw plate through deep processing including cutting, incising, perforating, rimming, etc. The raw plate is welded up by high pressure resistance welding machine with load flat steel and cross bar that are cross placed according to certain space.

The surface treatment can be hot galvanizing, cold galvanizing (electric galvanizing), paint spraying, antirust oil soaking, dipping, plastic spraying, and no treatment.

ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh

Application: It is widely used for platform, aisle, trestle, drain cover, manhole cover, steel ladder, fence, and guardrail in the fields including petrochemical, power station, sewage treatment plant, mechanical manufacture, mechanical and electrical equipment, paper mill, cement plant, pharmacy, food processing, municipal engineering, environmental engineering, etc.

Specifications kg/m2
DG203/30/100
50		 21.1
24.3
DG253/30/ 100
50		 25.6
28.8
DG323/30/ 100
50		 31.8
35.1
DG403/30/ 100
50		 39.1
42.2

Specifications kg/m2
DG203/40/100
50		 17.2
20.4
DG253/40/ 100
50		 20.6
23.9
DG323/40/ 100
50		 25.5
28.8
DG403/40/ 100
50		 31.1
34.4

Specifications kg/m2
DG205/30/100
50		 33.1
36.2
DG255/30/ 100
50		 40.5
43.7
DG325/30/ 100
50		 51.0
54.2
DG355/30/ 100
50		 55.6
58.8
DG405/30/ 100
50		 62.9
66.1
DG455/30/ 100
50		 70.4
73.6
DG505/30/ 100
50		 78.3
81.1
DG555/30/ 100
50		 85.1
88.2
DG605/30/ 100
50		 93.0
96.0
DG655/30/ 100
50		 100.4
103.5

Specifications kg/m2
DG205/40/100
50		 26.6
29.8
DG255/40/ 100
50		 32.4
35.6
DG325/40/ 100
50		 40.5
43.7
DG355/40/ 100
50		 43.9
47.2
DG405/40/ 100
50		 49.8
53.0
DG455/40/ 100
50		 55.6
58.8
DG505/40/ 100
50		 61.4
64.6
DG555/40/ 100
50		 66.9
70.1
DG605/40/ 100
50		 72.7
75.6
DG655/40/ 100
50		 78.8
82.1

Galvanized steel grating Specification

Material: carbon steel
Surface treatment: hot-dipped galvanized
Widths: 2'or 3'
Lengths: 20' or 24'
Galvanized steel grating is available in: Grade 2 (Medium) or Grade 3 (Coarse)
ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh

Specification of metal grating walkway:

No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'',

1 1/2''x1/8'' etc

2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh

Packing Details : Standard export packing with pallet and water-proof paper or according to customer requirement

Delivery Details : -----Samle order: 1---3 days after receipt of the full payment.

-----Stock order: 3---7 days after receipt of the full payment.
-----OEM order: 7---15 days after receipt of the deposit.

ss grating/aluminum floor grating/grating suppliers/steel grating suppliers/metal grating walkway/steel grid mesh

Our Services

1. Small sample is free.

2. According to the different customer need to customize logo.

3. According to the color of the customers like to customize.

4. We have full stock, and can deliver within short time.

5. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
