Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
1.Strapping tape packaging : Generally suitable for more neat steel grating 2.Pallet package : For export packing 3.Screw Rod Fixation : Adopt 4 screw rod through the steel grid hole diameter and screw lock packing method.
Price :
20-25$/pcs
material :
hot-dipped galvanized
Bearing bar pitch :
20,25,30,32.5,34.3,40,50,60
Cross bar pitch :
40, 50, 60, 65, 76, 100, 101.6
Cross bar size :
5X5, 6X6, 8X8mm
application :
floor
Bearing bar thickness :
2.5mm-10mm
Length :
1m, 2m, 5.8m, 6m, etc
width :
900mm, 1000mm, etc
certificated :
SGS
Description

steel grating/expanded metal/metal grate/bar grating/metal mesh/floor grates/aluminum grating/catwalk grating

steel grating application range

Power plants Sewage treatment The ship manufacturing Municipal engineering Nuclear power plants Room of the lacquer that bake
Desulfurization tower Offshore platform Industrial platform High tower Water supply and drainage The steel structure
smelters Pharmaceutical manufacturing Painting workshop Stereoscopic parking Cement plant Selected mining
chemical plant Safety protection Food processing Storage shelves Light industry The scaffold

steel grating/expanded metal/metal grate/bar grating/metal mesh/floor grates/aluminum grating/catwalk grating

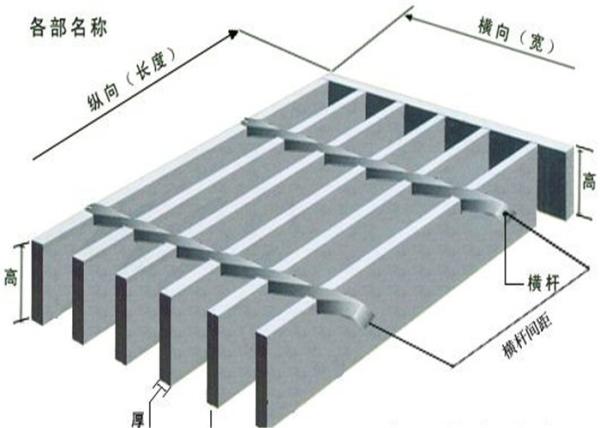

Specification

Matrial Low carbonsteel / Stainless steel
Grade CN: Q235, Q345 ; UK: 43A
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
panel size: 1000x1000mm, 1000x2000mm, 1000x3000mm, 1000x6000mm
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.

steel grating/expanded metal/metal grate/bar grating/metal mesh/floor grates/aluminum grating/catwalk grating

Most Popolar

NO. Bearing size(mm) Cross bar pitch(mm) Weight(kg/square meter)
G253/30/50

25x3

 50 25.7
G253/30/100 100 22.8
G255/30/50

25x5

 50 39
G255/30/100 100 36.2
G323/30/50

32x3

 50 31.3
G323/30/100 100 28.4
G325/30/50

32x5

 50 48.4
G325/30/100 100 45.5

Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,

painting or as per customers’ requirement.

steel grating/expanded metal/metal grate/bar grating/metal mesh/floor grates/aluminum grating/catwalk grating

Specification of bar grating:

Common specification of Steel grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,

Mild steel & Low carbon steel, etc

Bearing Bar

(width*thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment

untreated(black), hot-dipped galvanized ,powder coated,

electroplate, painting or as per customers’ requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Floor Grates

1) Material: Mild Steel Q235 or Stainless Steel such as ss304 ss304L ss316 ss316L...

2) Surface Treatment: Hot dip galvanized , Painted , Untreated.

3) Shape of bearing bars: Plain bar style , Serrated bar style , I Bar style

4) Market: USA , Middle East ---Kuwait, UAE, Saudi Araia; Australia, Europe and Southeast

Tolerance of hot dip galvanized steel grating

The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.

The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.

Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.

steel grating/expanded metal/metal grate/bar grating/metal mesh/floor grates/aluminum grating/catwalk grating

common size:

Bearing Bar Spacing Cross Bar Spacing Bearing Bar Specification(Depth×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing Bar Spacing Cross Bar Spacing Bearing Bar Specification(Depth×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Grating Standard Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

4. According to customer's packing requirements.

steel grating/expanded metal/metal grate/bar grating/metal mesh/floor grates/aluminum grating/catwalk grating

Q1: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3: Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4: How do you ship the goods and how long does it take to arrive?

A: We usually ship by airline and sea shipping.

Q5: How to proceed an order?

A: Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the contract and places deposit for formal order.

Fourthly we arrange the production.
