Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing
Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing
Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing
Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
steel pallets with steel band bundles
material :
hot-dipped galvanized
Bearing bar pitch :
20,25,30,32.5,34.3,40,50,60
Cross bar pitch :
40, 50, 60, 65, 76, 100, 101.6
Cross bar size :
5X5, 6X6, 8X8mm
application :
floor
Bearing bar thickness :
2.5mm-10mm
Length :
1m, 2m, 5.8m, 6m, etc
width :
900mm, 1000mm, etc
certificated :
SGS
Description

custom steel grating catwalk steel grating/steel gtating stair tread hot galvanized steel grating for car washing

latform steel grating plate:

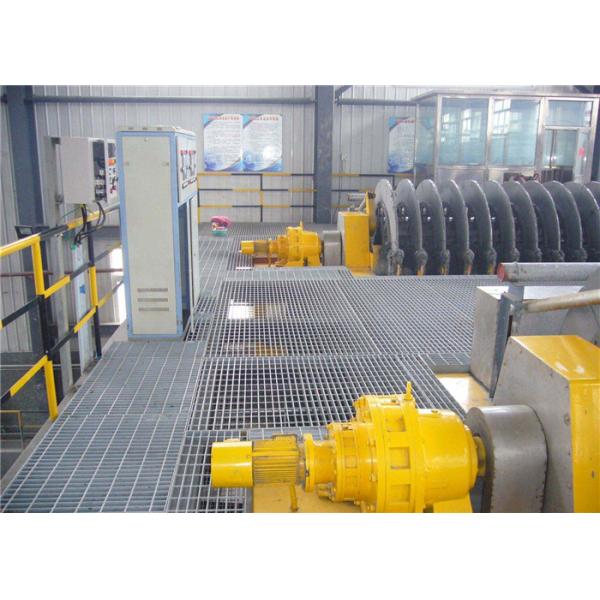

1.The platform steel grating plate application scope is extremely widespread, such as general factory, workshop, mining industry, harbor and so on, artistic style, installment convenient; it is one kind of new construction product. Our company can produce more than 100 models steel grating plate.

2.Can weld kick plate(guard board), armour plate, installation connecting fitting and so on accessories.

3.Can use different specification flat steel serging, or use angle steel, channel steel, square pipe and so on serging.

4.Can install handle and gemel in the steel grating plate which moves frequently.

5.Platform steel grating plate serging welding standard: Series 1 each five welds; Series 2 each four welds; series 3 every three welds. The welded joint is not smaller than 3mm one-sided angle welding, welded joint long 20mm.

Compound steel grating plate:

1.The compound steel grating plate consists of steel grating plate with certain loading ability and surface seal retreader.
2.After hot dip zinc treatment, the compound steel grating plate will warp and distort because of the heat, espacially the great model steel grating plate, difficult to smooth; please note the shaping.

3.The compound steel grating plate commonly takes series 3 steel grating plate as basic plate, also can use series 1 or series 2 steel grating plate. Retreader usually uses 3mm plate, also can uses 4mm, 5mm, 6mm plate.

Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing

Specification

Matrial Low carbonsteel / Stainless steel
Grade CN: Q235, Q345 ; UK: 43A
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
panel size: 1000x1000mm, 1000x2000mm, 1000x3000mm, 1000x6000mm
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.

Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing

Most Popolar

NO. Bearing size(mm) Cross bar pitch(mm) Weight(kg/square meter)
G253/30/50

25x3

 50 25.7
G253/30/100 100 22.8
G255/30/50

25x5

 50 39
G255/30/100 100 36.2
G323/30/50

32x3

 50 31.3
G323/30/100 100 28.4
G325/30/50

32x5

 50 48.4
G325/30/100 100 45.5

Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,

painting or as per customers’ requirement.

Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing

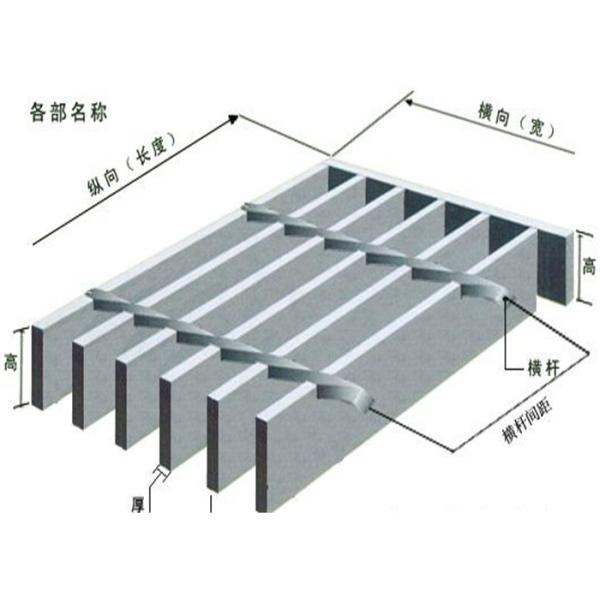

Specification of galvanized steel grating:

Common specification of Steel grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,

Mild steel & Low carbon steel, etc

Bearing Bar

(width*thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment

untreated(black), hot-dipped galvanized ,powder coated,

electroplate, painting or as per customers’ requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

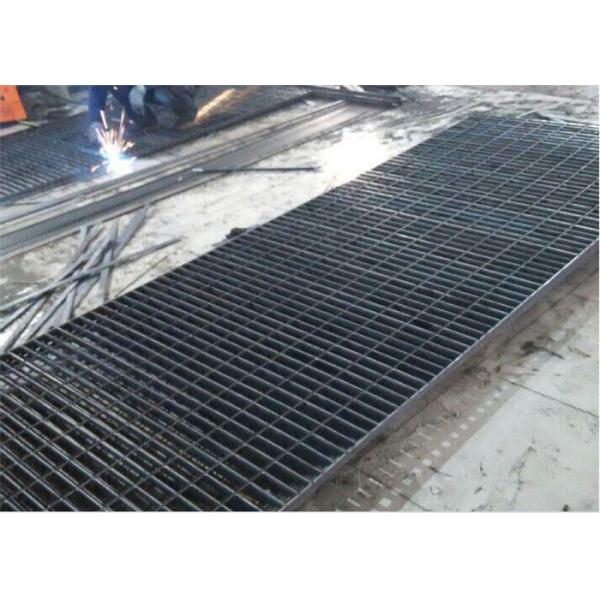

Processes: made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other propertier. The hot dipped zinc coating gives the product excellent anti-corrosion.

Material: hot rolled low carbon steel

Surface: serrated/plain

Finishes: electro galv, hot dipped galv, according to the difference surface treatment.

Standards of serrated galvanized steel grating.

Steel grating standard Steel standard Galvanizing standard
China standard YB/T 4001.1-2007 GB700-88 GB/T13912-2002
USA standard ANSI/NAAMM(MBG531) ASTM(A36) ASTM(A123)
U.K. standard BS4592 BS4360(43A) BS729
Australia standard AS1657 AS3679 AS1650

s

Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing

Tolerance of hot dip galvanized steel grating

The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.

The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.

Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.

Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing

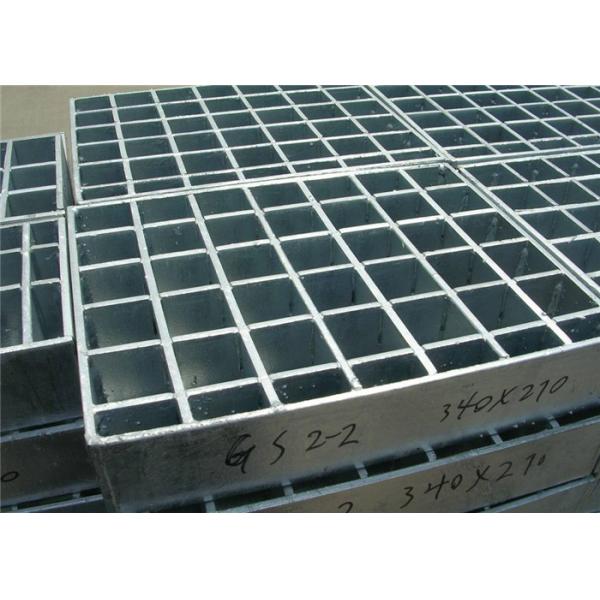

Packaging and shipping of steel grating

Steel grating ready to delivery. Stock place of our factory.

Custom Steel Grate Mesh , Hot Galvanized Industrial Catwalk Steel Grating For Car Washing

Inspection process of the steel grating.

To make sure the goods is seriously as customer's request, we have professional inspector who check the steel grating quality in each step from material collecting to goods loading.
