Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
1. Screw rod fixation. Use 4 screw rods pass through the steel grating aperture, fix them with screw. 2. packing belt strapping, which is generally applicable to a relatively neat steel grating. 3. pallet guarantee, generally for export packing.
Price :
$15.00 - $30.00 / Square Meters
material :
hot-dipped galvanized
Bearing bar pitch :
20,25,30,32.5,34.3,40,50,60
Cross bar pitch :
40, 50, 60, 65, 76, 100, 101.6
Cross bar size :
5X5, 6X6, 8X8mm
application :
floor
Bearing bar thickness :
2.5mm-10mm
Length :
1m, 2m, 5.8m, 6m, etc
width :
900mm, 1000mm, etc
certificated :
SGS
Description

galvanized bar grating/serrated bar grating/steel grates for driverways/diamond grates/grill grates/platform grating

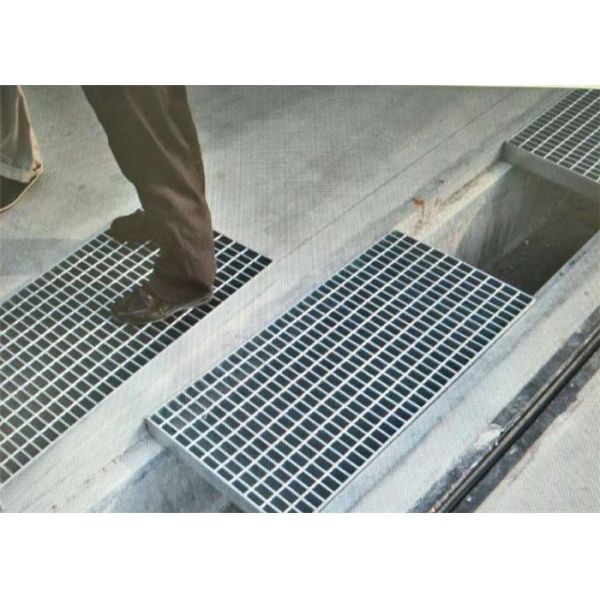

steel grid grates application range

Power plants Sewage treatment The ship manufacturing Municipal engineering Nuclear power plants Room of the lacquer that bake
Desulfurization tower Offshore platform Industrial platform High tower Water supply and drainage The steel structure
smelters Pharmaceutical manufacturing Painting workshop Stereoscopic parking Cement plant Selected mining
chemical plant Safety protection Food processing Storage shelves Light industry The scaffold

galvanized bar grating/serrated bar grating/steel grates for driverways/diamond grates/grill grates/platform grating

Specification

Matrial Low carbonsteel / Stainless steel
Grade CN: Q235, Q345 ; UK: 43A
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm

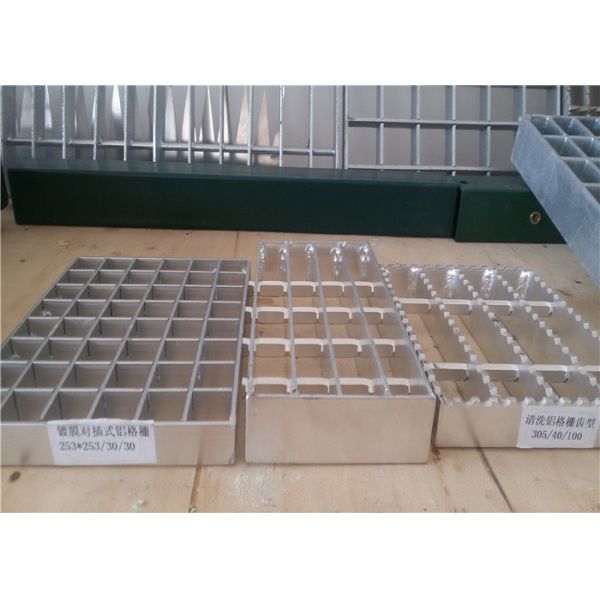

Bearing bar type plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
panel size: 1000x1000mm, 1000x2000mm, 1000x3000mm, 1000x6000mm
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.

galvanized bar grating/serrated bar grating/steel grates for driverways/diamond grates/grill grates/platform grating

Most Popolar

NO. Bearing size(mm) Cross bar pitch(mm) Weight(kg/square meter)
G253/30/50

25x3

 50 25.7
G253/30/100 100 22.8
G255/30/50

25x5

 50 39
G255/30/100 100 36.2
G323/30/50

32x3

 50 31.3
G323/30/100 100 28.4
G325/30/50

32x5

 50 48.4
G325/30/100 100 45.5

Special design for certain market:

1) Bearing Bar (Load Bar) Specifications (mm):

plain type and serrated type bearing bar is 20 x 3 to 100 x 10; I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center)

12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc,

America standard is available :1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4),(19-w-2) and so on.

3) Cross Bar Pitch (center to center):

38, 50, 76, 100, 101.6mm etc

America standard is available.

galvanized bar grating/serrated bar grating/steel grates for driverways/diamond grates/grill grates/platform grating

Specification of galvanized bar grating:

Common specification of Bar Grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,

Mild steel & Low carbon steel, etc

Bearing Bar

(width*thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment

untreated(black), hot-dipped galvanized ,powder coated,

electroplate, painting or as per customers’ requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

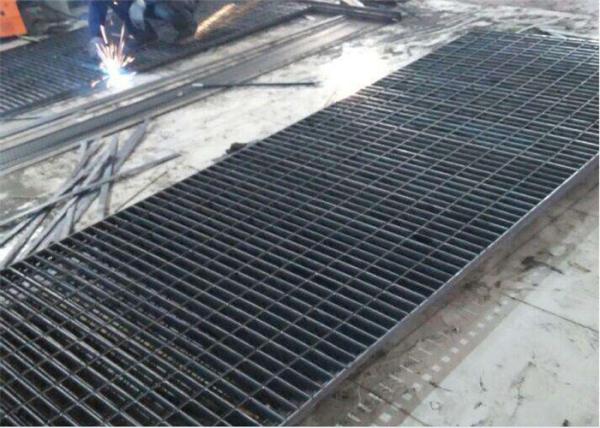

Installation of serrated bar grating:

1.Welding & using saddle clips are two ways for installation of grating. The welding is suitable for those places where there is no need to move or dismental,for instance,the flooring around the machines. However,using saddle clips are featuring in easy installation & saving zinc layer.

2.Regarding welding installation, angle wolding would used at the first bearing bar of every corner,which the welding length is no less than 20mm,&the height is no less than 3mm.

3.Saddle clip composed of a top plate,a hold down & a M8 bolt, is suitable for all kinds of steel gratings installation.

4.Regarding saddle clip installation, at laest four sets of saddle clips would be used in one pc grating.It would be better using more in the staddle for those gratings with a bigger span.

galvanized bar grating/serrated bar grating/steel grates for driverways/diamond grates/grill grates/platform grating

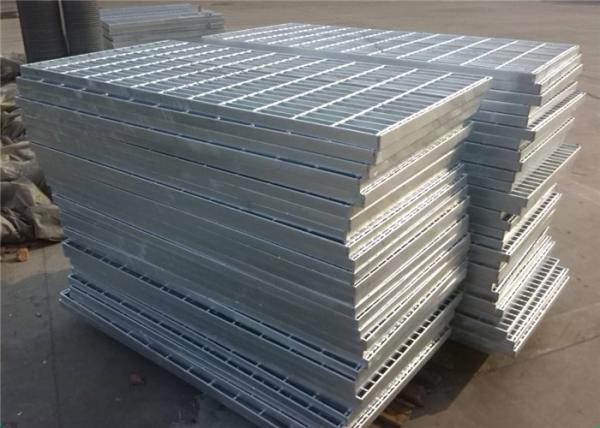

Grill Grates Packaging Details:

Steel Grating is usually packed by bundles or pallet or as your request

galvanized bar grating/serrated bar grating/steel grates for driverways/diamond grates/grill grates/platform grating

What is your galvanized bar grating size ?

No Item Description
1

Bearing

bar

 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2 Bear bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3 Cross bar pitch 38,50,76,100,101.6mm
4 Material Q235,A36,SS304
5 Surface treatment Black, hot dipped galvanising, paint
6 Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
