Grassland Wire Mesh Fence , Animal Farm Field Small Square Wire Fencing For Cow
Grassland Wire Mesh Fence , Animal Farm Field Small Square Wire Fencing For Cow
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
50 rolls/roll
Price :
US $15-30 / Rolls
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 rolls/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
1)In Nude,which is the most popular packing ways as it could load bigger quantities,then lower unit price. 2) Plastic Film, uniform and good integration. 3)Wooden Pallet,save time and efforts,more convenient to load and discharge, With high labor cost,this
material :
hot-dipped galvanized wire
hole :
square
length :
50m or 100m/roll
edge wire :
2.20mm
mesh wire :
2.0mm
tensible strength :
950-1050MPA
application :
farm fence
feature :
anti-corrosion
height :
1-3m
zinc coated :
60g/m2 ,250g/m2
Description

Wire mesh for grassland/animal farm fence wire mesh/ field fence wire/ Cow Fence / Field Fencing wire mesh

1.Opening in cm:(Warp) 15-14-13-11-10-8-6; (weft) 15-18-20-40-50-60-65;

2.Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m;

3.Length: 115 inch (50m) or 330 inch (100m);izes of mesh opening, roll height and length can be customized.

4.Zinc coated:50-270g/m2.

5.technique:machine linking and weaving

6.surface treatment: hot-galvanized,cold-galvanized

Grassland Wire Mesh Fence , Animal Farm Field Small Square Wire Fencing For Cow

Features:

Field Fence has the features of simple in structure, easy maintenance and installation, less weight, easy for transport and good ventilation.

Even the most severe weather won't break down this fence because special wire crimps allow fencing to expand and contract as temperatures rise and fall.

pecifications:

NO.

Specification

Gross

Weight

( kg)

Set and

bottom

silk Dia.(mm)

 In silk
Dia.
(mm)

Volume

dia.

(mm)
Type Specification
1 7/150/813/50 102+114+127+140+152+178 20.8 2.5 2.0 280
2 8/150/813/50 89(75)+89+102+114+127+140+178 21.6 2.5 2.0 280
3 8/150/902/50 89+102+114+127+140+152+178 22.6 2.5 2.0 280
4 8/150/1016/50 102+114+127+140+152+178+203 23.6 2.5 2.0 280
5 8/150/1143/50 114+127+140+152+178+203+229 23.9 2.5 2.0 280
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 26.0 2.5 2.0 280
7 9/150/1245/50 102+114+127+140+140+152+178+203+229 27.3 2.5 2.0 280
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 280
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 280
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 19.3 2.5 2.0 280

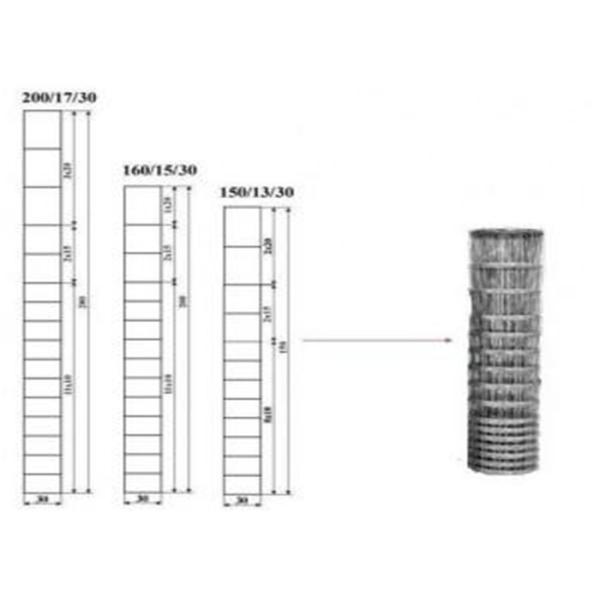

Remark:

For the type:

The first number is how many pieces of wire for vertical direction;

The send number is the width of the mesh opening size (mm) for the traverse direction;

The third number is the height of the fence;

The last number is the length for the fence, 50M is standard and usual size, also we can do it as your request

Applications:

Mainly used for lawns, pastures fenced grassland construction, protection, ecological engineering.

Grassland Wire Mesh Fence , Animal Farm Field Small Square Wire Fencing For Cow

For Packing

In Nuding: Capacity to reduce freight cost saving

In Wooden Pallet: Easy shipping, easy load and unload

In Carton: Beautiful packaging for supermarket and wholesale online

For Shipping

We usually load container to Tianjin Port, we can also load to others port in China


Grassland Wire Mesh Fence , Animal Farm Field Small Square Wire Fencing For Cow
