High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
US $6-10 / Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
500pcs/pallet or according to customer's requirement.
material :
galvanized
thickness :
0.3mm - 0.5mm
Rib Distance :
100mm, 150mm,75mm
Width x length :
610 x 2440 mm
application :
construction,building
Reinforced spacing :
150mm
certificated :
SGS
sample :
free
weight :
0.4-0.8kgs/m2
hole size :
16*11mm, 7*11mm
Description

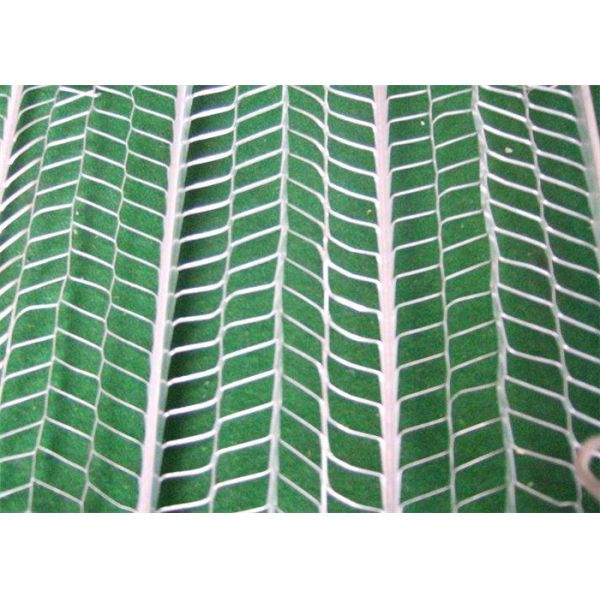

Building materials 0.45mm Galvanized expanded metal rib lath 2500m/expanded metal high rib lath

Rib lath is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storing tanks, skyscrapers, ocean engineering and irregular or curved shapes. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.

High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m

Rib Lath Product parameters

1. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm M.T/mm R.H.mm R.D./mm Wt kg/m2 Sheet size
4.5×15 0.3 4 75 1.26 610/750×2440
4.5×15 0.35 4 75 1.47 610/750×2440
4.5×15 0.4 4 75 1.68 610/750×2440
4.5×15 0.45 4 75 1.89 610/750×2440
4.5×15 0.5 4 75 2.10 610/750×2440

2. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm M.T/mm R.H.mm R.D./mm Wt kg/m2 Sheet size
4.5×15 0.3 8 150 1.25 610×2440
4.5×15 0.35 8 150 1.46 610×2440
4.5×15 0.4 8 150 1.67 610×2440
4.5×15 0.45 8 150 1.88 610×2440
4.5×15 0.5 8 150 2.09 610×2440

3. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm M.T/mm R.H.mm R.D./mm Wt kg/m2 Sheet size
10×17 0.3 8 75 1.06 610×2440
10×17 0.35 8 75 1.23 610×2440
10×17 0.4 8 75 1.41 610×2440
10×17 0.45 8 75 1.59 610×2440
10×17 0.5 8 75 1.76 610×2440

4. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight
SW×LW/mm M.T/mm R.H.mm R.D./mm Wt kg/m2 Sheet size
10×18 0.2 8 150 0.45 610×2440
10×18 0.25 8 150 0.56 610×2440
10×18 0.3 8 150 0.68 610×2440
10×18 0.35 8 150 0.79 610×2440
10×18 0.4 8 150 0.90 610×2440
10×18 0.45 8 150 1.01 610×2440
10×18 0.5 8 150 1.13 610×2440
10×18 0.6 8 150 1.35 610×2440

5. SW×LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight 3/8 Rib Lath(Hi Rib )
Finish Wt.per
Sq.Yd.		 Sheet Size Pes.Bdl Yds/Bdl Yds/Pallet
Galv. 3.4lbs 27”×96” 10 20 1000

GI rib lath

  • HoleSize:4.5mmx15mm,5mmx10mm,10mmx20mm,9x20mm,8mmx20mm,10mmx16mm,10mmx18mm
  • Sheet Thickness:0.3mm-0.6mm
  • Rib Length:4mm,8mm
  • Rib Distance:75mm,150mm
  • Width:600mm,610mm
  • Length:2200mm,2440mm

High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m

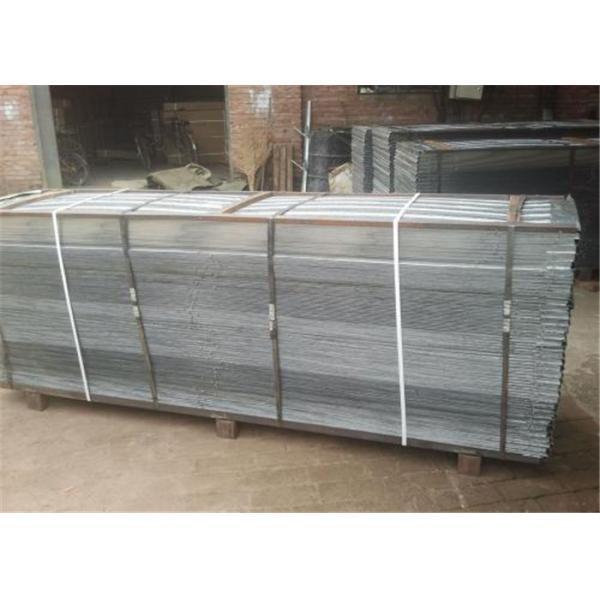

Packaging

Rib lath are packed 500pcs/pallet, or according to your requirement,

High Rib Heavy Duty Galvanized Expanded Metal Aluminium Mesh For Building Materials 0.45mm 2500m
