304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length
304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length
304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length
304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10m2
Price :
US $1.2-4.5 / Square Meters
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
1000m2/day
Delivery Time :
15 DAYS AFTER RECEIVED THE ADVANCE PAYMENT
Packaging Details :
PACKAGE: 1)rolls in woven bag; 2)in sheets: on the pallet; 3) as customer request.
material :
galvanized sheet
hole size :
10*20mm,15*30mm etc
application :
construction,building
hole shape :
diamond
Short way of mesh :
3-40mm
Long way of mesh :
5-80mm
weave type :
punch
thickness :
0.3-4mm
roll size :
1.2x10m, 0.6x20m etc
sample :
free
Description

304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length

Expanded metal mesh is the industry a variety of metal mesh, also known as expanded metal, diamond wire mesh, iron wire mesh, metal expansion net, heavy steel plate net, pedal mesh, stainless steel mesh, granary, antenna wire mesh, filter mesh, acoustics meshes, etc

Expanded metal mesh: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plate and other metal plate

Expanded metal mesh surface treatment: PVC dip molding(plastic spraying, plastic coated), hot-dipped galvanized, electric galvanized, spray paint, etc

304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length

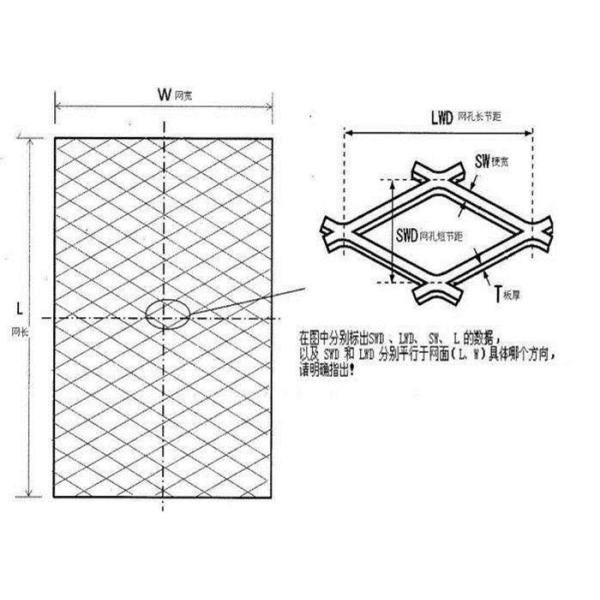

Specification of expanded metal sheet
Item Strand Design sizes Opening sizes

Open area

(%)

Thickness

(Inch)

Width

(Inch)

LWD

(Inch)

SWD

(Inch)

LWO

(Inch)

SWO

(Inch)
01 0.134 0.150 2.00 0.923 1.562 0.675 67
02 0.092 0.144 2.00 0.923 1.625 0.718 69
03 0.090 0.096 2.00 0.923 1.688 0.76 79
04 0.060 0.101 2.00 0.923 1.75 0.783 78
05 0.090 0.096 1.20 0.500 0.938 0.337 62
06 0.060 0.087 1.20 0.500 0.938 0.372 65
07 0.048 0.088 1.20 0.500 0.938 0.382 65
08 0.036 0.072 1.00 0.500 0.718 0.407 71
09 0.048 0.072 1.00 0.250 0.718 0.146 42
10 0.036 0.072 1.00 0.250 0.718 0.157 42

Specifications of expanded metal steel sheet:

Materials: black steel,galvanized steel,stainless steel

Hole shapes: diamond,scale,hexagonal,tortoise shell,etc.

Surface treatment: PVC coated,epoxy resin,anodizing,painted

Long way of hole: 4.5mm-100mm

Short way of hole: 2.5mm-50mm

LWD: 4.5mm-200mm

SWD: 2.5mm-80mm

Colors: silver,golded,red or as your requirements.

Thickness: 0.5mm-8mm

Package: wrapped by waterproof paper in wooden pallet or iron pallet.

Use:home decoration; smoke lampblack machine, air conditioner,aire conditioning screen pack; antenna, fly swatter and all kinds of car decorative nets; handicraft production; high-grade large feed speaker net and so on.

304 316 316l Expanded Wire Mesh , Stainless Steel Diamond Shape Expanded Mesh Fabric 5 - 80mm Length

Packaging & Shipping

  • in pallet
  • in tray
  • wooden case
Our Services

  • Best price and service
  • Fast delivery
  • Most perfessional & suitable advice.
  • 24 hours online service
  • Professional quality inspection
  • High-quality after-sales service
  • Provide customized design services
