Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
Specifications
Brand Name :
SS
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
US $6-10 / Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
500pcs/pallet or according to customer's requirement.
material :
galvanized
thickness :
0.3mm - 0.5mm
Rib Distance :
100mm, 150mm,75mm
Width x length :
610 x 2440 mm
application :
construction,building
Reinforced spacing :
150mm
certificated :
SGS
sample :
free
weight :
0.4-0.8kgs/m2
hole size :
16*11mm, 7*11mm
Description

Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath

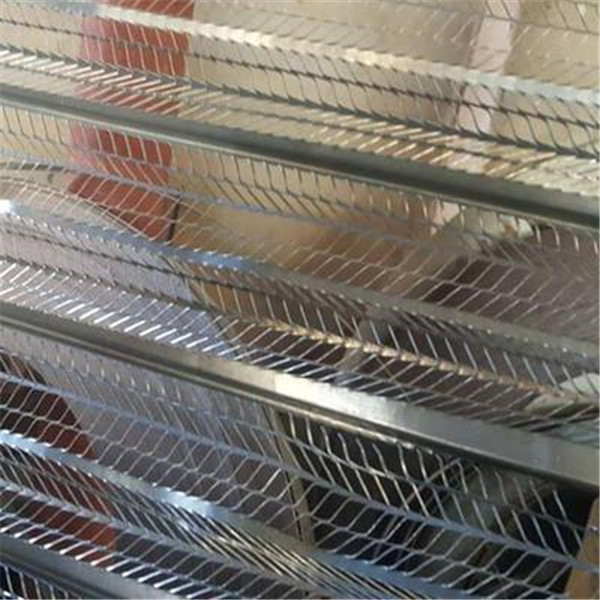

Rib Lath is Expanded Metal lath stiffened by longitudinal steel ribs, formed in the same sheet of metal. The mesh areas of the lath are expanded by cutting and stretching in the sheet of metal, the ribs being simultaneously roll-formed. The furring design of the mesh provides an execellent background plaster for construction of partitions, suspended ceilings and refurbishment works. The advantages of rib lath over metal lath is that the support centres can be increased or wide

Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath

Specification of Building Materials Galvanized High Ribbed Formwork Hy Rib Lath:

Thickness(mm) mesh(mm) Rib height(mm) Rib distance(mm) kg/m² Width of panel(mm)
0.30 16X11 8 150 0.85 600
0.35 16X11 8 150 1.00 600
0.40 16X11 8 150 1.14 600

Thickness of panel(mm)

mesh(mm)

 Rib height(mm) Rib distance(mm)

kg/m²

 Width of panel(mm)
0.30 7X11 8 100 1.165 600
0.35 7X11 8 100 1.36 600
0.4 7X11 8 100 1.55 600


High Rib Lath

Rib Height Width Length Thickness Materials
3mm 610 2000mm-2500mm 0.25mm-0.50mm Galv.
4mm 600mm 2000mm-2500mm 0.30mm-0.50mm Galv.
10mm 600mm 2000mm-2500mm 0.30mm-0.50mm Galv.
3/8'' 27'' 97'' 3.4lbs/sq yard Galv.
3/4'' 27.5'' 97'' 5.4kg/sheet Galv.
25mm 700mm 2000mm-2500mm 0.50mm Galv.

Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath

Applications:

Galvd Rib-Lath is extensively used:

>as a Plaster Backgroud for:

- Partitions

- Structural (Steel Work Encasement

- Suspended Ceiling

- Arch Formation

- Construction Joint for Shallow

>to refurbish damaged or aged masonry walls, Slab, Retrofiting work, etc..

Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath

The advantage of ribbed- lath over metal-lathing is that support centers can be increased or widened. Flat Rib Lath is available in paper-backed in either K (Kraft) paper, or with D paper. Sizes and specifications can be customized.

Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath

Packing & Delivery

Stucco construction High rib /Formwork Rib Lath thickness 0.30 mm/wire mesh lath/high rib mesh/stucco lath
