Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
Specifications
Brand Name :
SS
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
US $6-10 / Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
10-15days after confirming the order
Packaging Details :
500pcs/pallet or according to customer's requirement.
material :
galvanized
thickness :
0.3mm - 0.5mm
Rib Distance :
100mm, 150mm,75mm
Width x length :
610 x 2440 mm
application :
construction,building
Reinforced spacing :
150mm
certificated :
SGS
sample :
free
weight :
0.4-0.8kgs/m2
hole size :
16*11mm, 7*11mm
Description

Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply

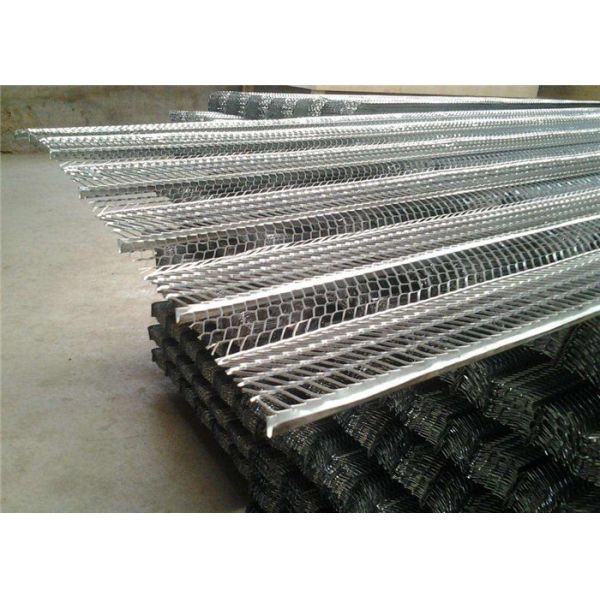

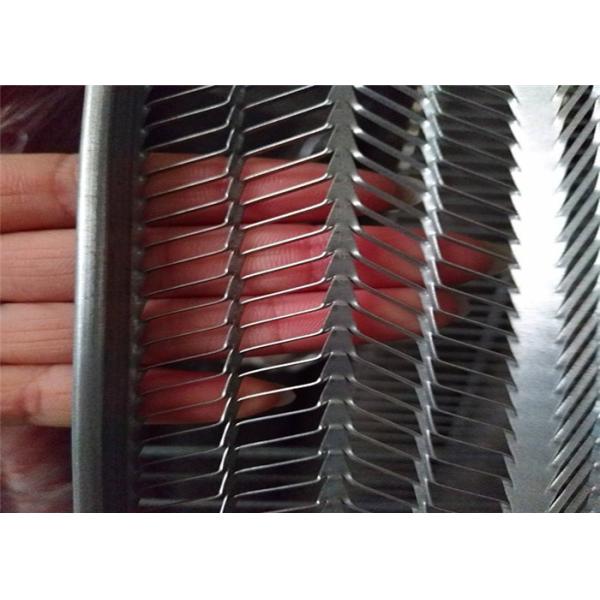

Expanded metal lath is made of expanded metal for plasterworks. Commonly

galvanized steel or stainless steel expanded metal. It offers firm structure and smooth

surface. Rib lath is expanded metal lath stiffened with longitudinal ribs.

Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply

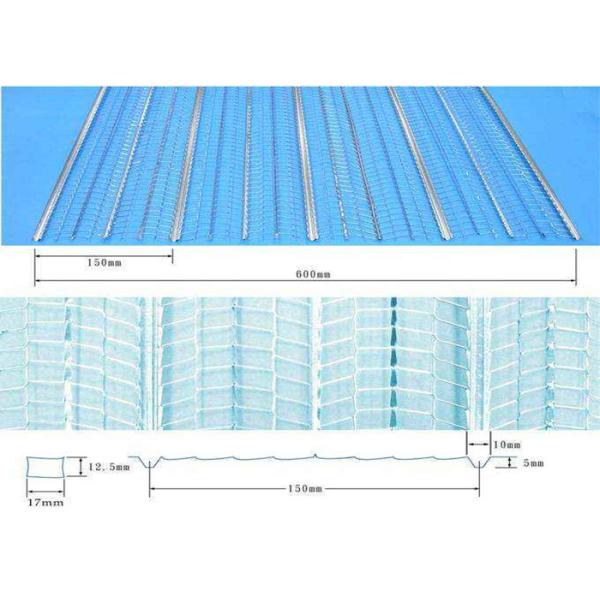

5 Rib 8 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.30 150 1.31 610 X 2440
0.35 150 1.53 610 X 2440
0.40 150 1.75 610 X 2440
0.45 150 1.96 610 X 2440
0.5 150 2.17 610 X 2440

9 Rib 4 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.30 75 1.89 610 X 2440
0.35 75 2.28 610 X 2440
0.40 75 2.53 610 X 2440
0.45 75 2.84 610 X 2440
0.5 75 3.15 610 X 2440
7 Rib 8 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.30 100 1.79 610 X 2440
0.35 100 2.09 610 X 2440
0.40 100 2.38 610 X 2440
0.45 100 2.68 610 X 2440
0.5 100 2.98 610 X 2440

Feature and Application

High rib mesh has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works as concrete permanent assembly-free formwork.

Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply

Material thickness/mm Sw×Lw/mm Rib height/mm Rib distance/mm Weight/kg/m2 Width/mm
0.30 12×8 5 100 1.2 610
0.35 12×8 5 100 1.4 610
0.40 12×8 5 100 1.6 610
0.30 12×8 8 100 1.2 610
0.35 12×8 8 100 1.4 610
0.40 12×8 8 100 1.6 610
0.30 3.5×13 4 60 1.27 610
0.35 3.5×13 4 60 1.49 610
0.40 3.5×13 4 60 1.70 610
0.30 3.5×13 4 75 1.27 750
0.35 3.5×13 4 75 1.49 750
0.40 3.5×13 4 75 1.70 750
0.35 20×9 8 75 1.00 610
0.40 20×9 8 75 1.13 610
0.45 20×9 8 75 1.27 610
0.30 1611 8 150 0.88 610

Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply

Packing & delivery time

Packing details: 10 pieces per bundle, 500 pieces per pallet.
packed with wood or pallets.

Delivery time: 10-20 days after order confirmed

Diamond Shape 316 Galvanized Steel Expanded Wire Mesh 0.35mm Construction Supply
