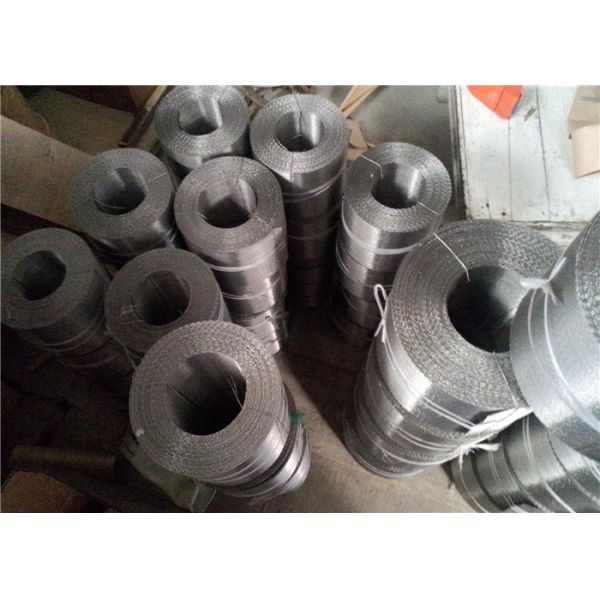

Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width
Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width
Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width
Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width
Specifications
Brand Name :
SS
Model Number :
SS-001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1 roll/rolls
Price :
US $25-50 / Rolls
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
50 Roll/Rolls per Day
Delivery Time :
within two weeks or according to your quantity
Packaging Details :
Package for 500 300 250 200 140 120 100 25 5 micron 304 306 316 stainless steel wire mesh for filter(In stock): 1.inside use carton pipe for support+wire mesh layer+water proof paper 2.outside use plastic wooden bags, +wooden case/carton pipes/wooden palle
material :
stainless steel wire
length :
10m
width :
40-500mm
wire diameter :
0.025-0.36mm
weave :
Dutch Weave
hole :
4-300 mesh
Description

Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width/

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Reverse Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.

Mesh Wire Diameter Mesh Wire Diameter Mesh Wire Diameter
3 1.0mm 24 0.19mm-0.5mm 90 0.1mm-0.12mm
4 0.7mm-1.5mm 26 0.19mm-0.4mm 100 0.07mm-0.14mm
5 0.6mm-1.2mm 28 0.19mm-0.35mm 110 0.08mm-0.09mm
6 0.5mm-1.0mm 30 0.15mm-0.4mm 120 0.07mm-0.1mm
7 0.5mm-0.8mm 32 0.17mm-0.3mm 140 0.06mm-0.07mm
8 0.4mm-1.0mm 34 0.23mm 150 0.06mm-0.07mm
10 0.3mm-1.0mm 35 0.25mm-0.3mm 160 0.06mm
12 0.3mm-0.8mm 36 0.15mm-0.28mm 180 0.05mm
14 0.27mm-0.7mm 40 0.12mm-0.27mm 200 0.05mm-0.06mm
16 0.25mm-0.7mm 50 0.13mm-0.25mm 300 0.03mm-0.04mm
18 0.20mm-0.55mm 60 0.1mm-0.19mm 400 0.023mm-0.03mm
20 0.19mm-0.55mm 70 0.1mm-0.15mm 500 0.025mm
22 0.21mm-0.5mm 80 0.08mm-0.17mm 635 0.018mm

Applicatiosn:

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width

Name Automatic continuous screen changer using mesh belt filter
Weave types Reverse Plain Dutch Weave and Reverse Twill Dutch Weave
Materials 304,304L,316,316L 904 904L 310 310s 410 430 etc.
Feature
  • High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
  • Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
  • Plasma and laser cut parts to help prevent edges wire fraying.
  • 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.
Application
  • Suitable for plastic wire drawing machine, stretch film machine, coating machine filters, such as plastic woven bag, plastic film.
  • Used for plastic recycling filter, otherwise wafer type, square type, single or multi-layer molding machine filter.
Standard Specs
  • 48x10 mesh RDPW 400 nominal micron
  • 72x15 mesh RDTW 250 nominal micron
  • 132x16 mesh RDTW 200 nominal micron
  • 152x30 mesh RDTW 115 nominal micron
  • 250x40 mesh RDTW 75 nominal micron
Width of belt 10cm 12cm 15cm 19cm 21cm all available, sample free for check quality !!

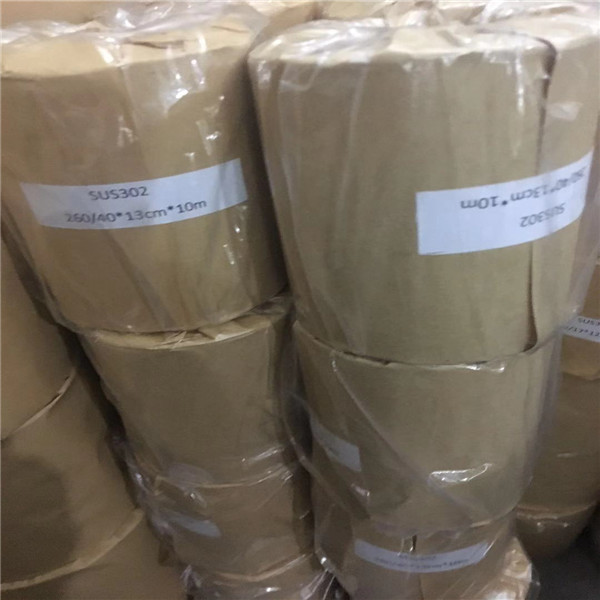

Packing: Waterproof paper inside,plywood case outside

Reverse Dutch Woven mesh screen/Stainless Steel Woven Wire Mesh SS316 40 - 500mm Width

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your terms of payment?

A: For mass production,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before delivery.


Q3. What is your terms of delivery?

EXW, FOB, CFR


Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or special designs. The mold fee wil be acounted by you.


Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
