Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier
Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier
Specifications
Brand Name :
SS
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 Square Meter/Square Meters
Price :
1.21$/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Square Meter/Square Meters per Day
Delivery Time :
20-35 days according to order quantity
Packaging Details :
Most selling items MIL3 Hesco Defensive Barrier Galvanized hesco barrier for sale good fire monitor Packaging Details:1.welded wire mesh in panel: are wraped with the shrinked plastic bag then packed in the pallets. 2.welded wire mesh in rolI:are b
material :
hot-dipped galvanized wire
wire dia :
5mm
mesh hole :
75mmx75mm 76.2mmx76.2mm
size :
2*1*1m
hole :
square
Geotextile :
250g-400g
Description

Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier

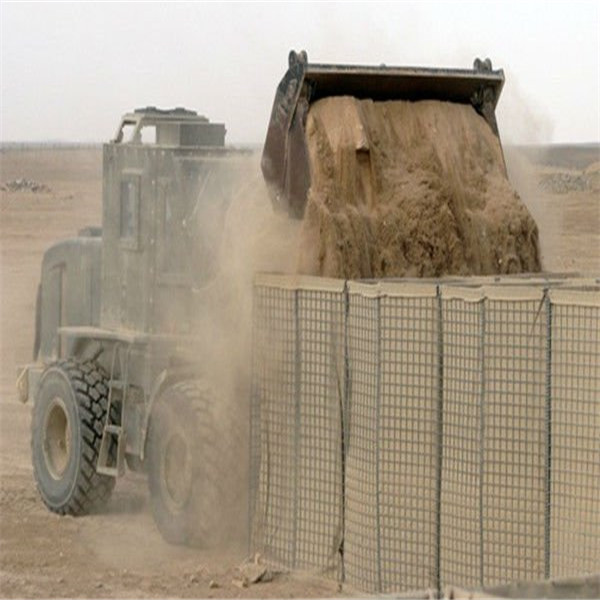

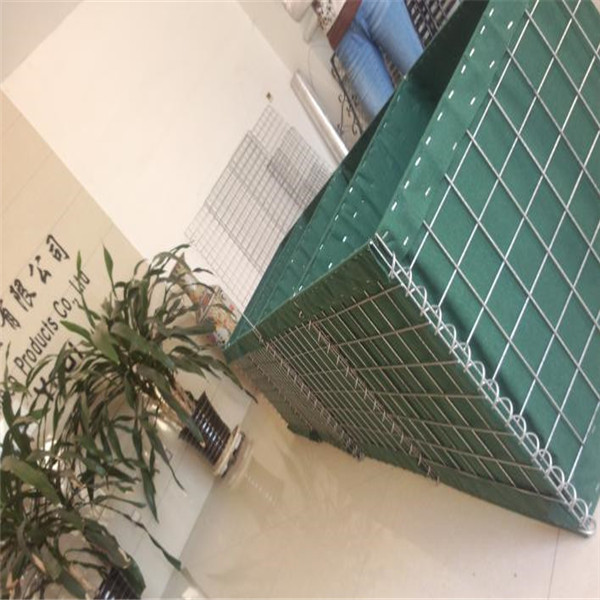

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units
Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier

Specification

Wire diameter 3.85mm,4mm,5mm etc
Mesh Size 75mmx75mm etc
Spring wire diameter 3mm,4mm,5mm etc
Panel Finish Hot dipped galvanized or Galfan coated
Geotextile Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing Wrapped with shrink film or packed in pallet
PRODUCT ITERM NO.
HEIGHT
WIDTH
LENGTH
CELLS NO.
MIL1 5442R
54''(1.37M)
42''(1.06M)
32'9''(10M)
5+4 cells
MIL2 2424R
24'' (0.61M)
24''(0.61M)
4'(1.22M)
2 cells
MIL3 3939R
39''(1.00M)
39''(1.00M)
32'.9''(10M)
5+5 cells
MIL4 3960R
39''(1.00M)
60''(1.52M)
32'.9''(10M)
5×2+5×2 cells
MIL5 2424R
24''(0.61M)
24''(0.61M)
10'(3.05M)
5 cells
MIL6 6624R
66''(1.68M)
24''(0.61M)
10'(3.05M)
5 cells
MIL7 8784R
87''(2.21M)
84''(2.13M)
91'(27.74M)
5+4+4 cells
MIL8 5448R
54''(1.37M)
48''(1.22M)
32'.9''(10M)
5+4 cells
MIL9 3930R
39''(1.00M)
30''(0.76M)
30''(9.14M)
6+6 cells
MIL10 8760R
87''(2.21M)
60''(1.52M)
100'(30.50M)
5+5+5+5 cells
MIL11 4812R
48''(1.22M)
12''(0.30M)
4'(1.22M)
2 cells
MIL12 8442R
84''(2.13M)
42''(1.06M)
108'(33M)
5+5+5+5+5+5 cells
MIL19 10842R
108''(2.74M)
42''(1.06M)
10'5''(3.18M)
6 cells


Panel size: 2.21m x2.13m, 1.37m x1.06m, 0.61m x0.61m, also can be customized.
Finish: electro galvanized, hot dipped galvanized, Alu-Zinc coated after welded
Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier

Applications

Perimeter security and defense walls

Equipment revetments

Personnel and material bunkers

Observation points

Defensive firing positions

Guard posts

Explosives and contraband search areas

Highway checkpoints

Border crossing checkpoints

Protecting existing structures

Flood control retaining wall

Coastal erosion


Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier

Packing & Delivery

Military Hesco Barriers Packaging:
hesco barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
Galvanized Hesco Gabion Cage Retaining Wall Welded Hesco Flood Barriers for Sale/Military Sand Wall Hesco Barrier

Min. Order

* If have stock, any quantity is ok .

* If no Stock, 50 mtrs

* Payment terms: T/T, L/C ,Paypal ,West Union etc.

* Trade term : EXW or FOB Tianjin
