HRG 200 Hollow Rotary Table
Output Platform Support :
Crossed Roller Bearing
Shift Motion :
360°（Rotation at any Angle)
Matching Motor(Size) :
Φ19-Φ70-Φ90-M6
Reduction Ratio :
10, 18
Rated Output Torque :
112NM
Max Acceleration Torque :
201.6NM
Emergency Stop Torque :
336NM
Operating temperature :
－10℃~90℃
Level of Production :
IP65
Level of Noise :
≤65dB
Description

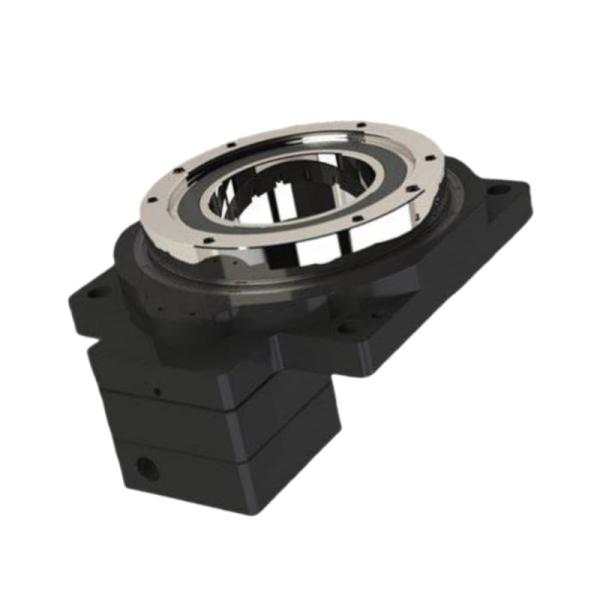

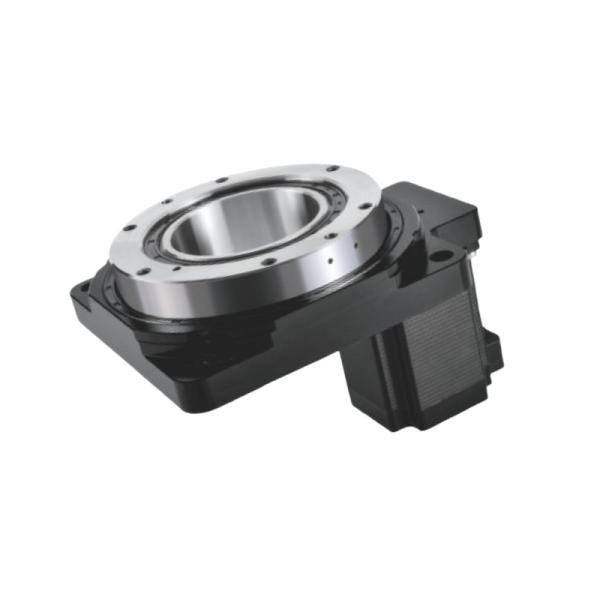

HRG 200 Series Hollow Rotary Table

The hollow rotary platform is a mechanical device designed to provide precise rotational motion while allowing for the passage of cables, pipes, or other components through its center. This unique design offers several advantages, including improved versatility and convenience in various applications.

Structure of a Hollow Rotary Platform

Base Frame:

The foundational support that houses all other components. It provides stability and rigidity to the entire assembly.

Rotating Disc:

The main platform that rotates around a central axis. It is where workpieces are mounted and is typically designed for high precision.

Hollow Center:

The central opening that allows for the passage of cables, pipes, or other components, enabling cleaner installations and easier routing.

Crossed Roller Bearings:

Precision bearings that support the rotating disc. Their configuration allows for high load capacity and rigidity, ensuring smooth rotation.

Drive Mechanism:

This includes the motor (usually a servo or stepper motor) and associated gearing (like helical gears) that provide the necessary torque and control for rotation.

Adjustable Clearance Mechanism:

A system that allows for the fine-tuning of the gap between gears to minimize backlash and enhance positioning accuracy.

Input Shaft and Flange:

Components that connect the motor to the platform. Customizable interfaces allow for compatibility with various motor brands and types.

Control Interface:

Electronic components or systems that manage the motor's operation, providing control over rotation speed, direction, and positioning.

Mounting Points:

Locations on the platform for securing workpieces or fixtures, ensuring stability during operation.

Performance Parameter

HRG200-10K
Output Platform Support Crossed Roller Bearing Permissible Output Speed 200rpm Rotational Inertia 27169x10-6 kg.m2
Shift Motion 360°(Rotation at any Angle) Repetitive Positioning Accuracy ±15 arc sec Positioning Accuracy ≤30 arc sec
Matching Motor(Size) Φ19-Φ70-Φ90-M6 Allowable Axial Load 4000N Lubrication Synthetic Grease
Reduction Ratio 10 Allowable Radial Load 2500N operating temperature －10℃~90℃
Rated Output Torque 112NM Parallelism of Output Platform 0.02mm Service Life 20000h
Max Acceleration Torque 201.6NM Runout of Output Platform Surface 0.01mm Level of Production IP65
Emergency Stop Torque 336NM Runout of Output Platform Excircle 0.01mm Level of Noise ≤65dB
HRG200-18K
Output Platform Support Crossed Roller Bearing Permissible Output Speed 200rpm Rotational Inertia 27169x10-6 kg.m2
Shift Motion 360°(Rotation at any Angle) Repetitive Positioning Accuracy ±15 arc sec Positioning Accuracy ≤30 arc sec
Matching Motor(Size) Φ19-Φ70-Φ90-M6 Allowable Axial Load 4000N Lubrication Synthetic Grease
Reduction Ratio 18 Allowable Radial Load 2500N operating temperature －10℃~90℃
Rated Output Torque 85NM Parallelism of Output Platform 0.02mm Service Life 20000h
Max Acceleration Torque 153NM Runout of Output Platform Surface 0.01mm Level of Production IP65
Emergency Stop Torque 680NM Runout of Output Platform Excircle 0.01mm Level of Noise ≤65dB

Drawings

Low Noise High Torque Precision Ratio 18 Rotary Table Gear Driving Accurate positioning Hollow Rotating PlatformLow Noise High Torque Precision Ratio 18 Rotary Table Gear Driving Accurate positioning Hollow Rotating Platform

Installation instructions for Hollow Rotary Table

Low Noise High Torque Precision Ratio 18 Rotary Table Gear Driving Accurate positioning Hollow Rotating Platform

Applications of Hollow Rotary Platform

Robotics:

Used in robotic arms and manipulators for precise positioning and movement in assembly tasks and material handling.

Automation Systems:

Integrated into automated production lines for tasks such as sorting, packaging, and palletizing, where accurate rotational motion is essential.

CNC Machining:

Employed in CNC machines for precise rotation of workpieces during milling, drilling, and turning operations.

Medical Equipment:

Utilized in medical devices such as imaging systems, surgical robots, and laboratory automation for accurate positioning and movement.

Aerospace and Defense:

Applied in flight simulators, radar systems, and UAVs for precise orientation and stabilization.

Telecommunications:

Used in antenna positioning systems to ensure accurate alignment for optimal signal transmission.

Test and Measurement:

Integrated into testing equipment for rotating samples or components to evaluate performance under various conditions.

Entertainment and Media:

Utilized in camera rigs and lighting systems for smooth and controlled movement in film production and live events.

Industrial Equipment:

Applied in conveyors and sorting systems where rotational motion is needed for efficient material handling.

Research and Development:

Used in laboratories and research facilities for experimental setups requiring precise angular adjustments.

Packing and Shipping

Low Noise High Torque Precision Ratio 18 Rotary Table Gear Driving Accurate positioning Hollow Rotating Platform
