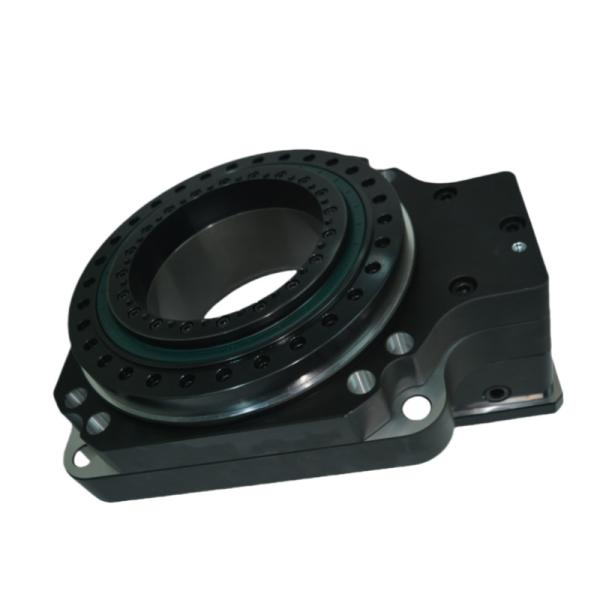

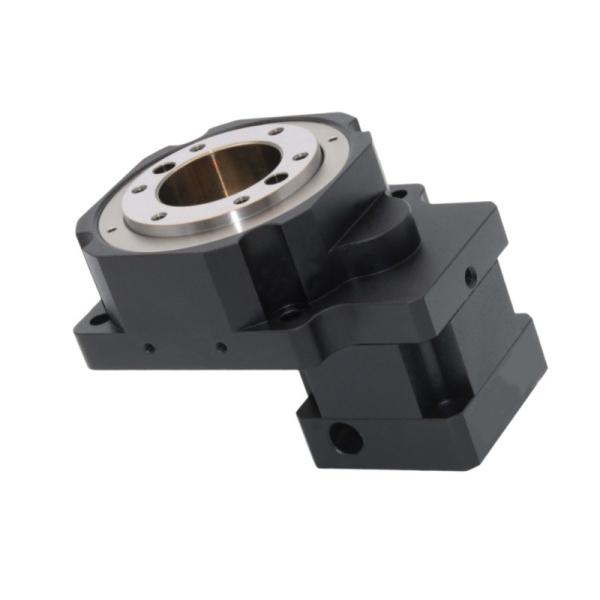

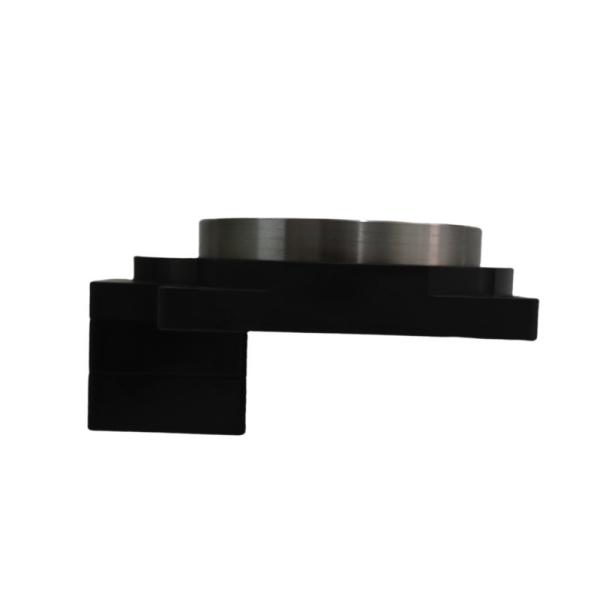

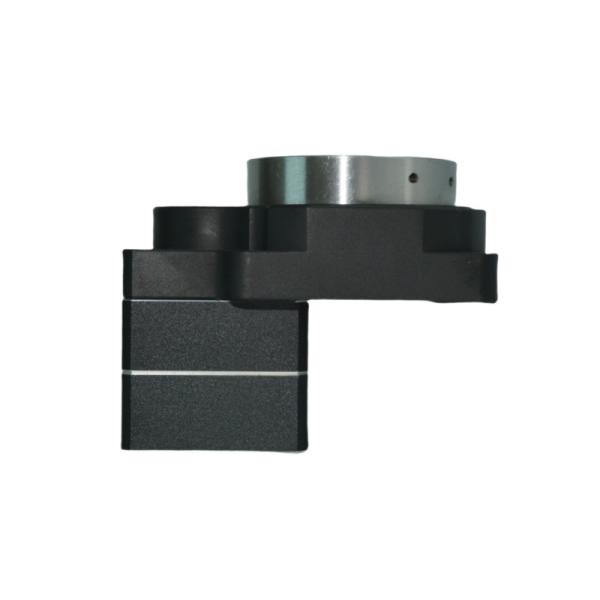

HRG 130 Series Hollow Rotary Table

The hollow rotary platform is an advanced mechanical device designed for precise rotational motion applications. It features a unique hollow design that allows for easy routing of cables and pipes, enhancing its versatility in various setups.

Key Features

High Precision:

Achieves repeat positioning accuracy of less than 5 arc seconds, ensuring reliable performance in demanding applications.

High Rigidity:

Supported by precision crossed roller bearings, the platform can withstand significant radial, axial, and overturning forces, providing over ten times the rigidity of traditional bearings.

Flexible Motor Compatibility:

Easily configurable to accommodate various brands and types of motors, including servo and stepper motors, through customizable flanges and input shafts.

Efficient Torque Output:

Utilizes a single-stage helical gear reduction mechanism to increase output torque, with gears rated below level 5 for precision.

Convenient Loading:

The platform surface allows for direct locking of workpieces, streamlining the loading process and enhancing operational efficiency.

Smooth Operation:

Designed for stable and smooth rotation, ensuring quick positioning and minimal vibration during operation.

Robust Construction:

Built to endure a variety of operational stresses while maintaining high performance, making it suitable for industrial and automation applications.

The hollow rotary platform is ideal for applications requiring high precision, flexibility, and robustness, making it a valuable asset in robotics, manufacturing, and automation industries.

High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator Model Specification Hollow diameter Ratio
(mm) (mm)

HRG130-06K
HRG130-10K

HRG130-18K

 130 62

6

10

18

Performance Parameter

HRG130-06/10/18K
Output Platform Support Crossed Roller Bearing Permissible Output Speed 200rpm Rotational Inertia 2772x10-6 kg.m2
Shift Motion 360°(Rotation at any Angle) Repetitive Positioning Accuracy ±15 arc sec Positioning Accuracy ≤30 arc sec
Matching Motor(Size) —— Allowable Axial Load 2000N Lubrication Synthetic Grease
Reduction Ratio 18 Allowable Radial Load 1200N operating temperature ‘－10℃~90℃
Rated Output Torque 25NM Parallelism of Output Platform 0.02mm Service Life 20000h
Max Acceleration Torque 45NM Runout of Output Platform Surface 0.01mm Level of Production IP65
Emergency Stop Torque 75NM Runout of Output Platform Excircle 0.01mm Level of Noise ≤65dB
HRG130-18K Hollow Stepping Direct Connection All-in-one Machine
Output Platform Support Crossed Roller Bearing Permissible Output Speed 200rpm Rotational Inertia 2772x10-6 kg.m2
Shift Motion 360°(Rotation at any Angle) Repetitive Positioning Accuracy ±15 arc sec Positioning Accuracy ≤30 arc sec
Matching Motor(Size) Φ14-Φ50-Φ70-M4 Allowable Axial Load 2000N Lubrication Synthetic Grease
Reduction Ratio 6 10 18 Allowable Radial Load 1200N operating temperature ‘－10℃~90℃
Rated Output Torque 43NM 34NM 25NM Parallelism of Output Platform 0.02mm Service Life 20000h
Max Acceleration Torque 77.4NM 61.2NM 45NM Runout of Output Platform Surface 0.01mm Level of Production IP65
Emergency Stop Torque 129NM 102NM 75NM Runout of Output Platform Excircle 0.01mm Level of Noise ≤65dB

Detailed Images

High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator

Drawings

High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox ActuatorHigh Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator

Installation instructions for Hollow Rotary Table

High Torque Precision Hollow Rotary Table High Precision Hollow Rotary Gearbox Actuator

Applications of Hollow Rotary Platform

Robotics:

Used in robotic arms and manipulators for precise positioning and movement in assembly tasks and material handling.

Automation Systems:

Integrated into automated production lines for tasks such as sorting, packaging, and palletizing, where accurate rotational motion is essential.

CNC Machining:

Employed in CNC machines for precise rotation of workpieces during milling, drilling, and turning operations.

Medical Equipment:

Utilized in medical devices such as imaging systems, surgical robots, and laboratory automation for accurate positioning and movement.

Aerospace and Defense:

Applied in flight simulators, radar systems, and UAVs for precise orientation and stabilization.

Telecommunications:

Used in antenna positioning systems to ensure accurate alignment for optimal signal transmission.

Test and Measurement:

Integrated into testing equipment for rotating samples or components to evaluate performance under various conditions.

Entertainment and Media:

Utilized in camera rigs and lighting systems for smooth and controlled movement in film production and live events.

Industrial Equipment:

Applied in conveyors and sorting systems where rotational motion is needed for efficient material handling.

Research and Development:

Used in laboratories and research facilities for experimental setups requiring precise angular adjustments.
