High strength Alloy20 nickel-based alloy steel plate NO8020 alloy tube sheet forging fast delivery
High strength Alloy20 nickel-based alloy steel plate NO8020 alloy tube sheet forging fast delivery
High strength Alloy20 nickel-based alloy steel plate NO8020 alloy tube sheet forging fast delivery
High strength Alloy20 nickel-based alloy steel plate NO8020 alloy tube sheet forging fast delivery
Specifications
Brand Name :
Zhonggong Special Metallurgy
Model Number :
N08020 high-temperature alloy tube plate
Place of Origin :
China
MOQ :
100KG
Price :
Price is negotiated based on the required specifications and quantity
Payment Terms :
Payment Terms: Mainly T/T.. L/C, D/A, D/P,
Supply Ability :
5000 tons per month
Delivery Time :
5-8 working days, depending on the parameters required for negotiation
Packaging Details :
Standard export packaging, or packaging as required
Density :
8.75 g/cm³
Melting point is about :
1300-1350°c
Tensile strength up to :
650 MPa
Width :
1000mm 1219mm 1500mm or as required
Services :
Cutting, Bending
Packing Details: :
Export with wooden pallet and waterproof paper packaging
corrosion resistance :
Good
Thickness :
1-60 mm
Certification :
ISO Certificate
Description

High strength Alloy20 nickel-based alloy rod N08020 alloy tube sheet NO8020 forged steel plate.

Products Specification

Products Alloy 20 / N08020 Stainless Steel Plate
Thickness 1- 60mm
Width 1000mm 1219mm 1500mm or as request
Standard ASTM A240/240M-18
Service Cutting , bending , surface finishing
Other Grade

201 202 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 444

2205 2507 904L 254SMO 253MA N08020 C276 625 600 800 825 monel 400 500.etc
Standard Size 1000*2000mm 1219*2438mm 1500*6000mm

About N08020 / Alloy 20 material

UNS N08020, also known as Alloy 20 is one of the “super” stainless steels developed for maximum resistance to acid attack, because of this, there are various uses for it in both the stainless and nickel industries. Alloy 20 seems to fall in-between both the stainless and nickel categories, as it does contain characteristics of both; however, the unified numbering system (UNS) does ultimately recognize it as a nickel based alloy, hence the UNS N08020 number.

Alloy 20 is an austenitic nickel-iron-chromium based alloy with additions of copper and molybdenum. Its nickel content aids in its chloride ion stress and corrosion resistance. The addition of copper and molybdenum provides resistance to hostile environments, pitting and crevice corrosion. Chromium adds to its resistance of oxidizing environments, such as nitric acid, and columbium (or niobium) reduces the effects of carbide precipitation. Most welding methods can be used when working with Alloy 20, except for oxyacetylene welding. It can also be hot formed using the same forces required to hot work austenitic stainless steels. In terms of machineability, outstanding finishes are possible using the same set-up and process speeds used for austenitic stainless steels, such as Stainless Steels 316 or 317.

Grade Specification
UNS TYPE AMS ASTM FEDERAL CHARACTERISTICS
N08020 Alloy 20 – A-473 – Excellent corrosion resistance & relatively easy fabrication.

Chemical Compositon
C MN P S SI CR NI MO CU OTHER M/NM
.07 Max 2. Max .045 Max .035 Max 1. Max 19. – 21. 32. – 38. 2. – 3. 3. – 4. NM

Application of N08020 Alloy

  • Chemical
  • Flue gas desulfurization
  • Food processing
  • Industrial fluid handling
  • Metal cleaning
  • Mixing
  • Petroleum
  • Pharmaceuticals
  • Pickling
  • Plastics
  • Process piping
  • Solvents
  • Synthetic fiber
  • Synthetic rubber

Standard Specification of Alloy 20

Alloy 20 Bars ASTM B 473
Alloy 20 Plate ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464
Alloy 20 Sheet ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464
Alloy 20 Strip ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464
Alloy 20 Wire ASME SB-473 ASME SB-366, ASTM B 473, ASTM B 366
Alloy 20 Weld Wire AWS ER320LR, ASTM Weld Tube B468
Alloy 20 Weld Pipe ASTM B464
Alloy 20 Other UNS N08020, Werkstoff Nr. 2.4660, Covered Electrodes AWS E320LR, Fordings ASTM B462

Products Show

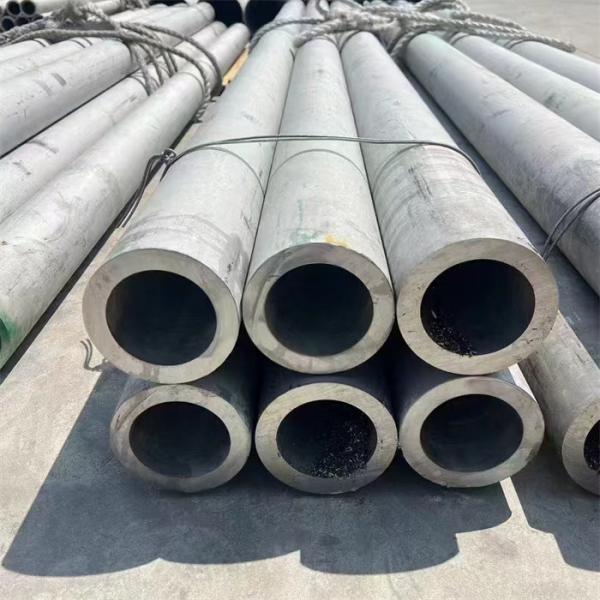

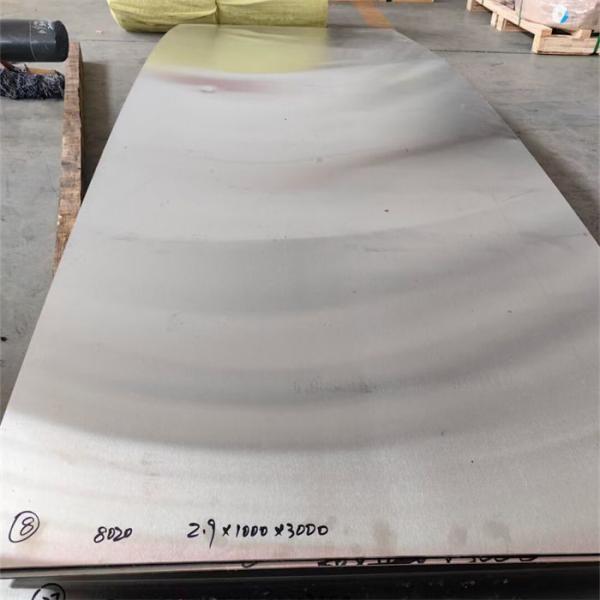

High strength Alloy20 nickel-based alloy steel plate NO8020 alloy tube sheet forging fast deliveryHigh strength Alloy20 nickel-based alloy steel plate NO8020 alloy tube sheet forging fast delivery
