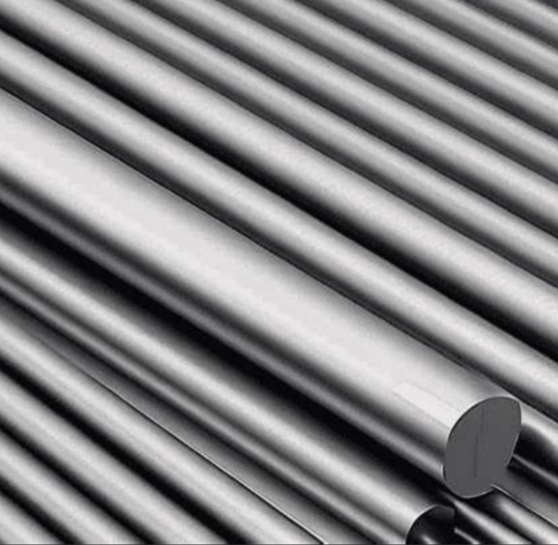

High Strength Inconel 230 Alloy Chromium Cobalt Nickel Alloy 8.4g/cm3
High Strength Inconel 230 Alloy Chromium Cobalt Nickel Alloy 8.4g/cm3
High Strength Inconel 230 Alloy Chromium Cobalt Nickel Alloy 8.4g/cm3
High Strength Inconel 230 Alloy Chromium Cobalt Nickel Alloy 8.4g/cm3
Specifications
Brand Name :
Zhonggong Special Metallurgy
Model Number :
Inconel 230
Place of Origin :
China
MOQ :
100KG
Price :
Price is negotiated based on the required specifications and quantity
Payment Terms :
Payment Terms: Mainly T/T.. L/C, D/A, D/P,
Supply Ability :
5000 tons per month
Delivery Time :
5-8 working days, depending on the parameters required for negotiation
Packaging Details :
Standard export packaging, or packaging as required
Name :
Inconel 230
Chemical Composition :
Ni (balance), Cr (20.0-24.0%), Co (10.0-15.0%), Mo (0.5-1.5%), Al (0.5-1.5%), Ti (0.3-0.8%), C (0.1% max), Mn (1.0% max), Si (0.5% max), S (0.015% max), P (0.015% max)
Density :
8.4g/cm3
Melting Point :
1360-1400°C
Tensile Strength :
760 MPa (110 ksi)
Yield Strength :
410 MPa (60 ksi)
Elongation :
30% (minimum)
Modulus of Elasticity :
210 GPa
Thermal Conductivity :
12.0 W/m·K
Specific Heat Capacity :
0.43 J/g·K
Corrosion Resistance :
Excellent resistance to oxidation and high-temperature environments
Applications :
Gas turbines, heat exchangers, industrial furnaces
Certification :
ISO Certificate
Description

Inconel 230: Nickel-Chromium Alloy With High Strength And Excellent Resistance To Oxidation At Elevated Temperatures

Inconel 230 Alloy

Inconel 230 is a high-performance nickel-chromium-cobalt alloy engineered for exceptional strength and resistance to oxidation at elevated temperatures. This alloy is designed to provide reliable performance in extreme environments, making it suitable for applications in aerospace, industrial, and energy sectors.

Key Features:

  • High-Temperature Strength: Inconel 230 maintains its mechanical properties at temperatures up to 1300°C (2372°F), offering high tensile strength (up to 760 MPa or 110 ksi) and yield strength (410 MPa or 60 ksi). It is well-suited for high-temperature applications where strength and durability are crucial.
  • Excellent Oxidation Resistance: The alloy provides outstanding resistance to oxidation and carburization, making it ideal for use in environments exposed to high temperatures and aggressive conditions.
  • Thermal Properties: With a thermal conductivity of approximately 12.0 W/m·K, Inconel 230 ensures effective heat distribution and resistance to thermal cycling.
  • Mechanical Flexibility: The alloy features a minimum elongation of 30%, allowing it to withstand significant deformation while maintaining its structural integrity.
  • Fabrication Versatility: Available in various forms, including sheets, plates, bars, pipes, and welding wire, Inconel 230 can be easily adapted for a wide range of industrial and engineering applications.

Applications:

  • Gas Turbines: Used in components such as turbine blades and vanes that operate under high-temperature conditions.
  • Heat Exchangers: Ideal for parts exposed to high temperatures and aggressive environments in industrial heat exchangers.
  • Industrial Furnaces: Suitable for furnace components requiring high resistance to oxidation and thermal degradation.

Standard Specifications:

  • ASTM B453
  • ASTM B467
  • ASTM B564

Inconel 230 combines high strength, excellent oxidation resistance, and robust thermal stability, making it a preferred choice for critical applications in extreme environments where reliability and performance are essential.

Here is a detailed composition table for Inconel 230 Alloy:

Element Range Typical Value
Nickel (Ni) Balance 60.0%
Chromium (Cr) 20.0 - 24.0% 22.0%
Cobalt (Co) 10.0 - 15.0% 12.0%
Molybdenum (Mo) 0.5 - 1.5% 1.0%
Aluminum (Al) 0.5 - 1.5% 1.0%
Titanium (Ti) 0.3 - 0.8% 0.5%
Carbon (C) ≤0.1% 0.05%
Manganese (Mn) ≤1.0% 0.8%
Silicon (Si) ≤0.5% 0.4%
Sulfur (S) ≤0.015% 0.01%
Phosphorus (P) ≤0.015% 0.01%

This composition ensures that Inconel 230 provides high strength, excellent oxidation resistance, and durability in high-temperature applications.
