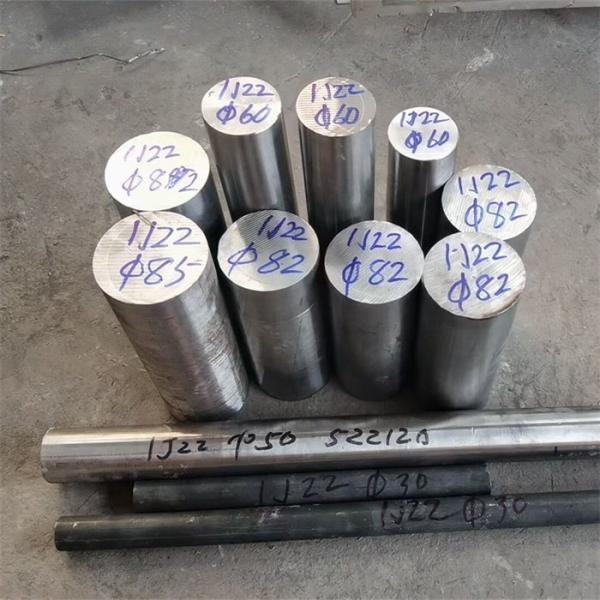

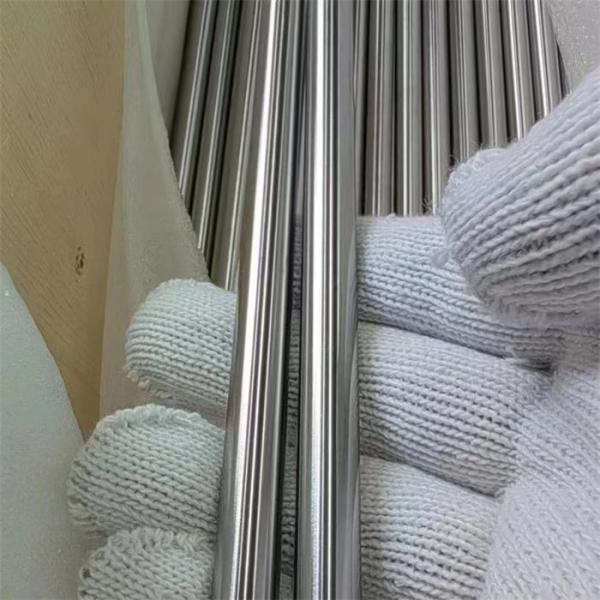

High magnetic permeability 1j22 soft magnetic precision alloy rod Hiperco 50 optical round rod

Introduction to 1j22 material:

1J22 is a high saturation magnetic induction iron cobalt vanadium soft magnetic alloy. ‌

1J22 alloy has the following characteristics:

High saturation magnetic induction intensity: Among existing soft magnetic materials, 1J22 has the highest saturation magnetic induction intensity, reaching 2.4T. ‌1
High Curie point: With a Curie point of 980 ℃, it can operate at higher temperatures where other soft magnetic materials have completely demagnetized, maintaining good magnetic stability.
Large magnetostriction coefficient: The maximum saturation magnetostriction coefficient is 60-100 × 10-6, which is extremely suitable for making magnetostrictive transducers with high output energy and high work efficiency.

The chemical composition of 1J22 mainly includes elements such as iron, cobalt, vanadium, carbon, manganese, silicon, phosphorus, sulfur, copper, nickel, etc. ‌
The specific ingredients are as follows:

Iron (Fe): Excess
Cobalt (Co): 49.0-51.0%
Vanadium (V): 0.80-1.80%
Carbon (C): ≤ 0.04%
Manganese (Mn): ≤ 0.30%
Silicon (Si): ≤ 0.30%
Phosphorus (P): ≤ 0.020%
Sulfur (S): ≤ 0.020%
Copper (Cu): ≤ 0.20%
Nickel (Ni): ≤ 0.50%
The precise ratio of these components ensures the high saturation magnetic induction intensity and good mechanical properties of 1J22.

The density of 1J22 alloy is 8.20g/cm ³. ‌‌

The physical properties of 1J22 alloy include:

Magnetic properties: The saturation magnetic induction intensity is 2.4T, and the Curie point is 980 ℃.
Electrical performance: The resistivity is 0.27 μ Ω· m, which is not suitable for use at high frequencies.
Thermal performance: The thermal conductivity is 7.7 W/(m · K), and the coefficient of thermal expansion is 5.1 × 10 ^ -6/K.
The chemical composition of 1J22 alloy mainly includes elements such as iron, chromium, and cobalt, among which the content of cobalt has a significant impact on the magnetic properties of the alloy.

Characteristics of 1J22 alloy:

Ultra high strength: The tensile strength of 1J22 alloy can reach over 2000 MPa, which is several times that of ordinary steel.

Good processing performance: This alloy is easy to cut, forge, and weld, making it suitable for manufacturing complex precision components.

Wear resistance: 1J22 alloy has extremely high hardness and excellent wear resistance, reducing the risk of wear during use.

Corrosion resistance: The chromium element in the alloy gives it the ability to resist acid and alkali corrosion, allowing it to maintain excellent performance in harsh environments.
