Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
Specifications
Brand Name :
HT
Model Number :
Stainless Steel S34709
Certification :
ISO,BV,SGS
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram,30% T/T IN ADVANCE 70% BEFORE SHIPMENT, L/C
Supply Ability :
10000 PIECES PER YEAR
Delivery Time :
15-20 Working Days
Packaging Details :
Woodcase, pallet, woven bag etc. or as per your requirement
Size :
5~500mm
Process :
Forged
Surface :
Black or Bright or Pickling White
Application :
Chemical /Oil/Gas/Energy
Standard :
SUS, AISI, DIN
Material :
Stainless Steel
Diameter Tolerance :
H7 H9 H10 H11
product name :
Round bar
Description

Stainless Steel S34709 BAR 347H Round ROD

1.What is Stainless Steel 347H Bar/

This 347 alloy is austenitic, stabilized as well as chromium steel containing alloy, also it contains columbium which enables elimination of the carbide precipitation as well as intergranular corrosion test. This alloy bar is stabilized by adding tantalum as well as chromium. It offers the higher creep as well as stress rupture properties, that may be used for exposure where intergranular as well as sensitization are of concern. Adding of columbium enables this alloy to have the best corrosion resistance. this Stainless Steel 347H Bar shows use in the fabrication of the equipment which are to be placed in the severe corrosive conditions. This grade of a bar can easily be annealed at the temperature ranging between 1010 °C to 1193°C.

2.SS 347H Round Bar Equivalent Grades :

STANDARD WERKSTOFF NR. UNS
SS 347H 1.4961 S34709

Chemical Composition of Stainless Steel 347H Rods

Grade C Mn Si P S Cr Ni Ti
347H 0.04 – 0.10 2.00 max. 0.75 max. 0.045 max. 0.03 max. 17.0 – 19.0 9.0-13.0 8 x C min.
(1.00 max.)

Mechanical Properties of SS 347H Bars

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1454 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Standard 347 / 1.4550
347H / 1.4961
Designation ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479
Range 3 MM TO 350 MM DIA
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Application Chemical Processing, Food Processing – equipment and storage, Petroleum Refining – fluid catalytic cracking units, polythionic acid service, Pharmaceutical Production, Waste Heat Recovery – recuperators,

We exports Stainless Steel 347/347H Round Bars, Stainless Steel 347/347H Round Bars & Rods, Stainless Steel UNS S34700/S34709 Round Bars & Rods, ASTM A276 347/347H SS Bright & Black Bar, SS 347/347H Round bar to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Philippines.

3.Stainless Steel Round Bars

4.Product specification

Product Types Round Bar Square Bar Hexagon Bar Flat Bar
Surface Black or Bright or Pickling White
Standard SUS, AISI, DIN
Manufacture Technique Hot Rolling, Cold-drawing
Diameter 5~500mm
Length ≦12M or As Per Client's Requirements.
Diameter Tolerance H7 H9 H10 H11
Material Standard Nickel Alloy ASTM/ASME SB 425 Alloy 825/Incoloy 825/UNS N08825
ASTM/ASME SB 446 Alloy 625/UNS N06625
ASTM/ASME SB164 Monel 400/Alloy 400/UNS N04400
ASTM/ASME SB 408 Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 800/Incoloy 800/UNS N08800, Alloy 800H/Incoloy 800H/UNS N08810
ASTM/ASME SB 649 Alloy 925/Incoloy 925/UNS N09925, Alloy 926/Incoloy 926/UNS N08926, Alloy 31/UNS N08031
ASTM/ASME SB 166 Alloy 600/Inconel 600/UNS N06600,Alloy 601/Inconel 601/UNS N06601
ASTM/ASME SB160 Alloy 200/UNS N02200, Alloy 201/UNS N02201
ASTM/ASME SB 472 Hastelloy C-276/UNS N10276,Alloy 926/Incoloy 926/UNS N08926, Alloy 31/UNS N08031,Alloy 20/N08020, Alloy C-22/Hastelloy C-22/N06022, Alloy 600/Inconel 600/UNS N06600,
ASTM/ASME SB 473 Alloy 20/UNS N08020
ASTM/ASME SB 574 Hastelloy C-276/UNS N10276
ASTM/ASME SB 637 Alloy 718/Inconel 718/N07718
Stainless Steel ASTM/ASME SA 276 304/SUS304/UNS S30400, 304L/UNS S30403, 316/UNS S31600, 316Ti/UNS S31635, 316H/UNS S31609, 316L/UNS S31603, 310S/UNS S31008, 321/UNS S32100, 321H/UNS S32109, 347/UNS S34700, 347H/UNS S34709, F51/S31803/2205, F53/S32750/2507, F55/S32760, F44/S31254/254SMO, S31050/1.4466, F904L/N08904,
ASTM/ASME SA 479 304H/UNS S30409
Carbon Steel and Low Alloy Steel ASTM/ASME SA 694 F42, F46, F48, F50, F52, F56, F60, F65, F70
ASTM/ASME SA 350 LF2, LF3
ASTM A105/ASME SA105

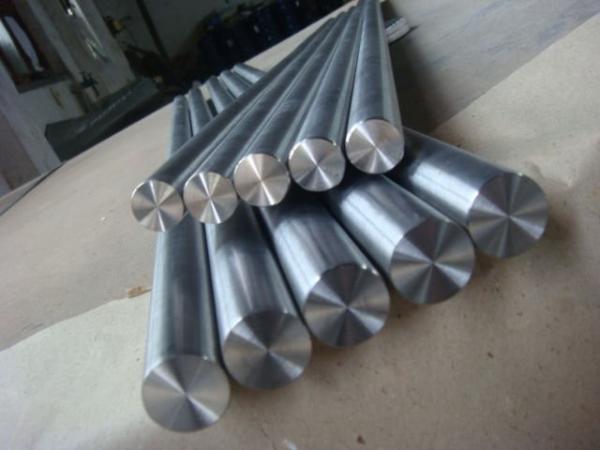

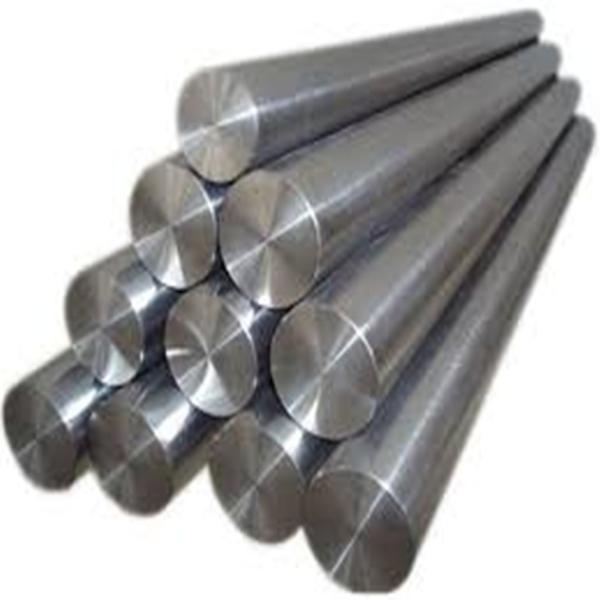

5.Pictures showing

Stainless Steel S34709 BAR 347H Round ROD stainless steel round bar price per kg
