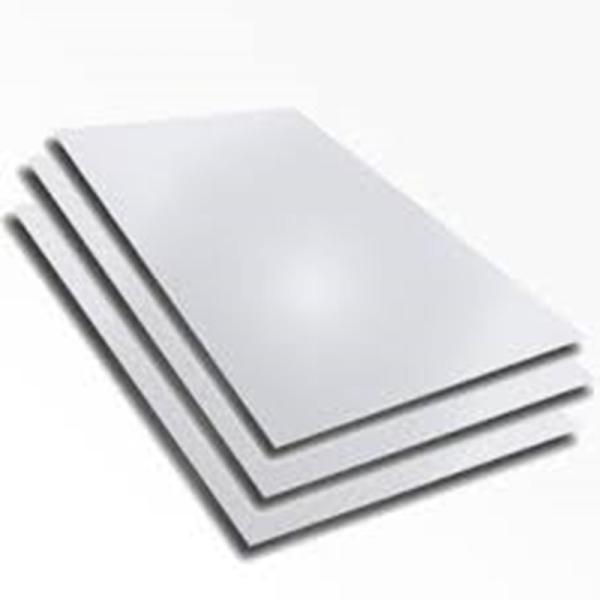

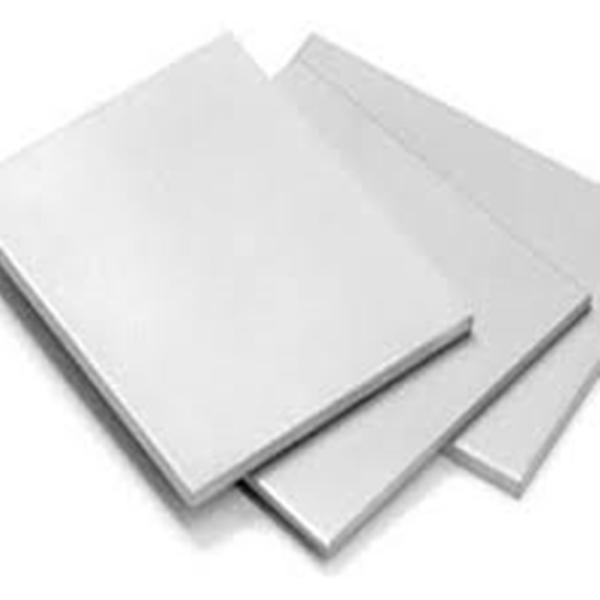

ASTM B443 UNS N06625 inconel 625 nickel alloy steel plate sheet coil
ASTM B443 UNS N06625 inconel 625 nickel alloy steel plate sheet coil
ASTM B443 UNS N06625 inconel 625 nickel alloy steel plate sheet coil
ASTM B443 UNS N06625 inconel 625 nickel alloy steel plate sheet coil
Specifications
Brand Name :
HT
Model Number :
ASTM B443 UNS N06625 inconel 625 nickel alloy steel plate sheet coil
Certification :
ISO,BV,SGS
Place of Origin :
China,USA,GERMANY,JAPAN
MOQ :
100kg
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100kg per month
Delivery Time :
3-50 days
Packaging Details :
steel frame or as per the clients' request
Type :
Plate, Sheet,Strip, Coil
Length :
0~12m or as per the client's requirements
Width :
0~2500mm or as per the client's requirements
Thickness :
0.3~1200mm or as per the client's requirements
Process :
Hot/Cold Rolled
Surface :
No.1 No.2D No.2B BA No.3 No.4 No.6 No.7
Packing :
Steel Frame, waterproof paper, wooden pallet, wooden case or as per the client's requirements
Origin :
USA, GERMANY,JAPAN,China
Description

ASTM B443 UNS N06625 inconel 625 nickel alloy steel plate sheet coil

1.Information

Inconel 625 is a nickel-based superalloy with excellent resistance to oxidation and corrosion, in conditions ranging from jet engine propulsion systems to chemical processing of oxidizing and reducing acids. The nickel-chromium matrix of Inconel® 625 is reinforced by the addition of molybdenum and niobium, which is alloyed through solid solution strengthening, and this allows it to maintain high strength and toughness at temperatures ranging from cryogenic up to 2000°F (1093°C). It is non-magnetic, austenitic, and displays high tensile strength, fabricability, and brazeability. Due to its high nickel content, this alloy is nearly immune to chloride ion stress-corrosion cracking and pitting, which is commonly found in metals in seawater applications like heat exchangers, fasteners, and cable sheathing.

2.Chemical Composition of Inconel 625
Element Percent by Weight
C Carbon 0.010 maximum
Mn Manganese 0.50 maximum
P Phosphorus 0.015 maximum
S Sulfur 0.015 maximum
Si Silicon 0.50 maximum
Cr Chromium 20.00 - 23.00
Ni Nickel Balance
Mo Molybdenum 8.00 - 10.00
Nb Columbium 3.15 - 4.15
Ti Titanium 0.40 maximum
Al Aluminum 0.40 maximum
Ta Tantalum 0.05 maximum
Fe Iron 5.00 maximum

3.Physical Properties

  • Density: 0.303 lb/in3 (8.44 g/cm3
  • Specific Gravity: 8.44
  • Melting Range: 2350 - 2460°F (1280 - 1350°C)
  • Specific Heat: 0.098 Btu/lb x °F (410 Joules/kg x °K)
  • Magnetic Permeability (75°F, 200 oersted): 1.0006

Thermal Conductivity
Temperature Range Linear Coefficients of Thermal Expansion1 · 10-6 Thermal Conductivity2 3
°C °F /°C /°F W/m·K Btu/(hr/ft²/in/°F)
-157 -250 - - 7.3 4.2
-129 -200 - - 7.4 4.3
-73 -100 - - 8.3 4.8
-18 0 - - 9.2 5.3
21 70 - - 9.9 5.7
38 100 - - 10.0 5.8
93 200 12.8 7.1 10.7 6.3
204 400 13.1 7.3 12.6 7.3
316 600 13.3 7.4 14.2 8.2
427 800 13.7 7.6 15.7 9.1
538 1000 14.0 7.8 17.5 10.1
649 1200 14.8 8.2 19.0 11.0
760 1400 15.3 8.5 20.8 12.0
871 1600 15.8 8.8 22.8 13.2
927 1700 16.2 9.0 - -
982 1800 - - 25.3 14.6
  1. Average coefficient from 70°F (21°C) to temperature shown
  2. Measurements made at Battelle Memorial Institute
  3. Material annealed 2100°F (1149°C)

Electrical Resistivity
Temperature microhm-cm
°C °F
21 70 128.9
38 100 129.6
93 200 131.9
204 400 133.9
316 600 134.9
427 800 135.9
538 1000 137.9
649 1200 137.9
760 1400 136.9
871 1600 135.9
982 1800 134.9
1093 2000 133.9

4.Mechanical Properties and Yield Strength

Mechanical Properties and Yield Strength of Alloy 625
Temperature 0.2% Yield Strength Ultimate Tensile Strength Elongation Percent
°F °C psi MPa psi MPa
1920 1065 63,000 430 136,000 940 51.5

The technical data provided is for information only and not for design purposes. It is not warranted or guaranteed.
