forged ASME B16.5 1/2-24 ASTM B381 F2 Ti WN SO BL flange manufacturer
forged ASME B16.5 1/2-24 ASTM B381 F2 Ti WN SO BL flange manufacturer
forged ASME B16.5 1/2-24 ASTM B381 F2 Ti WN SO BL flange manufacturer
forged ASME B16.5 1/2-24 ASTM B381 F2 Ti WN SO BL flange manufacturer
Specifications
Brand Name :
HT
Model Number :
forged ASME B16.5 1/2"-24" ASTM B381 F2 Ti WN SO BL flange manufacturer
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 piece per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
SOP SOH SW WN LJ TR
Name :
forged ASME B16.5 1/2"-24" ASTM B381 F2 Ti WN SO BL flange manufacturer
Size :
DN10-DN1000
Finish :
galvanizing, yellow, nature
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

forged ASME B16.5 1/2"-24" ASTM B381 F2 Ti WN SO BL flange manufacturer

1. Abstract

This specification covers 39 grades of annealed titanium and titanium alloy forgings as Grade F-1, Grade F-2, Grade F-2H, Grade F-3, Grade F-4, Grade F-5, Grade F-6, Grade F-7, Grade F-7H, Grade F-9, Grade F-11, Grade F-12, Grade F-13, Grade F-14, Grade F-15, Grade F-16, Grade F-16H, Grade F-17, Grade F-18, Grade F-19 Grade F-20, Grade F-21, Grade F-23, Grade F-24, Grade F-25, Grade F-26, Grade F-26H, Grade F-27, Grade F-28, Grade F-29, Grade F-30, Grade F-31, Grade F-32, Grade F-33, Grade F-34, Grade F-35, Grade F-36, Grade F-37, and Grade F-38. The grades of titanium and titanium alloy metal covered by this specification shall conform to the requirements as to chemical composition prescribed. Forgings supplied under this specification shall conform to the requirements as to mechanical properties specified, as applicable, such as tensile strength, yield strength, and elongation. Nondestructive test requirements such as ultrasonic test, X-ray, or surface inspection shall be specified by the purchaser, if required.

2. ASTM B381 F2 flange

Forged Pipe Fittings
Standard Types Class Rating/Schedule Ends Size
ASME B16.11 90°Elbow/ 45°Elbow/ Tee/ Cross 2000LB Threaded 1/4''~4''
90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling 3000LB/6000LB Threaded 1/4''~4''
Socket-welding 1/8''~4''
90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling 9000LB Socket-welding 1/2''~2''
Street Elbow 3000LB Threaded 1/8''~2''
6000LB 1/8''~1-1/2''
Lateral Tee 3000LB Socket-welding 1/4''~2''
6000LB 1/2''~1-1/2''
3000LB Threaded 3/8''~2‘’
6000LB 1/2''~2''
9000LB 1/2''~1-1/2''
Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug 3000LB/6000LB Threaded 1/8''~4''
MSS SP79 Reducer Inserts 3000LB/6000LB/9000LB Socket-welding 3/8‘’x1/4''~2x1/2''
MSS SP83 Union 3000LB Socket-welding/Threaded 1/8''~3''
MSS SP95 Concentric/Eccentric Swaged Nipples See Below Note1 1/4‘’~12''
Bull Plugs Threaded 1/8''~12''
MSS SP97 Weldolet STD, XS, Sch 160/XXS Butt-welding 1/8''~36‘’ or larger
Sockolet 3000LB/6000LB Socket-welding 1/8''~6''
Threadolet 3000LB/6000LB Threaded 1/8''~6''
Nipolet XS/XXS Plain/Threaded 1/2''~2''
Elbolet 3000LB/6000LB Socket-welding/Threaded 1/4''~2''
STD/XS/160/XXS Butt-welding 1/4''~2-1/2'' or larger
Latrolet 3000LB/6000LB Socket-welding/Threaded 1/2''~2''
STD/XS/160/XXS Butt-welding 1/2''~2-1/2''
Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
BS3799 Hex Nipple 3000LB/6000LB Threaded 1/8''~2''x1/2''
Bosses 3000LB Threaded 1/8''~2''
6000LB Threaded 1/8''~4''
Pipe Nipple 40/STD/80/XS /160/XXS See Below Note1 1/8''~6''
Material Grade Nickel Alloy ASTM / ASME B/SB 564 UNS N02200 (NICKEL200), UNS N04400 (MONEL 400), UNS N08825(INCOLOY825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N10276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)
Copper Alloy ASTM / ASME B/SB 151 UNS C70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
Stainless Steel ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex Steel ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61,F904L
Carbon Steel ASTM / ASME A/SA 105(N)
Low Temp Carbon Steel ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel ASTM / ASME A/SA694 F52 F56 F60, F65, F70
Alloy Steel ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
Titanium ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
Note1 PBE:Plain Both Ends BBE Bevel Both Ends TBE: Threaded Both Ends PSE:Plain Small End BSE:Bevel Small End TSE:Threaded Small End PLE:Plain Large End BLE:Bevel Large End TLE:Thread Large End
Note2 For the swage nipples,pipe nipples,the material can be referred to the pipe standard.
Note3 NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)

3. Chemical Composition of Titanium Gr 2 Flanges

Grade Ti C Fe H N O Al V
Titanium Gr 2 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max - -
Mechanical Properties of Titanium Gr 2 Flange
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %

4. ASTM B381 F2 flange

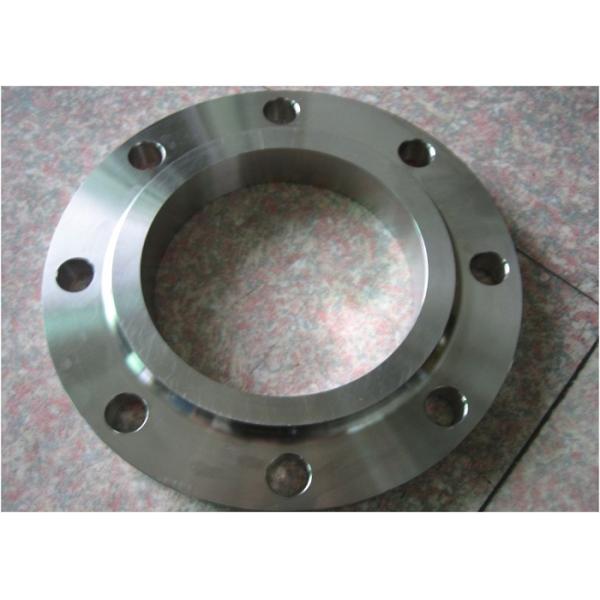

forged ASME B16.5 1/2
