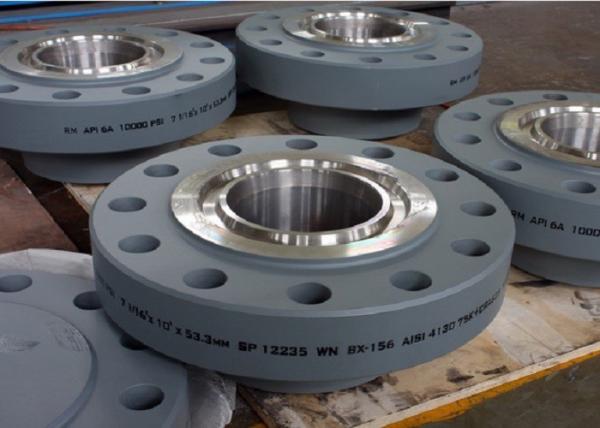

overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange
overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange
overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange
overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange
Specifications
Brand Name :
HT
Model Number :
overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 piece per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
SOP SOH SW WN LJ TR
Name :
overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange
Size :
DN10-DN1000
Finish :
galvanizing, yellow, nature
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

overclad BX-156 ASTM4130 75K+CRA625 NACE WN SO SW BL TH flange

1. Cladding service

  • cladding service for Flanges, Valve bodies, Pipe fittings,Pipes.
  • UT before cladding, dimenison check, 100% postweld heat treatment,and clad products final machining after cladding.
  • Inconel 600, 625, Incoloy 800, 825, Stellite,SS31803, 2205, SS32760, 2507, 904L, 304/304L, 316/316L, Cu/Ni 70/30 and other CRAs on request

2. Flange Dimension

FLANGES/FORGINGS/RINGS/DISC
Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500# 1/2"-24"(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500# 1/2"-3"(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900# 22"-48"(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002 Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange PN2.5-PN100 DN10-DN4000
JIS B2220 Welding flange, lap joint flange, threaded flange PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E Plate Flange for welding/WN flange/blank Flange PN6-PN100 DN10-DN1500
Other Products Anchor/swivel/girth/lap joint/reducing/orifice
Spectacle blind/paddle blind/spacer ring/orifice plate/bleed ring
Special Products: rings/forgings/disc/shaft sleeves
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish Stock finish/spiral serrated/concentric serrated/smooth finish(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade Nickel Alloy Steel ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600),
UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276),
ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30)
Stainless Steel ASTM/ASME A/SA182 F304,304L,304H,309H,310H,316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61
Carbon steel ASTM /ASME A/SA105(N)
Low Temp Carbon Steel ASTM/ASME A/SA350 LF2
High Yield Carbon Steel ASTM/ASME A/SA694 F52, F56 F60, F65, F70
Alloy Steel ASTM/ASME A/SA182 GR F5,F9, F11,F12,F22,F91
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7
