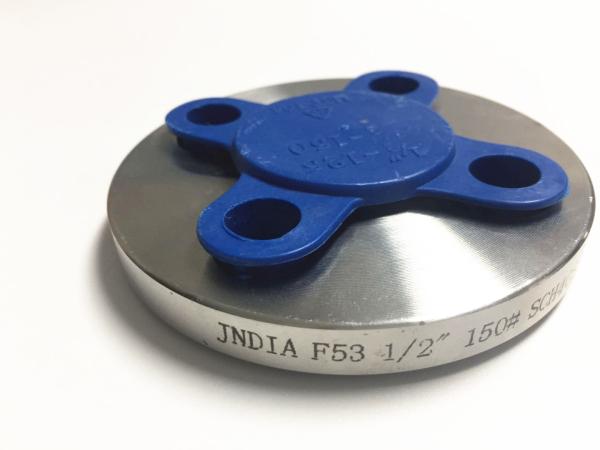

Super Duplex Steel Nickel Alloy Flanges Astm A182 F51 F55 Wn Lwn So Flange
Super Duplex Steel Nickel Alloy Flanges Astm A182 F51 F55 Wn Lwn So Flange
Super Duplex Steel Nickel Alloy Flanges Astm A182 F51 F55 Wn Lwn So Flange
Super Duplex Steel Nickel Alloy Flanges Astm A182 F51 F55 Wn Lwn So Flange
Specifications
Brand Name :
HT
Model Number :
ASTM A182 F51 F55 F60 F61 WN LWN SO Flange
Certification :
PED SGS ISO TUV
Place of Origin :
China
MOQ :
50piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 piece per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
WN LWN SO Flange
Name :
Super Duplex Steel Nickel Alloy Flanges
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description
ASTM A182 / A182M - 17

Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service

Duplex Steel Forged Flanges/Plate Flanges

Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Specification ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61.
UNS Grade UNS S31803, S32205, S2205, S32550, S32750, S32760.
Size ½” to 24″
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Products Size
ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Slip-On Flanges ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Threaded Flanges

1/8″ – 36″

Raised Face or Flat Face
ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Reducing Flanges ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Blind Flanges
ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Weld Neck Flanges ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Socket Weld Flanges
ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Plate Flanges

ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Lap Joint Flanges

Chemical Composition % of ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Steel Flanges

Ni Min Max
Cr 4.5 6.5
Mo 22.0 23.0
Mn 3.0 3.5
Si - 2.0
C - 1.0
N - 0.03
S 0.14 0.2
P - 0.02
Fe - 0.03

Mechanical Properties of ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Steel Flanges

Property Values
Ultimate Tensile Strength * 95 min Ksi (655 Mpa)
0.2 % Yield Strength * 75 min Ksi (517 Mpa)
Elongation * 17 % min
Reduction of Area * 35 % min
Charpy Impact Toughness 42 mean/ 33 min J at –18o C
Hardness 197 – 237 BHN (75 Ksi min)

ASTM A182 F44, F45, F53, F54, F55, F60, F61 Duplex Steel Flanges Dimensions

Nominal Pipe Size Flanges Inside Diameter (ID)
(inch)		 Flanges Outside Diameter (OD)
(inches)
Class 150 Class 300 Class 400 Class 600 Class 900
1/2 0.84 1.875 2.125 2.125 2.125 2.50
3/4 1.06 2.25 2.625 2.625 2.625 2.75
1 1.31 2.625 2.875 2.875 2.875 3.125
1 1/4 1.66 3 3.25 3.25 3.25 3.50
1 1/2 1.91 3.375 3.75 3.75 3.75 3.875
2 2.38 4.125 4.375 4.375 4.375 5.625
2 1/2 2.88 4.875 5.125 5.125 5.125 6.50
3 3.50 5.375 5.875 5.875 5.875 6.625
4 4.50 6.875 7.125 7.00 7.625 8.125
5 5.56 7.75 8.50 8.375 9.50 9.75
6 6.62 8.75 9.875 9.75 10.50 11.375
8 8.62 11 12.125 12.00 12.625 14.125
10 10.75 13.375 14.25 14.125 15.75 17.125
12 12.75 16.125 16.625 16.50 18.00 19.625

Super Duplex Steel Nickel Alloy Flanges Astm A182 F51 F55 Wn Lwn So Flange
