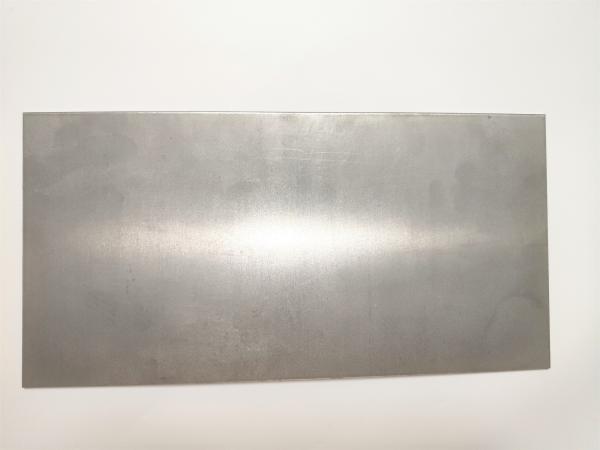

Nickel Alloy Monel 400 Plate Sheet Uns N04400 Astm B127 High Performance
Nickel Alloy Monel 400 Plate Sheet Uns N04400 Astm B127 High Performance
Nickel Alloy Monel 400 Plate Sheet Uns N04400 Astm B127 High Performance
Nickel Alloy Monel 400 Plate Sheet Uns N04400 Astm B127 High Performance
Specifications
Brand Name :
HT
Model Number :
ASTM B127 UNS N04400 Monel 400
Certification :
PED SGS ISO TUV
Place of Origin :
China
MOQ :
50kg
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 kg per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Plate Sheet Strip Coil
Name :
UNS N04400 Monel 400 plate
Length :
0-12m or as per your requirements
Width :
0-2500mm or as per your requirements
Thickness :
0.3-1200mm or as per your requirements
Description
ASTM B127 - 19

Standard Specification for Nickel-Copper Alloy Plate, Sheet, and Strip

Abstract

This specification covers rolled nickel-copper alloy (UNS N04400) plate, sheet, and strip. The matreial shall conform to the required chemical composition for nickel, copper, iron, manganese, carbon, silicon, and sulfur. The material shall conform to the required mechanical propeties such as tensile strength, yield strength, elongation, and Rockwell hardness. The material shall conform to the required grain size. Dimensions such as plate, sheet, and strip thickness, width, or diameter, length, straightness, edges, squareness, and flatness shall be determined.

What is Monel Alloy 400 Sheet & Plate

UNS N04400)plate is a copper-nickel base alloy plate. Along with these, it is traced with the amount of manganese, silicon, and carbon content. These alloy 400 plates have good ductility and facilitate superior resistance to a broad range of corrosive circumstances. These plates exhibit outstanding resistance to alkaline and acidic environment. However, it posses great thermal conductivity in annealed conditions. This grade of plates comprises high tensile strength and toughness. Furthermore, these are suitable in subzero temperature from 1000 °F. Thus these plates get good hardness by the cold working process.

The model 400 plates and sheets resist stress corrosion cracking and pitting corrosion. Therefore it shows good resistance to marine conditions. however, these are designed in the cold and hot rolled formed.

As the reputed firm in the market, Rexton Steel & Alloys provides a wide collection of Monel 400 Sheet & Plate. Therefore we manufacture and supply product to our domestic as well as global clients at cost effective rate.

Standard Specification

Specification

ASTM B127 / ASME SB127

Length

2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.

Width

1000mm / 1219mm /1250mm / 1500mm / 2000mm

Thickness

Ranging from 0.3mm to 20mm

Hardness

As per ASME A & NACE MR 175

Finish

Hot rolled plate (HR), Cold rolled sheet (CR)

Destructive and Non-Destructive Testing
  • Mechanical examining like tensile, Elongation
    and reduction of area.
  • Chemical examination
  • Radiographic Test
  • Pitting Corrosion Test
  • Positive material recognition
  • Eddy Current test
  • Buckling & Crushing test
Monel 400 Sheet & Plate Processing

Hot rolled
Cold rolled
Cutting
Forming Drilling/ Machining
Grinding
Polishing
Testing

Monel 400 Sheet & Plates Equivalent Grades :

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Chemical Composition of Monel Alloy 400 Sheet & Plate

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28 – 34 2.50 max 63.00 min

Mechanical Properties of Monel 400 Sheet & Plates

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
