Din933 Din931 Super Duplex Fasteners Astm A453 Hex Head Plug Full Partial Thread
Din933 Din931 Super Duplex Fasteners Astm A453 Hex Head Plug Full Partial Thread
Din933 Din931 Super Duplex Fasteners Astm A453 Hex Head Plug Full Partial Thread
Din933 Din931 Super Duplex Fasteners Astm A453 Hex Head Plug Full Partial Thread
Specifications
Brand Name :
HT
Model Number :
DIN933 DIN931 ASTM A453 Grade 660 A B C D hex head plug full partial thread
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 set per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Bolt, Nut, Washer, Stud bolt, U bolt
Name :
DIN933 DIN931 ASTM A453 Grade 660 A B C D hex head plug full partial thread
Size :
M6-M100
Finish :
Cold galvanizing, Zinc-Nickel, Black, Cadium plated
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

DIN933 DIN931 ASTM A453 Grade 660 A B C D hex head plug full partial thread

1. ASTM A453 Standard Specification

This specification covers five grades of bolting with twelve classes of yield strength ranging from 50 to120ksi[345 to 827 Mpa] for use in high-temperature service such as fasteners for pressure vessel and valve flanges. See Specification A962/A962M for the definition of bolting. The material requires special processing and is not intended for general purpose applications.

ASTM A453 Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
Material Grade Grade 660 A B C D

2. ASTM A453 Grade 660 Chemical Composition

Element Content, % Product Analysis Variation Over or Under, %
C 0.08max 0.01 over
Mn 2.00max 0.04
P 0.040max 0.005 over
S 0.030max 0.005 over
Si 1.00max 0.05
Ni 24.0-27.0 0.20
Cr 13.5-16.0 0.20
Mo 1.00-1.50 0.05
W ... ...
Ti 1.90-2.35 0.05
Co ... ...
Al 0.35max 0.05 over
V 0.10-0.50 0.03
B 0.001-0.010 0.0004 under to 0.001 over
Cu ... ...

ASTM A453 660 Mechanical Property Requirements

Class

Tensile Strength

min

Yield Strength

(0.2% Offset), min

Elongation in

4*Diam,

 Reduction of Area, min, % Brinell Hardness Number Approximate Rockwell Hardness, B and C
ksi Mpa ksi Mpa min, % Min Max
Grade A,B, and C 130 895 85 585 15 18 248-341 24HRC 37HRC
D 130 895 105 725 15 18 248-321 24HRC 35HRC

3. ASTM A453 660 hex bolt surface treatment

Bright

PTFE plated/coated

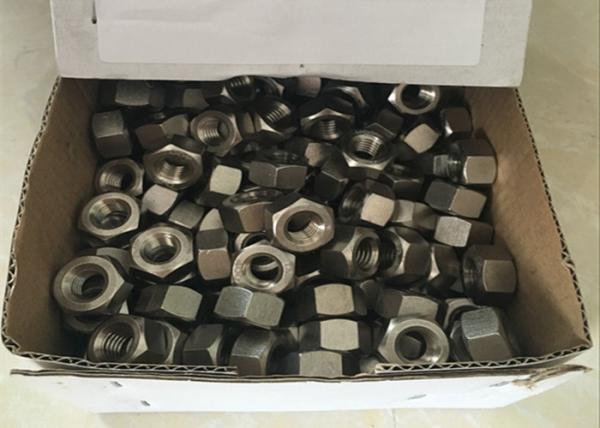

4. ASTM A453 660 common package

Din933 Din931 Super Duplex Fasteners Astm A453 Hex Head Plug Full Partial Thread
