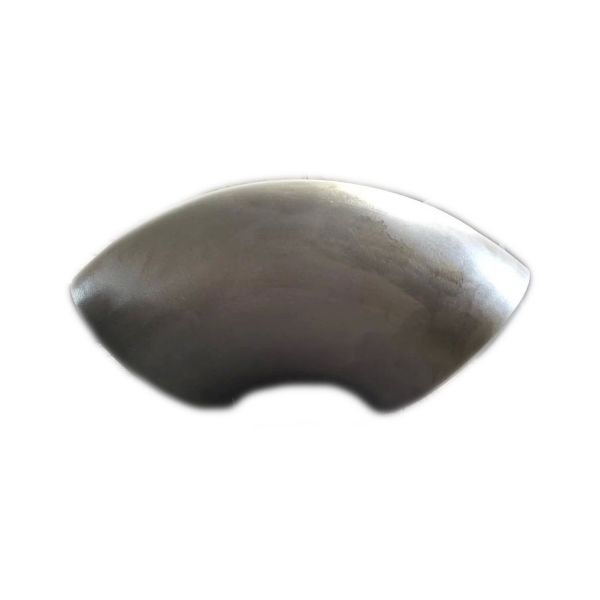

ASTM B366 WPNC tee elbow reducer stub end bend pipe
ASTM B366 WPNC tee elbow reducer stub end bend pipe
ASTM B366 WPNC tee elbow reducer stub end bend pipe
ASTM B366 WPNC tee elbow reducer stub end bend pipe
Specifications
Brand Name :
HT
Model Number :
ASTM B366
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1PC
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000Pcs per Month
Delivery Time :
3-15 work days
Packaging Details :
Seaworthy packed in bundle with steel belt/Customed
Product Name :
ASTM B366 WPNC tee elbow reducer stub end bend pipe
Standard :
ASTM B366
Material :
Stainless Steel
Prodcut :
pipe fittings
Types :
elbow tee cap reducer
Application :
oil gas chemical
Size :
1/2"-48"
Thickness :
SCH5S-SCHXXS
Description
StandardTypeSize
ASME B16.9

Long Radius Elbows,
Long Radius Reducing Elbows,
Long Radius Returns,
Short Radius Elbows,
Short Radius 180° Rerurns,
3D Elbows,
Straight Tees,
Straight Crosses,
Reducing
Outlet Tees,
Reducing Outlet Crosses,
Lap Joint Stub Ends,
Caps,Reducers

Size:1/2"-48" Wall Thickness:SCH5S-SCHXXS
ASME B16.28

Short Radius Elbows,
Short Radius 180° Returns

Size:1/2"-24" Wall Thickness:SCH5S-SCHXXS
ASME B16.49

30° 45° 60° 90° Long Radius
Short Radius Bend

Size:1/8"-12" Wall Thickness:SCH5S-SCHXXS
MSS-SP43

Long Radius Elbows,
Straight and Reducing-on-the-Outlet Tees,
Lap Joint Stub Ends,
Caps,
Long Radius 180° Returns,
Concentric Reducers,
Eccentric Reducers

Size:1/2"-24" Wall Thickness:SCH5S-SCHXXS
MSS-SP75

Long Radius Elbows,
3R Elbows,
Straight Tees,
Reducing Outlet
Tees,Caps,Reducers

Size:16"-60" Wall Thickness:SCH5S-SCHXXS
ISO, DIN, JIS

All Kind of Buttwelding Products
or As Per Client's Drawing

As the Client's Demand
Material StandardNickel Alloy

ASTM/ASME SB 366 Alloy 200/UNS N02200,
Alloy 800HT/Incoloy 800HT/UNS N08811,
Alloy 400/Monel 400/UNS N04400,
Alloy 800/Incoloy 800/UNS N08800,
Alloy C-2000/UNS N06200,
Alloy 925/Incoloy 925/UNS N09925,
Alloy C-22/UNS N06022,
Alloy 201/UNS N02201,
Alloy C-276/Hastelloy C-276/UNS N10276,
Alloy 625/UNS N06625,
Nimonic 80A/Nickel Alloy 80A/UNS N07080,
Alloy K-500/Monel K-500,
Alloy 20/UNS N08020,
Alloy 800H/Incoloy 800H/UNS N08810
,Alloy 600/Inconel 600/UNS N06600,
Alloy 31/UNS N08031,
Alloy 825/Incoloy 825/UNS N08825

Carbon SteelASTM/ASME SA 234 WPB
Low Alloy Steel

ASTM/ASME SA 234 WP91,
WP11, WP22, WP9,

Low Temp Carbon steelASTM/ASME SA420 WPL3-WPL 6
Duplex and Super Duplex Steel

ASTM/ASME SA 815 WPS31803,
WPS32205, WPS32750,
WPS32760, WPS32550

Stainless Steel

ASTM/ASME SA403 WP 304, WP 304L,
WP 304H, WP 304LN, WP 304N,
ASTM/ASME A403 WP 316, WP 316L,
WP 316H, WP 316LN, WP 316N, WP 316Ti,
ASTM/ASME A403 WP 321,
WP 321H ASTM/ASME A403 WP 347,
WP 347H, WP 904L

High Strength Ferritic Steel

ASTM/ASME SA 860 WPHY 42,
WPHY 46, WPHY 52,
WPHY 60, WPHY 65, WPHY 70

Titanium

ASTM/ASME SB337 Grade 1,
Grade 2, Grade 11, Grade 12

Cu Ni Alloy

ASTM/ASME SB 466
UNS C70600 Cu/Ni 90/10


Monel 400 UNS N04400 W.Nr2.4360

Chemical Composition

CMnSSiNiCuFe
0.30 max2.00 max0.24 max0.50 max63.0 min28.0-34.02.50 max


Mechanical Properties
Typical room temperature tensile properties of Annealed Material

Product FormConditionTensile(Ksi).2% Yield (Ksi)Elongation(%)Hardness(HRB)
Rod&BarAnnealed75-9025-5060-3560-80
Rod&BarCold-Drawn Stress Relieved84-12055-10040-2285-20HRC
PlateAnnealed70-8528-5050-3560-76
SheetAnnealed70-8530-4545-3565-80
Tube&Pipe SeamlessAnnealed70-8525-4550-3575 max*


ASTM Specifications

Pipe SmlsPipe WeldedTube SmlsTube WeldedSheet/PlateBarForgingFittingWire
B165B725B163 B127B164B564B366


ASTM B366 WPNC tee elbow reducer stub end bend pipe
