ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
Specifications
Brand Name :
HT
Model Number :
ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
Certification :
ISO TUV BV SGS,etc.
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000000000pcs/month
Delivery Time :
5~50days
Packaging Details :
plywood case,pallet,woven bag,carton,etc. as per your requirements.
Material :
Stainless Steel
Product Name :
ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
Standard :
ASTM A403
Size :
Seamless : 1/2″ – 10″, Welded : 1/2″ – 48″
Type :
Seamless / Welded / Fabricated
Application :
oil gas chemical
Description

1. ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm Order Information

DESCRIPTION ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm
QTY(Pcs) 70
Export Date 2019/09/30
Export Country Russia

ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm

2. A403 WP304 Concentric Reducer Dimensions

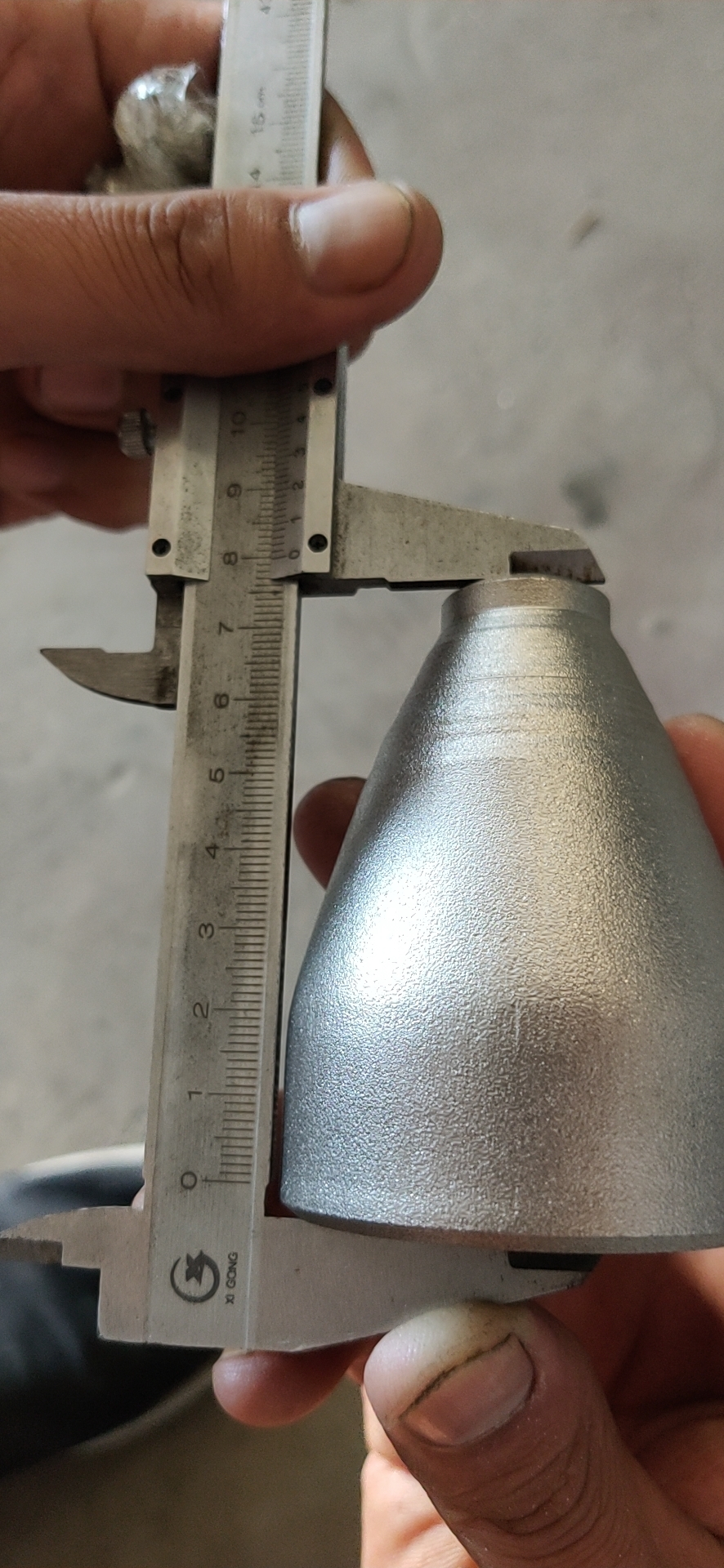

Size: 60.3mm x 21.3mm

Thickness: 2.5 x 2.2mm

Type: Seamless

End Type: BE

Standard: ASME B16.9

3. ASME B16.9 Butt Weld Reducer

Inspection

Inspecting Butt Weld Pipe Reducer according to ASME B16.9 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

4. ASTM A403 WP304 Chemical Composition

C

Mn

Si

P

S

Ni

Cr

0.08

2.0

1.0

0.045

0.03

8-11

18-20

5. ASTM A403 WP304 Mechanical Properties

Tensile Strength

Yield Strength

Elongation

515 (Mpa)

205 (Mpa)

40 (%)

6. Stainless Steel 304 Pipe Reducer Surface Treatment

All stainless steel butt weld reducer are pickling and solution treatment before delivery.

ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm

A403 WP304 Concentric Reducer Surface

7. Butt Weld Pipe Fittings Dimensions

Standard

ASME/ANSI B16.9

Diameter

DN20 to DN1500/ 3/4″ to 60”

Thickness

Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS

Product

90 Degree Elbow, 45 Degree Elbow,Equal Tee, Reducing Tee,
Concentric Reducer, Eccentric Reducer, Pipe Cap, Steel Bend, Stub End.

Stainless Steel

ASTM A403 WP304/304L, 316/316L, 321, 310S, 317,347

Duplex Steel

S 31803, S 32205, S 32550, S 32750, S32760, ASTM A182 F51

Carbon Steel

ASTM A234 WPB, A420 WPL3,WPL6, WPL9,
WPHY42, WHPY52, WPHY60, WHPY65, WPHY70.

Alloy Steel

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
