forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM
forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM
forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM
forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM
Specifications
Brand Name :
HT
Model Number :
forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 piece per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
SOP SOH SW WN LJ TR
Name :
forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM
Size :
DN10-DN1000
Finish :
galvanizing, yellow, nature
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM

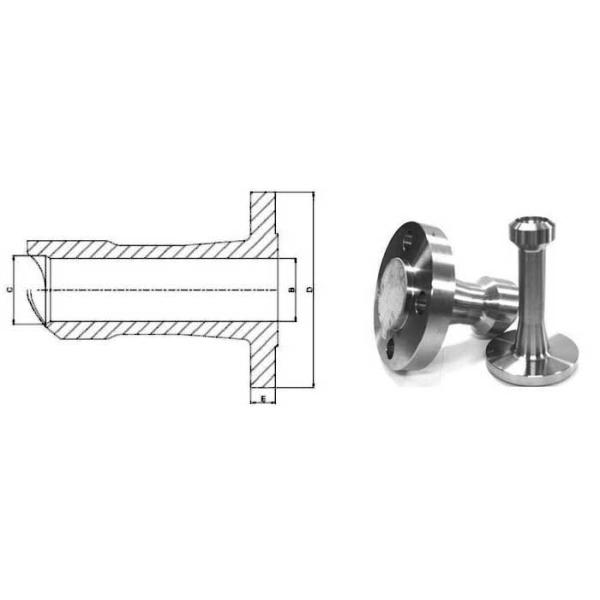

ANSI B16.5 FLANGEOLET DIMENSIONS, FLANGEOLET SIZES, FLANGEOLET WEIGHT

forged carbon steel MSS SP-97 ASTM A105 A105N flangolet L=129MM

Flageolet Dimensions Branch ½”

RATING NOMINAL PIPE SIZE FROM 3/4" TO 36"
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 0,9
Flangeolet 150# XS 13,8 17,6 88,9 11,2 0,9
160 11,7 11,7 0,9
XXS 6,4 6,4 0,9
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 1,2
Flangeolet 300# XS 13,8 17,6 95,3 14,3 1,2
160 11,7 11,7 1,2
XXS 6,4 6,4 1,2
Bore schedule B C D E Weight [kg]
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 1,3
600# XS 13,8 17,6 95,3 14,3 1,3
160 11,7 11,7 1,3
XXS 6,4 6,4 1,3
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 2,4
900# Flangeolet XS 13,8 17,6 120,6 22,4 2,4
160 11,7 11,7 2,4
XXS 6,4 6,4 2,4
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 2,4
1500# XS 13,8 17,6 120,6 22,4 2,4
160 11,7 11,7 2,4
XXS 6,4 6,4 2,4
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 3,6
2500# XS 13,8 17,6 133,4 30,2 3,6
160 11,7 11,7 3,6
XXS 6,4 6,4 3,6
