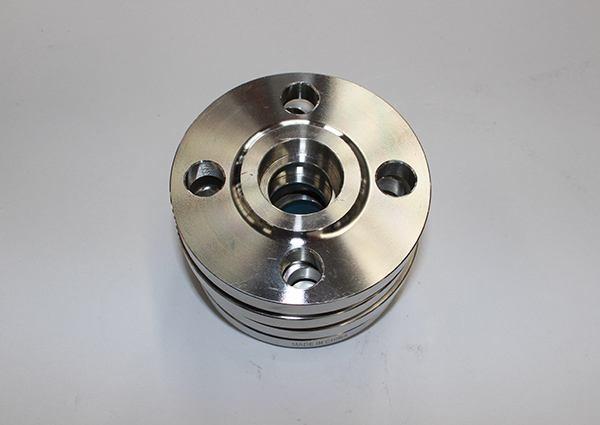

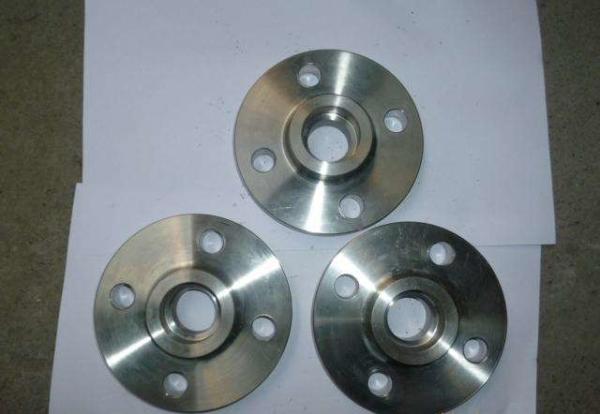

1/2 INCH to 3 INCH Socket welding ASTM B564 Nickel 200 UNS N02200 sw flange

1. What's Socket welding flange?

Socket-Weld Flanges has a female socket in which pipe is fitted. Fillet welding is done from outside on the pipe.

The socket welding flange is similar to a slip-on flange except it has a bore and a counterbore dimension.

The counterbore is slightly larger than the O.D. of the matching pipe, allowing the pipe to be inserted into the flange similar to a slip-on flange.

The diamter of the smaller bore is the same as the I.D. of the matchine pipe A restriction is built into the bottom of the bore which sets as a shoulder for the pipe to rest on.
2. Standards, Dimensions & Weight
The Socket Welding Flange is attached to the pipe by a fillet weld around the hub of the flange. An optional internal weld may be applied in high stress applications. This is eliminates any restriction in flow when using a socket welding flange.

This flange type will be welded to a pipe or fitting with a single full penetration, V weld (Buttweld).

ASTM B564 Nickel 200 UNS N02200 Sw Flange 1/2 Inch - 3 Inch Socket Welding

1. Weld Neck flange 2. Butt Weld3. Pipe or Fitting

3. Flange Surface

Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish Stock finish/spiral serrated/concentric serrated/smooth finish(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
4. Class 150 Socket Neck Flange Dimensions,other dimensions,pls contact us to get it.
Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height Socket Depth PCD Socket Bore No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H J
1/2 15 90 9.6 30 14 34.9 2 10 60.3 22.2 4 1/2 50 55 5/8 M14 0.8
3/4 20 100 11.2 38 14 42.9 2 11 69.9 27.7 4 1/2 50 65 5/8 M14 0.9
1 25 110 12.7 49 16 50.8 2 13 79.4 34.5 4 1/2 55 65 5/8 M14 0.9
1 1/4 32 115 14.3 59 19 63.5 2 14 88.9 43.2 4 1/2 55 70 5/8 M14 1.4
1 1/2 40 125 15.9 65 21 73 2 16 98.4 49.5 4 1/2 65 70 5/8 M14 1.4
2 50 150 17.5 78 24 92.1 2 17 120.7 61.9 4 5/8 70 85 3/4 M16 2.3
2 1/2 65 180 20.7 90 27 105 2 19 139.7 74.6 4 5/8 75 90 3/4 M16 3.2
3 80 190 22.3 108 29 127 2 21 152.4 90.7 4 5/8 75 90 3/4 M16 53.7

5. Material Grade Nickel 200 of Socket welding flange

Nickel 200 is a solid solution strengthened, commercially pure wrought materials with excellent mechanical properties and resistance to corrosion. It also has exceptional resistance to caustic alkalis at different concentrations and temperatures. However, the corrosion resistance is better in de-aerated acid. The alloy has low gas content and vapor pressure, and high thermal and electrical conductivities.

The following section will discuss in detail about Nickel 200 alloy.

Chemical Composition

The chemical composition Nickel 200 alloy is outlined in the following table.

Element Content (%)
Nickel, Ni ≥ 99
Iron, Fe ≤ 0.40
Manganese, Mn ≤ 0.35
Silicon, Si ≤ 0.35
Copper, Cu ≤ 0.25
Carbon, C ≤ 0.15
Sulfur, S ≤ 0.010

Physical Properties

The following table shows the physical properties of Nickel 200 alloy.

Properties Metric Imperial
Density 8.89 g/cm3 0.321 lb/in3
Melting point 1435-1446°C 2615-2635°F
