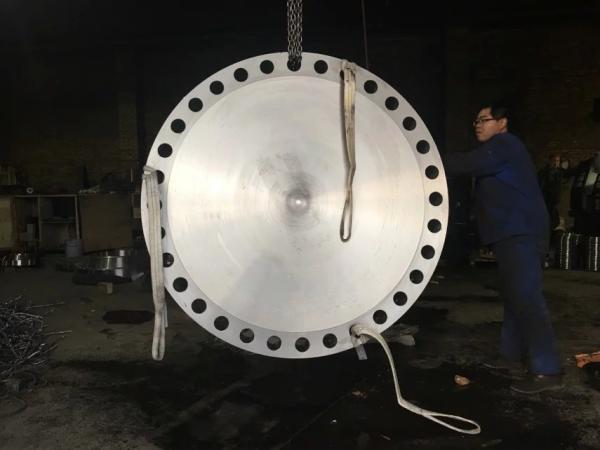

ASTM B564 Inconel 600 ASME B16.47 Serises B 75# 150# 300# 400# 600# 900# Alloy 600 Welding Neck Blind Flange
ASTM B564 Inconel 600 ASME B16.47 Serises B 75# 150# 300# 400# 600# 900# Alloy 600 Welding Neck Blind Flange
ASTM B564 Inconel 600 ASME B16.47 Serises B 75# 150# 300# 400# 600# 900# Alloy 600 Welding Neck Blind Flange
ASTM B564 Inconel 600 ASME B16.47 Serises B 75# 150# 300# 400# 600# 900# Alloy 600 Welding Neck Blind Flange
Specifications
Brand Name :
HT
Model Number :
inconel 600 Flange
Certification :
ISO BV
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS per Month
Delivery Time :
7-10 work days
Packaging Details :
WOODEN CASE PACKAGE.
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Nickel Base Alloy
Size :
1/2"-48",DN15-600
Type :
Slip on Flange,weld neck flange,Threaded flange,Blind Flange
Application :
Power generation,gas and oil pip,Pipe Tube Connection,Chemical and petrochemical,Industry
Technics :
Froged
Description

ASTM B564 inconel 600 ASME B16.47 Serises B 75# 150# 300# 400# 600# 900# Alloy 600 Welding Neck Blind Flange

1. Inconel Alloy 600 Blind Flanges,UNS N06600 Blind Flanges Manufacturer ,ASME A 564 Blind Flanges Exporter ,ANSI B 16.5 Inconel Alloy 600 Blind Flanges

2. INCONEL 600 PIPE FLANGE SPECIFICATIONS

Size ½" (15 NB) to 48" (1200NB)
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standards ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S BS4504 , BS4504, BS1560, BS10
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized


3. DIMENSION OF ASME 16.5 BLIND FLANGES

NPS ½
Class 150 300 400 600 900 1500 2500
Diameter - D 90 95 95 95 120 120 135
Height - B 9.6 12.7 14.3 14.3 22.3 22.3 30.2
11.2 14.3 20.7 20.7 28.7 28.7 36.6
Diameter - G 35.1 35.1 35.1 35.1 35.1 35.1 35.1
Diameter - K 60.3 66.7 66.7 66.7 82.6 82.6 88.9
Bolt Holes 4 4 4 4 4 4 4
Diameter - L 15.9 15.9 15.9 15.9 22.2 22.2 22.2
Stud Bolts Diameter x Length
Diameter (in) 1/2 1/2 1/2 1/2 3/4 3/4 3/4
Length (mm) 55 65 75 75 110 110 120

We exports Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Flate Face Inconel Alloy 600 (FF) Flanges, Raised Face Inconel Alloy 600 (RF) Flanges, Ring Type Joint Inconel Alloy 600 (RTJ) Flanges, ANSI B16.5 Inconel Alloy 600 UNS N06600 Blind Flanges , ANSI B16.47 Inconel Alloy 600 UNS N06600 Blind Flanges , MSS SP44 Inconel Alloy 600 UNS N06600 Blind Flanges , ANSI B16.36 Inconel Alloy 600 UNS N06600 Blind Flanges , ANSI B16.48 Inconel Alloy 600 UNS N06600 Blind Flanges, ASME SB 160 Inconel Alloy 600 UNS N06600 Blind Flanges, Inconel Alloy 600 UNS N06600 Blind Flanges , ANSI B16.48 Flate Face Flanges , ANSI B16.5 Ring Type Joint Flanges , ANSI B16.48 Raised Face Flanges, ANSI B16.5 Flate Face Flanges, ANSI B16.5 Ring Type Joint Flanges, ANSI B16.5 Raised Face Flanges.

4.Inconel 600 Flange Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

5.Inconel 600 Flange MECHANICAL PROPERTIES

Element Tensile Strength Yield Strength (0.2%Offset) Density Melting Point Elongation
Inconel 600 Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 8.47 g/cm3 1413 °C (2580 °F) 40 %

6.INCONEL 600 FLANGES are used in:

  • Fertilizers industry
  • Aerospace industry
  • Chemical industry
  • Paper industry
  • Petrochemical industry
  • Oil and Gas industry
  • Refinery industry.

ASTM B564 Inconel 600 ASME B16.47 Serises B 75# 150# 300# 400# 600# 900# Alloy 600 Welding Neck Blind Flange
