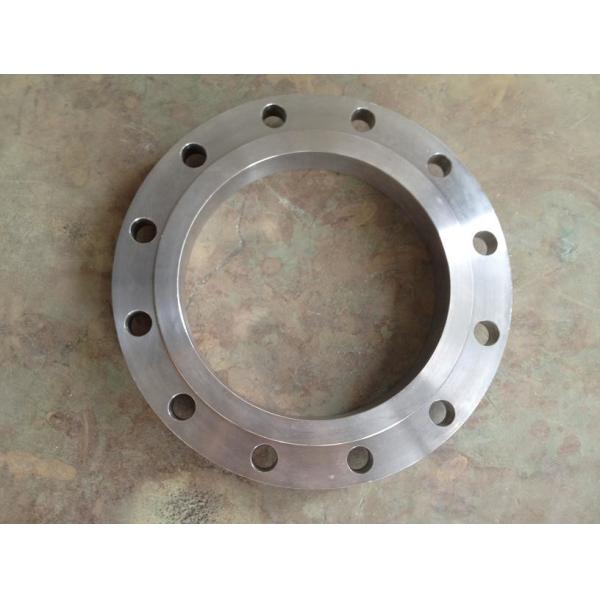

Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#
Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#
Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#
Power Generation Duplex Stainless Steel Flanges ASTM A182 F55 SO Forged Flange 150#
Specifications
Brand Name :
HT
Model Number :
Duplex Steel F55
Certification :
ISO API SGS BV,TUV,CE,ETC.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000000pcs per month
Delivery Time :
1~60days
Packaging Details :
Wooden Case, or as requirements, Standard export seaworthy package, by wooden box, steel pallet or as per customers' requirement
Standard :
ASME ANSI DIN JIS GB
Material :
Duplex Steel F55
Type :
SO Flange
Size :
1/2''~48''
Packing :
Wooden Case, or as requirements, Standard export seaworthy package, by wooden box, steel pallet or as per customers' requirement
Application :
Power generation, gas and oil pip, Pipe Tube Connection, Chemical and petrochemical, Industry
Pressure :
CL150, Class150, Class150/300/600/900/1500 etc, 150#-2500#
Process :
CNC Processing, Casting, forged
Surface treatment :
Polishing, 125 AARH, Galvanized Etc, cnc machined
Sample :
For free,Avaliable,but you need to pay for the freight charge for the samples
Description

Duplex Stainless Steel ASTM A182 F55 SO Flange Forged Flange 150#

1. Slip-On Flanges

Slip-On flanges or SO flanges are commonly lower in price than weld-neck flanges, and to this effect are a popular choice for our customers. However, customers should bear in mind that this initial cost saving may be diminished by the additional cost of the two fillet welds required for proper installation. Moreover, weld-neck flanges have a higher life expentancy than slip-on flanges under duress.

The slip-on flange is positioned so the inserted end of the pipe or fitting is set short of the flange face by the thickness of the pipe wall plus 1/8 of an inch, which thus allows for a fillet weld inside the SO flange equal without doing any damage to the flange face. The back or outside of the

slip-on flange or SO flange is also welded with a fillet weld.

2. Super Duplex Steel S32750 Pipe Flanges Specifications

Super Duplex Steel S32750 Pipe Flanges Specifications
Specifications : ASTM A182 / ASME SA182
Size : 1/8″ NB TO 24″ NB
Standards : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Grades : S32750 / S32760 / S32950

3. Super Duplex Steel S32750 / S32760 Pipe Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32750 0.030 max 1.20 max 0.80 max 0.035 max 0.020 max 24.00 – 26.00 3.00 – 5.00 6.00 – 8.00 0.24 – 0.32 58.095 min
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min

4. Super Duplex Steel S32750 / S32760 Plate Flanges Mechanical Properties

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32750 / S32760 7.8 0.281 1350 2460

5. Equivalent Grades for S32750 / S32760 Super Duplex Steel Industrial Pipe Flanges

STANDARD WERKSTOFF NR. UNS
Super Duplex 2507 1.4410 S32750 / S32760

6. Super Duplex Steel S32750 / S32760 Flanges Price List

S32750 Flanges
US $0.5-1000 / Piece (FOB Price)

Super Duplex Steel S32760 Pipe Flanges
US $300-500 / Ton (FOB Price)

Super Duplex Steel S32750 Weld Neck Flanges
US $1-900 / Piece (FOB Price)

ASTM A182 S32750 duplex stainless steel plate flanges
US $0.5-1000 / Piece (FOB Price)

S32760 Super Duplex Steel Pipe Flanges
US $1-300 / Piece (FOB Price)

7. Material Testing:
We at HT Pipe Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
