Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges
Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges
Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges
Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges
Specifications
Brand Name :
HT
Model Number :
duplex stainless steel 316L bleed ring drip ring test ring as per the drawing
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Flange, Disc, Foring, Shaft Sleeves
Name :
duplex stainless steel 316L bleed ring drip ring test ring as per the drawing
Size :
1/2"-60"
Class :
150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Surface :
oil rusted, yellow
Material :
Nickel alloy/stainless steel/duplex stainless
Description

duplex stainless steel 316L bleed ring drip ring test ring as per the drawing

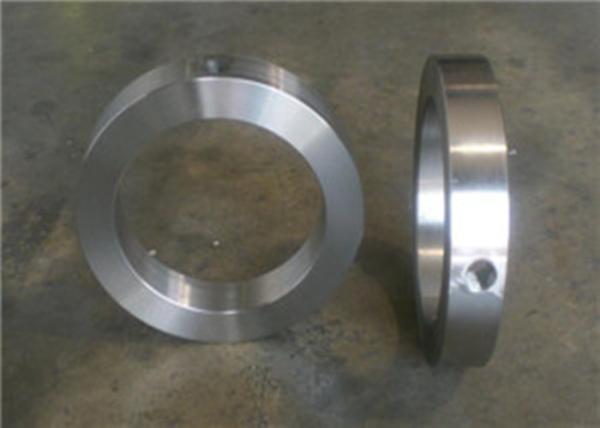

1. Duplex stainless steel 316L bleed ring definition

A bleed ring, vent ring, or drip ring can provide a beneficial way of draining piping, taking samples, attaching instruments or even bleeding of a valve. They can also be used with a valve and/or blind flange, which allows you to reduce and dispose of the pressure for your valve before you remove the flange.

HT pipe Bleed Rings are designed to withstand any pressure – temperature combination that an ASME flange will withstand.
• 1/2” or 3/4” , threaded or socket-weld taps are standard. Multiple taps can be provided but must be orientated by customer. Thickness of ring may be affected if larger taps are required.


• One coat of standard shop primer will be applied to all carbon steel rings unless specified differently.
• Standard materials are: SA516 Gr.70 • 304 Stainless Steel • 316 Stainless Steel

2. Duplex stainless steel 316L bleed ring dimension

Pipe Size

(NPS)

 A B
150 300 600 900 1500 2500
1/2 - - - - - - -
3/4 - - - - - - -
1 2 1/2 2 3/4 2 3/4 3 3 3 1/4 1 1/8
1 1/4 3 2 7/8 3 1/8 3 1/8 3 3/8 - - 1 1/2
1 1/2 3 1/4 3 5/8 3 5/8 3 3/4 3 3/4 4 1/2 1 5/8
2 4 4 1/4 4 1/4 5 1/2 5 1/2 5 5/8 2 1/8
2 1/2 4 3/4 5 5 6 3/8 - 6 1/2 2 1/2
3 5 1/4 5 3/4 5 3/4 6 1/2 6 3/4 7 5/8 3 1/8
3 1/2 6 1/4 6 3/8 6 1/4 - - - 3 5/8
4 6 3/4 7 7 1/2 8 8 1/8 9 1/8 4 1/8
5 7 5/8 8 3/8 9 3/8 9 5/8 9 7/8 10 7/8 5 1/8
6 8 5/8 9 3/4 10 3/8 11 1/4 11 12 3/8 6 1/8
8 10 7/8 12 12 1/2 14 13 3/4 15 1/8 8
10 13 1/4 14 1/8 15 5/8 17 17 18 5/8 10 1/8
12 16 16 1/2 17 3/4 19 1/2 20 3/8 21 1/2 12
14 17 5/8 19 19 1/4 20 3/8 22 5/8 - 13 1/4
16 15 1/4 21 1/8 22 22 3/8 25 1/8 - 15 1/4
18 21 1/2 23 3/8 24 25 27 5/8 - 17 1/4
20 23 3/4 25 5/8 26 3/4 27 3/8 29 5/8 - 19 1/4
22 - - - - - - -
24 28 1/8 30 3/8 31 32 7/8 35 3/8 - 23 1/4

3. 2 drawings for RTJ RF sealing face for duplex stainless steel flange 316L

Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges

Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges

4. Duplex stainless steel flange 316L bleed ring we have exported to Oman, USA, Korea and so on

Duplex Stainless Steel 316L Bleed Ring Drip Test Ring Forged Steel Flanges
