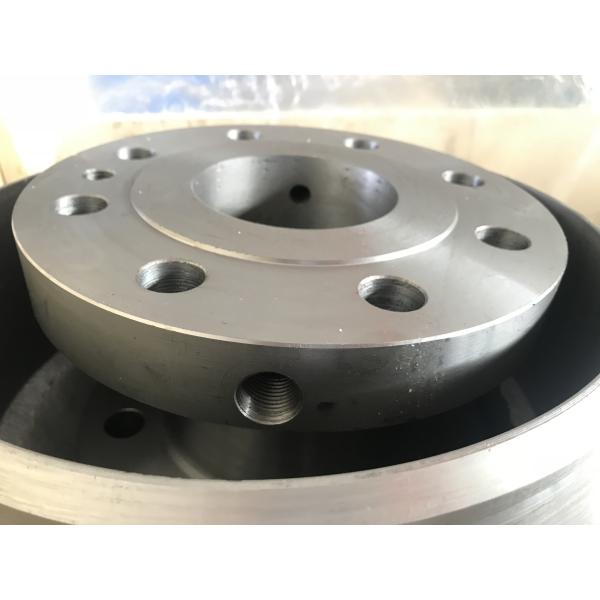

Corrosion Resistance 347H Duplex Steel Flanges DN10 - DN1500 150# - 2500#
Corrosion Resistance 347H Duplex Steel Flanges DN10 - DN1500 150# - 2500#
Specifications
Brand Name :
HT
Model Number :
Stainless Steel 347H
Certification :
ISO SGS BV TUV CE,etc.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
1~15days
Packaging Details :
wooden case, wooden pallet
Type :
SO BL SW TH LJ WN Flange
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Stainless Steel 347H
Size :
DN 10-DN 1500
Description

150#-2500# Stainless Steel 347H Duplex Stainless Steel Flange

SS 347 / 347H Flanges are fabricated from austenitic stainless steel alloy including columbium and chromium. Therefore the presence of columbium helps in preventing resisting intergranular corrosion and carbide precipitation. Furthermore, it also includes tantalum content that exhibits higher creep and stress rupture. These flanges are often known from UNS S34709. These flanges comprise great corrosion resistance, smooth surface finish, and sturdy construction. These flanges have excellent weldability and formability qualities. However, these get non-magnetic in the annealed situation and can be hardened through cold working process.

Stainless Steel 347/347H Flanges Specification

Specifications : ASTM A182 / ASME SA182

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, Flate Face flanges, ASME B16.5 flanges.

Stainless Steel 347/347H Flanges Chemical Properties
Grade C Mn Si P S Cr N Ni Ti
SS 347 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 - 12.00 5(C+N) – 0.70 max
SS 347H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 - 12.00 4(C+N) – 0.70 max

Stainless Steel 347/347H Flanges Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
