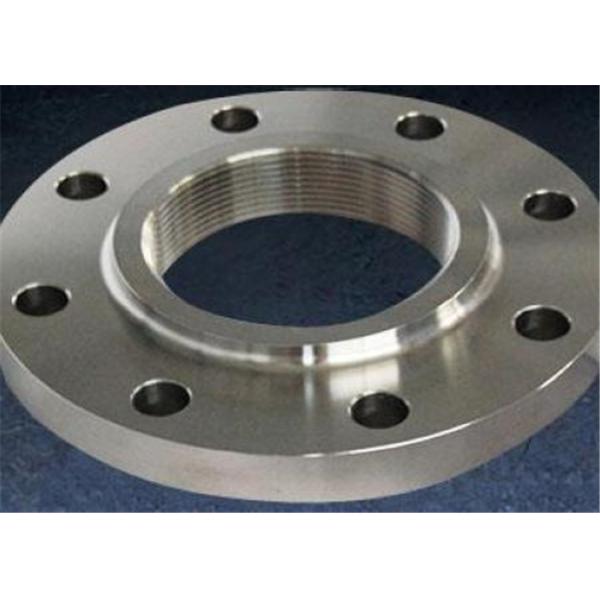

Duplex Stainless Steel 347H Bleed Ring / Drip Ring Pipe Flange DN10 - DN1500
Duplex Stainless Steel 347H Bleed Ring / Drip Ring Pipe Flange DN10 - DN1500
Duplex Stainless Steel 347H Bleed Ring / Drip Ring Pipe Flange DN10 - DN1500
Duplex Stainless Steel 347H Bleed Ring / Drip Ring Pipe Flange DN10 - DN1500
Specifications
Brand Name :
HT
Model Number :
Stainless Steel 347H
Certification :
ISO SGS BV TUV CE,etc.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
1~15days
Packaging Details :
wooden case, wooden pallet
Type :
SO BL SW TH LJ WN Flange
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Stainless Steel 347H
Size :
DN 10-DN 1500
Description

Duplex Stainless Steel Flanges 347H Bleed Ring Drip Ring Test Ring

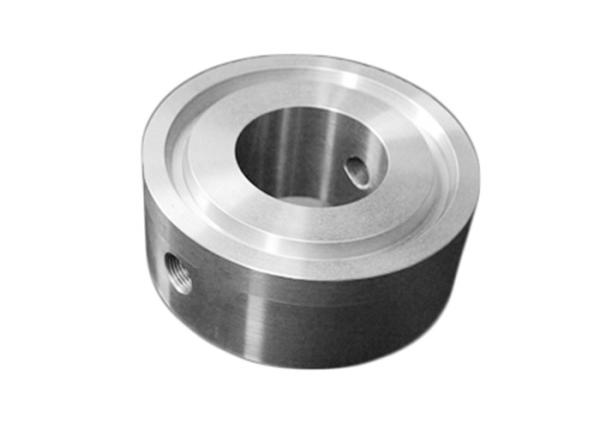

What is Bleed Ring ?

A bleed ring is also known as a drip ring, bleeder ring, drip ring, or a test insert. A bleed ring is in a shape of a ring designed to fit between pipe with standard flanges. using most material. The bleed ring (Drip Ring, Test Insert) can come in any material or size, and is designed for connecting valves and instruments. The face of the bleed ring (Drip Ring, Test Insert) can be manufactured to match with any flange type.

The standard sizes for a bleed ring are 1" to 24" and, ANSI ratings from 150# through 1500#. Standard material is carbon steel. Dannenbaum LLC can supply any size or material for the bleed rings (Drip Rings, Test Insert). Bleed Rings can provide a beneficial way of draining piping, taking samples, attaching instruments or even bleeding of a valve

2.Surface Type of Bleed Ring

Raised face, ring-type joint male or female- octagonal or oval

3.Standards of Bleed Ring

ASME B16.5-2013

 ASME B16.47-2011 MSS SP-44-2010
EN 1092-1-2007 EN 1759-1-2004 ISO 7005-1-1992
GB/T 9112-2010 GB/T 9123-2010 AS 2129-2000
HG/T 20592-2009 HG/T 20615-2009 HG/T 20623-2009
SH/T 3406-2013 GOST- AFNOR- BS- DIN

4.Bleed Ring Dimensions

Bleed Ring Dimensions
Line Size O.D. I.D.
150# 300# 600# 900# 1500# 2500#
1/2 1 3/4 2 2 2 3/8 2 3/8 2 5/8 5/8
3/4 2 1/8 2 1/2 2 1/2 2 5/8 2 5/8 2 7/8 7/8
1 2 1/2 2 3/4 2 3/4 3 3 1/8 3 3/8 1 1/8
1 1/2 3 1/4 3 5/8 3 5/8 3 3/4 3 7/8 4 5/8 1 5/8
2 4 4 1/4 4 1/4 5 1/2 5 5/8 5 3/4 2 1/8
2 1/2 4 3/4 5 5 6 3/8 6 1/2 6 5/8 2 1/2
3 5 1/4 5 3/4 5 3/4 6 1/2 6 7/8 7 3/4 3 1/8
4 6 3/4 7 7 1/2 8 8 1/4 9 1/4 4 1/8
6 8 5/8 9 3/4 10 3/8 11 1/4 11 1/8 12 1/8 6 1/8
8 10 7/8 12 12 1/2 14 13 7/8 15 1/4 8
10 13 1/4 14 1/8 15 5/8 17 17 1/8 18 3/4 10 1/8
12 16 16 1/2 17 3/4 19 3/8 20 1/2 21 5/8 12
14 17 5/8 19 19 1/8 20 1/4 22 1/2 - 14
