Socket Weld Duplex Steel Flanges ASTM A182 F55 1/2 - 24 B16.5 For Power Generation
Socket Weld Duplex Steel Flanges ASTM A182 F55 1/2 - 24 B16.5 For Power Generation
Socket Weld Duplex Steel Flanges ASTM A182 F55 1/2 - 24 B16.5 For Power Generation
Socket Weld Duplex Steel Flanges ASTM A182 F55 1/2 - 24 B16.5 For Power Generation
Specifications
Brand Name :
HT
Model Number :
Duplex Steel F55
Certification :
ISO SGS BV TUV CE,etc.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000000pcs per month
Delivery Time :
1~15days
Packaging Details :
plywood case,pallet,etc.
Type :
SW Flange
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Duplex Steel F55
Size :
1/2"-24"
Pressure :
Class150/300/600/900/1500 etc
Process :
CNC Processing,Casting,forged
Application :
Power generation,gas and oil pip,Pipe Tube Connection,Chemical and petrochemical,Industry
Sample :
For free,Avaliable,but you need to pay for the freight charge for the samples
Description

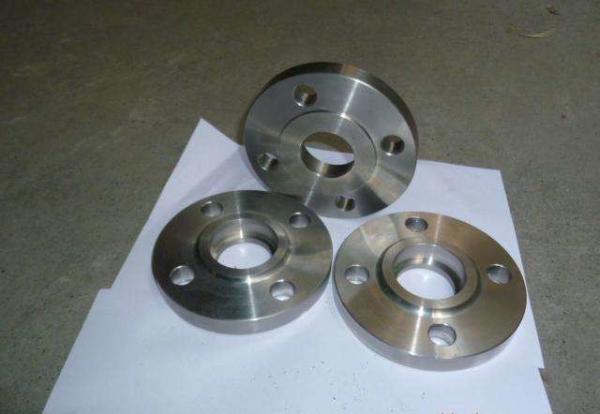

Socket Weld Duplex Steel Flanges ASTM A182 F55 1/2" - 24" B16.5

1. The socket weld flange, abbreviated as SWF, is similar to a slip-on flange, except only one fillet weld is made to the flange and pipe. Pipe is welded to socket weld flanges by inserting the pipe into the socket and backing the piping out between 1/16” and 1/8”. This is to prevent the expanding pipe on the inner side of the weld from expanding when headed and cracking the weld on the fitting.

Socket Weld Duplex Steel Flanges ASTM A182 F55 1/2

2. This flange is available in Flat Face, Raised Face and RTJ type connections. Socket Flanges that are compliant with ASME B16.5 are only available in the following combinations:

  • ANSI 150 – ½ to 3
  • ANSI 300 – ½ to 3
  • ANSI 600 – ½ to 3
  • ANSI 900 – ½ to 3
  • ANSI 1500 – ½ to 3 ½

3. Standard Specification For Socket weld Flanges

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

4. ASME B16.5 Raised Faced Socket weld Flanges Available Types
Socket weld Raised Face Flange Raised Faced Socket weld Flanges
ANSI B16.5 Socket weld Flanges Socket weld Flange Dimensions
ASME B16.5 SWRF Flanges ANSI B16.5 Class 150 Socket weld Flanges
Stainless Steel Socket weld Flanges Suppliers SS Socket weld Flange
Socket weld Plate Flanges Dealer ASME B16.47 Series A and B SWRF Flanges Exporter
ANSI B16.5 class 150 SWRF Flange Stockholder ANSI 150 Socket weld Flange Distributors
Carbon Steel Socket weld Flange High Quality SWRF Flanges Manufacturer
ASTM A182 Stainless Steel SWRF Flange Duplex Steel Socket weld Flange
Super Duplex Steel Socket weld Forged Flange Copper Nickel Socket weld Pipe Flanges
High Nickel Alloy SWRF Flanges Hastelloy Flat Faced Socket weld Flanges Stockist
Titanium ASME B16.47 Series A and B SWRF Flanges Inconel Socket weld Flanges

5. ASME B16.5 ASME B16.5 Flanges Available Types
ASME B16.5 Flange ASME B16.5 Face Flanges
ANSI B16.5 ASME B16.5 Flanges ASME B16.5 Flange Dimensions
ASME B16.5 ASME B16.5 Flanges ANSI B16.5 Class 150 ASME B16.5 Flanges
Stainless Steel ASME B16.5 Flanges Suppliers SS ASME B16.5 Flange
ASME B16.5 Flanges Dealer ASME B16.47 Series A and B ASME B16.5 Flanges Exporter
ANSI B16.5 class 150 ASME B16.5 Flange Stockholder ANSI 150 ASME B16.5 Flange Distributors
Carbon Steel ASME B16.5 Flange High Quality ASME B16.5 Flanges Manufacturer
ASTM A182 Stainless Steel ASME B16.5 Flange Duplex Steel ASME B16.5 Flange
Super Duplex Steel ASME B16.5 Flange Copper Nickel ASME B16.5 Pipe Flanges
High Nickel Alloy ASME B16.5 Flanges Hastelloy ASME B16.5 Flanges Stockist
Titanium ASME B16.47 Series A and B ASME B16.5 Flanges Inconel ASME B16.5 Flanges

6. ASTM A182 F55 Flanges Production Range
Specification ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61.
UNS Grade UNS S31803, S32205, S2205, S32550, S32750, S32760.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size ½” to 24?
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
7. ASTM A182 F55 Flanges Chemical Composition
Chemical Composition % Of ASTM A182 F55 Flanges
Chemical Composition Limits
Weight% C Mn P S Si Cr Ni Mo N W
Super Duplex F55 0.03 max 1.00 max 0.03 max 0.01 max 1 max 24-26 4.5-6.5 3-4 0.25 0.08-0.20

Mechanical Properties Of ASTM A182 F55 Flanges
Alloy Tensile Strength N/mm² Yield Strength 0.2% N/mm² Elongation Hardness HB
Super Duplex F55 860 720 min 16 min 270 max
