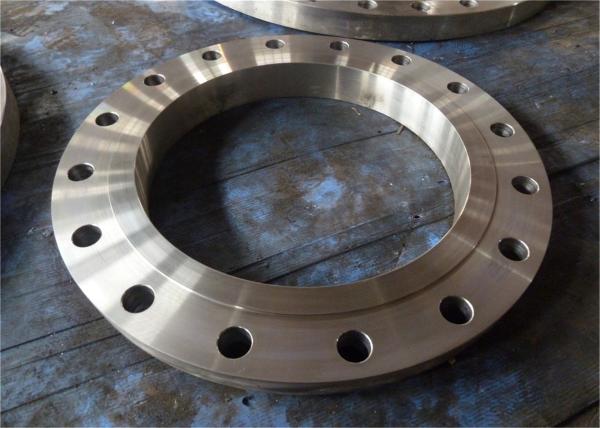

EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
Specifications
Brand Name :
HT
Model Number :
inconel 825
Certification :
ISO BV SGS
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 PC PER MONTH
Delivery Time :
5-10 WORK DAYS
Packaging Details :
WOODEN CASE PACKAGE
Product name :
EN1092-1 ASTM B564 inconel 825 alloy incoloy 825 UNS N08825 DIN 2.4858 Welding/loose plate flange
Standard :
DIN, ANSI, ASME, JIS, GB
Type :
Slip on Flange, weld neck flange, Threaded flange, Integral Flange, Blind Flange
Material :
Nickel Base Alloy
Size :
1/2"-48"
Packing :
by wooden box, steel pallet or as per customers' requirement
Color :
bright silver, Nature, silver or as customer's requests., Black, Yellow/Silver
Pressure :
150#-2500#
Description

EN1092-1 ASTM B564 inconel 825 alloy incoloy 825 UNS N08825 DIN 2.4858 Welding/loose plate flange

1. DIN EN 1092-1 Flange Types

01 (Plate [slip-on] flanges for welding) 13 (Hubbed threaded flanges)
02 (Loose plate flanges with weld-on plate collar) 21 (Integral flanges)
04 (Loose plate flanges with weld-neck collar) 32 (Weld-on plate collars)
05 (Blank [blind] flanges) 33 (Lapped pipe ends)
11 (Weld-neck flanges) 34 (Weld-neck collars)
12 (Hubbed slip-on flanges for welding) 36 (Pressed collar with long neck)
37 (Pressed collar)

2. EN 1092-1 Incoloy 825 Flange Specifications

Type : Inconel 825 Flange Standard EN 1092-1
Size : ½” (15 NB) to 48″ (1200NB) / DN10-DN2000
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Pressure : PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : EN 1092, ANSI B16.5, ANSI B16.47, Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

3. ASTM B564 Incoloy 825 Flanges Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Incoloy 825 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

4. ASTM B564 Incoloy 825 Flanges mechanical properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 825 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %

5. Equivalent Grades for Incoloy 825 Flanges

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 825 2.4816 N06825 NCF 825 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe

6. Flange facing types according to DIN EN 1092-1

Type A: flat face Type D: groove face Type G: O Ring recess
Type B: raised face Type E: spigot Type H: O Ring groove
Type C: tongue face Type F: recess

7. Types and Drawings of EN 1092-1 Incoloy 825 Flange

EN1092-1 ASTM B564 Welding / Loose Plate Flange Inconel 825 Alloy UNS N08825 DIN 2.4858
