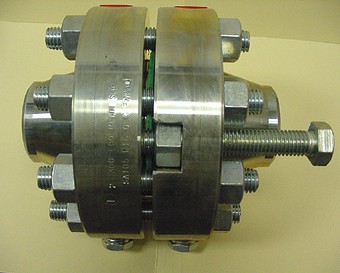

Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
Specifications
Brand Name :
HT
Model Number :
Alloy Steel 31
Certification :
ISO SGS BV TUV CE,etc.
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000000pcs per month
Delivery Time :
1~15days
Packaging Details :
plywood case,pallet,etc.
Type :
WN SO Orific Flange
Standard :
DIN,ANSI,ASME,JIS,GB
Material :
Alloy 31
Size :
1"-4"
Pressure :
300#-2500#
Process :
CNC Processing,Casting,forged
Application :
Power generation,gas and oil pip,Pipe Tube Connection,Chemical and petrochemical,Industry
Sample :
For free,Avaliable,but you need to pay for the freight charge for the samples
Description

ASTM B564 UNS N08031 Alloy 31 WN SO Orifice Flange ASME B16.36

1. Orifice Flanges are used with orifice meters for the purpose of measuring the flow rate of either liquids or gases in the respective pipeline. They are, for all intensive purposes, the same as weld neck and slip-on flanges with extra machining. Orifice flanges may be provided in one of three types of flanges: Welding Neck, Slip-On and Threaded.

2. Specification of Orifice Flange HT can Provide

Size : ½" (15 NB) to 48" (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25,
40,64,100,160 ETC. available with NACE MR 01-75
Material : Aluminum, Brass, Bronze, Cast iron, Stainless Steel, Carbon Steel, Alloy, Nickel, Copper etc.
Standard : ANSI : ANSI B16.47, MSS SP44, ASME B16.36, ANSI B16.48
Specialize : As per drawing
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Type of Flanges : Orifice Flanges, Weld Neck Flanges - WNRF, Socket Weld Flanges - SWRF, Slip On Raise Face -
SORF, Blind Raise Face - BLRF, Spectacle Blind, Ring Joint, Large Dia Flanges, Girth Flange, Lap Joint
Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing.
Stainless Steel Orifice Flanges : ASTM A 182, A 240, F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Alloy Steel Orifice Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Carbon Steel Orifice Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70
Duplex Steel Orifice Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

3. ASME B16.36 covers Dimensions and dimensional tolerances from orifice flanges (similar to those covered in ASME B16.5) that have orifice pressure differential connections. Coverage is limited to the following flanges:

.Welding Neck Classes 300, 400, 600, 900, 1500, 2500

.Slip On Class 300

.Threaded Class 300

4. Drawing of Orifice Flanges

Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031

5. More Information about Alloy 31

Chemical Composition

C Si Mn P S Cr Cu Mo N Ni Fe
Alloy 31 Min % 26,0 1,0 6,0 0,15 30,0 balance
Max % 0,015 0,3 2,0 0,20 0,010 28,0 1,4 7,0 0,25 32,0 balance
ASTM B626 (S08031) (alloy 31)
1.4562 Min % 26,00 1,00 6,00 0,15 30,00
Max % 0,015 0,30 2,00 0,02 0,10 28,00 1,40 7,00 0,25 32,00
(Key to steel 2010)
N 08031 Min % 26,0 1,0 6,0 0,15 30,0 balance
Max % 0,015 0,3 2,00 0,,20 0,010 28,0 1,4 7,0 0,25 32,0 balance
ASTM B 626 (N08031)

Physical properties

Property Value
Density: kg/dm3 8,0
Hardness: HB <220
Permeability in 68°F 1,001

Power Generation Alloy 31 WN SO Orifice Flange ASME B16.36 ASTM B564 UNS N08031
