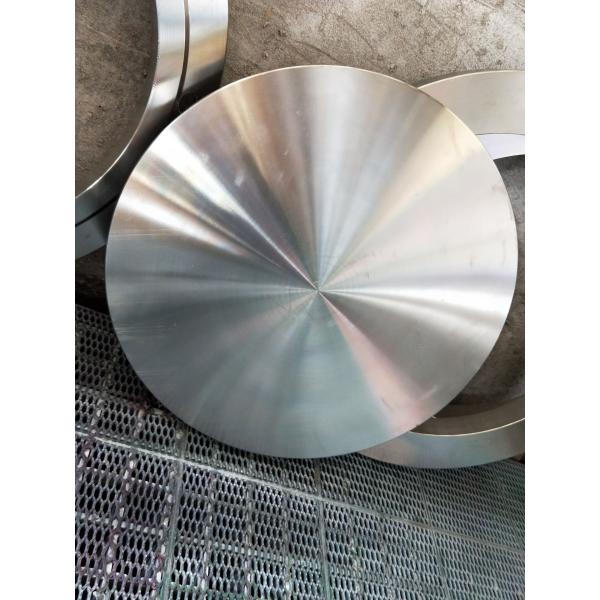

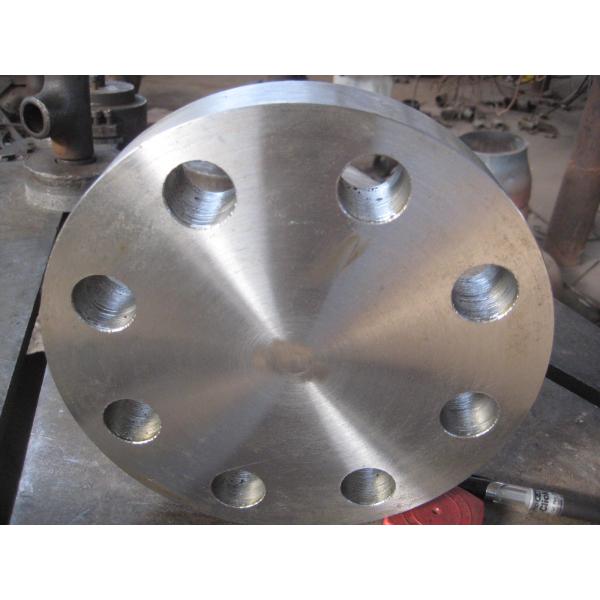

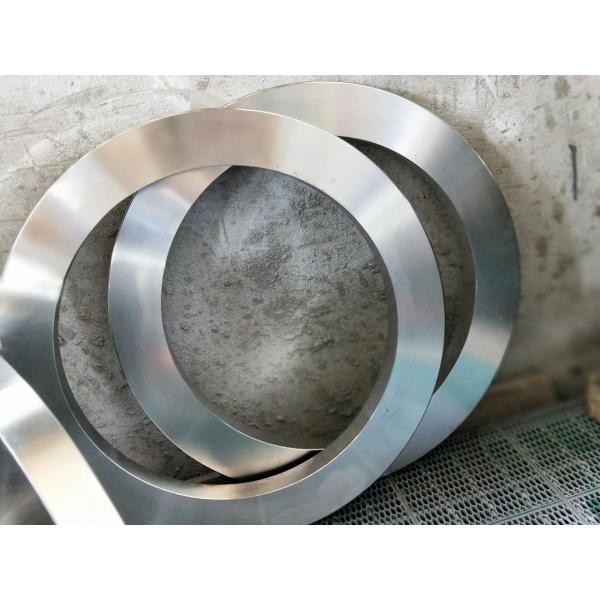

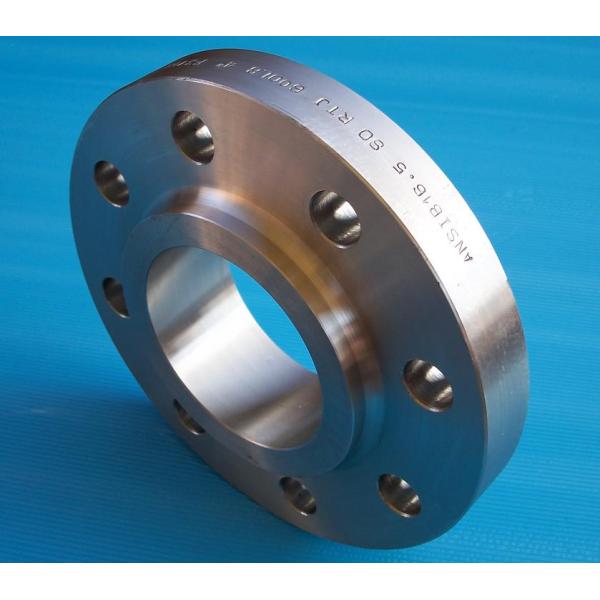

Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Specifications
Brand Name :
HT
Model Number :
inconel 926
Certification :
ISO BV SGS
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 PC PER MONTH
Delivery Time :
5-10 WORK DAYS
Packaging Details :
WOODEN CASE PACKAGE
Product name :
inconel 926 alloy 926 N08926 1.4529 SO BL SW TH LJ WN Welding Flange
Standard :
DIN, ANSI, ASME, JIS, GB
Type :
Slip on Flange, weld neck flange, Threaded flange, Integral Flange, Blind Flange
Material :
Nickel Base Alloy
Size :
1/2"-48"
Packing :
by wooden box, steel pallet or as per customers' requirement
Color :
bright silver, Nature, silver or as customer's requests., Black, Yellow/Silver
Pressure :
150#-2500#
Description

N08926 inconel 926 1.4529 Forged Disc Ring SO Blind Threaded with neck flange

1. Inconel 926 Flanges

Inconel 926 Disc Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Inconel 926 Ring Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Inconel 926 SO flange Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Inconel 926 Blind flange Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529
Inconel 926 Threaded with neck flange Forged Disc Ring SO Blind Flange Threaded With Neck N08926 Inconel 926 1.4529

2. Incoloy 926 Chemical composition:

Alloy % Ni Cr Fe C Mn Si Cu Mo N Ti P S
926 Min. 24 19 Balance 0.5 6.0 0.15 0.6
Max. 26 21 0.02 2 0.5 1.5 7.0 0.25 1.2 0.03 0.01


3. Incoloy 926 Physical properties:

Density 8.1 g/cm3
Melting point 1320-1390 ℃


4. Incoloy 926 Alloy Minimum Mechanical properties in the room temperature:

Alloy state

Tensile strength

Rm N/mm2

Yield strength

RP0.2N/mm2

Elongation

A5 %
926 650 295 35

5. Testings (Destructive, Non Destructive):

*Positive Material Identification - PMI Testing

*Chemical Analysis - Spectro Analysis

*Mechanical Testing Such as Tensile, Elongation

*Flaring Test

*Flattening Test

*Hydrostatic Test

*Hydrogen-Induced Cracking (HIC) Test, NACE TM0284

*Micro Test

*Macro Test

*Hardness Test

*Pitting Resistance Test

*Intergranular Corrosion (IGC) Test

*Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177

*Radiography Test

*Dye Penetrant Test (DP Test)

*Ultra Sonic Test (UT)

*Eddy Current Testing

*Impact Test

*Bend Test
